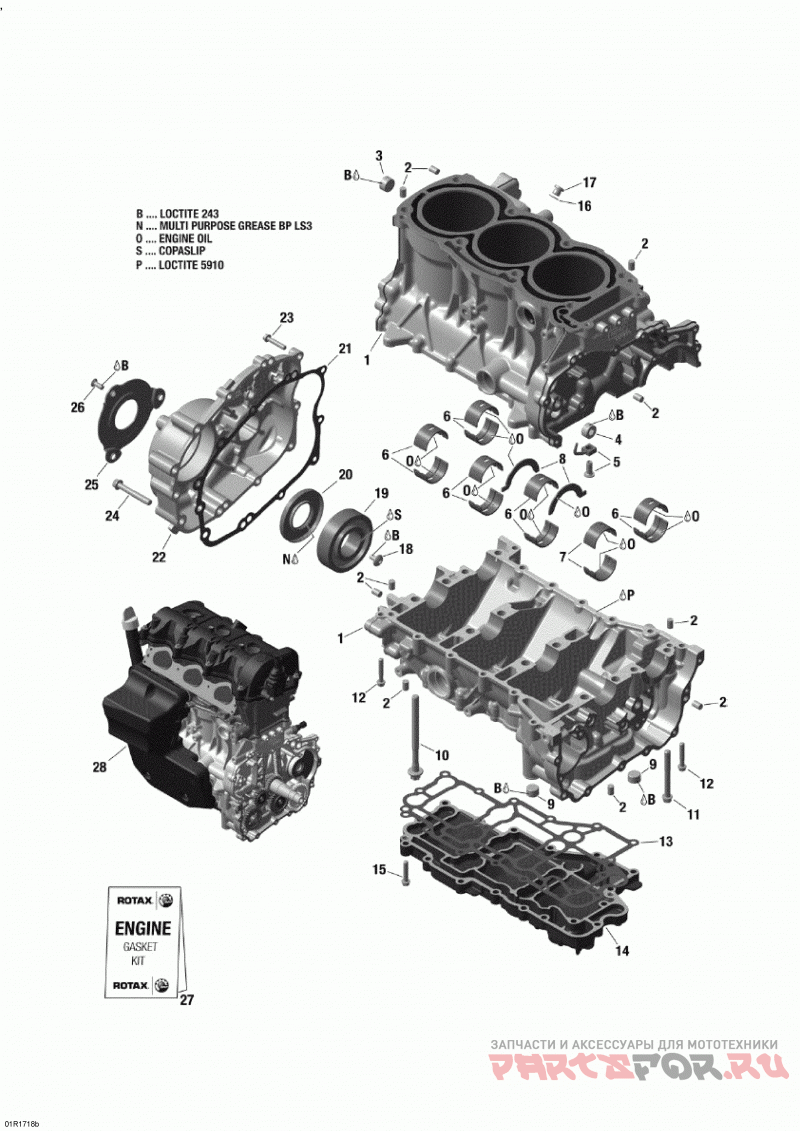

01- Engine Block - 1200 4-TEC

Lynx (Bombardier) 69 Ranger Alpine

Lynx (Bombardier)
#oem кодцена
1
420891887
Engine Block Ass'y. Includes 1 To 7
2
420632010
Pin 8 X 12
3
420840415
Plug Screw M18 X 1.5. Tightening Torque 20 Nm
4
420240170
Plug Screw M18 X 1.5. Tightening Torque 20 Nm
5
420956774
Oil Spray Nozzle. Tightening Torque 19 Nm
6
420933852
Вкладыш
7
420933862
Вкладыш
8
420933140
Ring Half
9
420240178
Plug Screw M16 X 1.5. Tightening Torque 16 Nm
10
420940945
Torx Screw M9 X 113. Tightening Torque 20 Nm +120°
11
420840211
Flanged Torx Screw M8 X 70. Tightening Torque 25 Nm
12
420440274
Flanged Torx Screw M6 X 35. Tightening Torque 11 Nm
13
420430770
Gasket. Included In Gasket Kit
14
420611822
Oil Sump Cover
15
420440649
Flanged Torx Screw M6 X 30. Tightening Torque 11 Nm
16
420230150
Oil Seal. Included In Gasket Kit
17
420641733
Plug Screw M10 X 1. Tightening Torque 12 Nm
18
420241535
Hex. Screw M6 X 13. Tightening Torque 11 Nm
19
420432125
Подшипник
20
420431402
Oil Seal. Included In Gasket Kit
21
420430760
Gasket. Included In Gasket Kit
22
420611845
Pto Cover
23
420440647
Flanged Torx Screw M6 X 30. Tightening Torque 11 Nm
24
420641213
Flanged Torx Screw M8 X 55. Tightening Torque 25 Nm
25
420910240
Oil Seal Cover
26
420440906
Countersunk Screw M6 X 16. Tightening Torque 11 Nm
27
420893054
Engine Gasket Kit
28
300120303
Long Block 1203 4-tec
B
XXX
Loctite 243
N
XXX
Dow Corning 111
O
XXX
Engine Oil
S
XXX
Loctite 8151 (antiseize)
P
XXX
Loctite 5910
