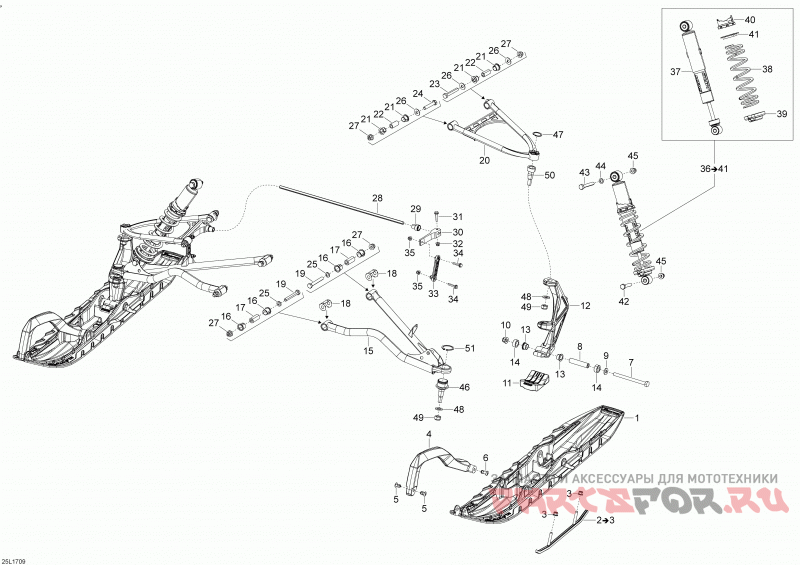

Передняя подвеска и лыжи

Lynx (Bombardier) 49 Ranger STD

Lynx (Bombardier)
#oem кодцена
1
505073834
Black Blade Ds Ski
2
860201044
Ski Runner Kit. Includes 2 To 3
3
233281414
Elastic Flange Nut M8
4
505073651
Orange Handle
5
505071812
Седло
6
505072133
Седло
7
230003044
Hex. Cap Screw M10 X 130
8
506133300
Ski Axle
9
732900049
Шайба
10
233201414
Elastic Flange Nut M10
11
505072594
Rubber Damper
12
505073443
Lh Ski Leg
12
505073444
Rh Ski Leg
13
505072690
Втулка
14
505072807
Проставка
15
505073925
Rh Lower Arm. Model Ss38-40
15
505073955
Rh Lower Arm. Model Ss35-37
15
505073924
Lh Lower Arm. Model Ss38-40
15
505073954
Lh Lower Arm. Model Ss35-37
16
505073330
Подушка
17
505072209
Втулка
18
505072634
Wear Plate
19
250000291
Hex. Cap Screw M10 X 70
20
505073985
Lh Upper Arm. Model Ss38-40
20
505073987
Lh Upper Arm. Model Ss35-37
20
505073986
Rh Upper Arm. Model Ss38-40
20
505073988
Rh Upper Arm. Model Ss35-37
21
505073329
Втулка
22
505072143
Втулка
23
250000290
Hex. Cap Screw M10 X 60
24
250000289
Hex. Cap Screw M10 X 50
25
503189564
Шайба
26
505072392
Шайба
27
250100165
Nut M10
28
505072444
Stabilisator. Model Ss38-40
28
505072602
Stabilisator. Model Ss35-37
29
505072445
Bushing. Model Ss38-40
29
505072064
Bushing. Model Ss35-37
30
505074050
Stabilisator Lever. Model Ss38-40
30
505074051
Stabilisator Lever. Model Ss35-37
31
207663046
Hex. Flange Screw M6 X 30
32
233261416
Elastic Flange Nut M6
33
505074123
Double Ball Joint Link
34
207663046
Hex. Flange Screw M6 X 30
35
233261416
Elastic Flange Nut M6
36
XXX
Front Shock Ass´y. Includes 36 To 41
37
505073342
Shock. Model Ss38-40
37
505073344
Front Shock. Model Ss35-37
38
505072882
Spring (300mm - 16n/mm). Model Ss38-40
38
503192286
Spring (full Moon). Model Ss35-37
39
706200881
Пружина
40
505073625
Adjuster Cam
41
503191872
Spring Guide
42
207005544
Hex. Cap Screw M10 X 55
43
207006544
Hex. Cap Screw M10 X 65
44
503189564
Шайба
45
233201414
Elastic Flange Nut M10
46
505073636
Шаровая опора
47
293370070
Пружинное стопорное кольцо
48
234021410
Шайба
49
250100089
Nut M12
50
505072913
Шаровая опора
51
293370035
Пружинное стопорное кольцо
