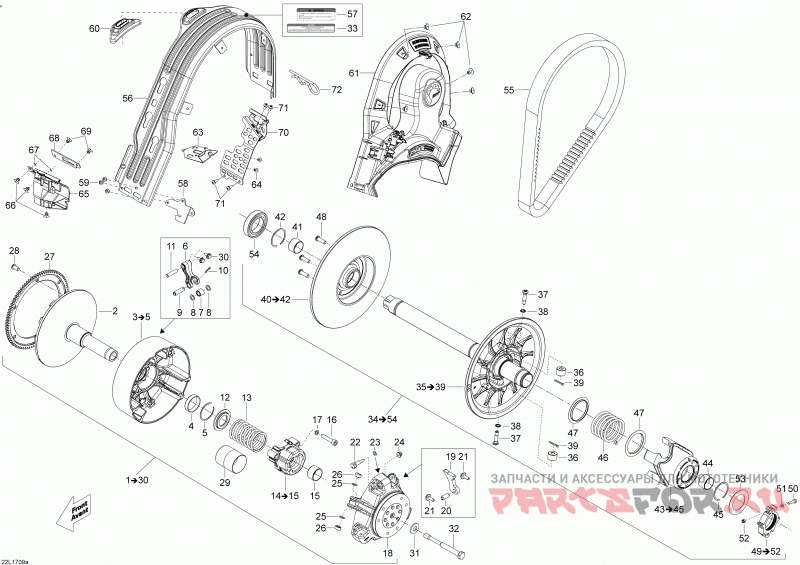

05- Pulley System 600HO E-TEC

Lynx (Bombardier) 49 Ranger STD

05- Pulley System 600HO E-TEC

#

oem код

название

цена

1

Drive Pulley Ass'y. Includes 1 To 30

Drive Pulley Ass'y. Includes 1 To 30

2

Fixed Flange Ass'y

Fixed Flange Ass'y

3

Sliding Flange Ass'y. Includes 3 To 5

Sliding Flange Ass'y. Includes 3 To 5

4

Journal Bearing

Journal Bearing

5

Пружинное стопорное кольцо

Пружинное стопорное кольцо

6

Ramp (716)

Ramp (716)

7

Journal Bearing

Journal Bearing

8

Шайба

Шайба

9

Axle Ramp

Axle Ramp

10

Elastic Stop Nut M5

Elastic Stop Nut M5

11

Spring Cover Ass'y

Spring Cover Ass'y

12

Втулка

Втулка

13

Пружинное стопорное кольцо

Пружинное стопорное кольцо

14

Spring Seat. Includes 14 To 15

Spring Seat. Includes 14 To 15

15

Spring (red / White, 356-600n / 80-135lbs)

Spring (red / White, 356-600n / 80-135lbs)

16

Torx Button Head Screw M6 X 30

Torx Button Head Screw M6 X 30

17

Governor Cup Ass'y

Governor Cup Ass'y

18

Ролик

Ролик

19

Roller Axle

Roller Axle

20

Уплотнительное кольцо

Уплотнительное кольцо

21

Slider Shoe

Slider Shoe

22

Пружинная шайба

Пружинная шайба

23

Drive Pulley Bolt

Drive Pulley Bolt

24

Drive Pulley Bolt Decal

Drive Pulley Bolt Decal

25

Driven Pulley Ass'y

Driven Pulley Ass'y

26

Fixed Flange Ass'y

Fixed Flange Ass'y

27

Ролик

Ролик

28

Шпилька

Шпилька

29

Lock Washer M8

Lock Washer M8

30

Spring Pin M3 X 30

Spring Pin M3 X 30

31

Sliding Flange Ass'y

Sliding Flange Ass'y

32

Пружинное стопорное кольцо

Пружинное стопорное кольцо

33

Cam Ass'y (41/45º)

Cam Ass'y (41/45º)

34

Bushing. Includes 34 To 54

Bushing. Includes 34 To 54

35

Circlip. Includes 35 To 39

Circlip. Includes 35 To 39

36

Spring (pink, 204-367n / 46-83lbs)

Spring (pink, 204-367n / 46-83lbs)

37

Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip

38

Pulley Adjuster Ass'y

Pulley Adjuster Ass'y

39

Socket Head Screw M5 X 25

Socket Head Screw M5 X 25

40

Sliding Flange Ass'y. Includes 40 To 42

Sliding Flange Ass'y. Includes 40 To 42

41

Втулка

Втулка

42

Шайба

Шайба

43

Strength Washer. Includes 43 To 45

Strength Washer. Includes 43 To 45

44

Hex. Cap Screw M8 X 75

Hex. Cap Screw M8 X 75

45

Spacer (1.91/2.21mm)

Spacer (1.91/2.21mm)

46

Spacer (0.91/1.12mm)

Spacer (0.91/1.12mm)

47

Регулировочная прокладка

Регулировочная прокладка

48

Ремень

Ремень

49

Belt Guard. Includes 49 To 52

Belt Guard. Includes 49 To 52

50

Belt Guard Security Decal

Belt Guard Security Decal

51

Front Bracket

Front Bracket

52

заклёпка

заклёпка

53

Направляющая

Направляющая

54

Cvt Air Duct

Cvt Air Duct

55

Pop Rivet 3/16"

Pop Rivet 3/16"

56

Стопор

Стопор

57

заклёпка

заклёпка

58

Front Support

Front Support

59

Pop Rivet 3/16"

Pop Rivet 3/16"

60

Шайба

Шайба

61

Спинка

Спинка

62

заклёпка

заклёпка

63

Belt Guard Bracket

Belt Guard Bracket

64

Torx Truss Screw M5 X 14

Torx Truss Screw M5 X 14

65

Hair Pin

Hair Pin

66

Pop Rivet 3/16"

Pop Rivet 3/16"

67

Шайба

Шайба

68

Спинка

Спинка

69

заклёпка

заклёпка

70

Belt Guard Bracket

Belt Guard Bracket

71

Torx Screw M5 X 14

Torx Screw M5 X 14

72

Hair Pin

Hair Pin
