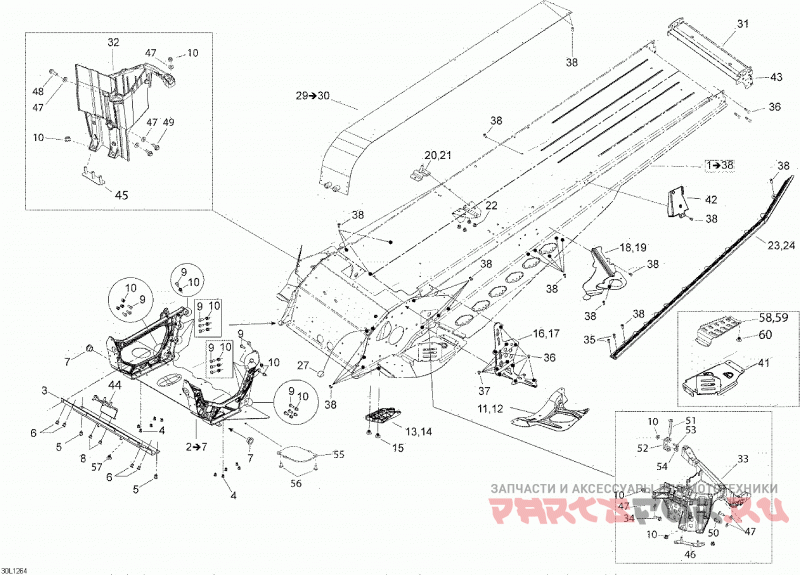

Рама

Lynx (Bombardier) 49 Ranger 600 ACE

Lynx (Bombardier)
#oem кодцена
1
518327071
Frame Assy. Includes 1 To 39
2
518326507
E Module
3
518326198
Член Фронта
4
390909100
Avex Rivet
5
293150120
Hemlock Rivet
6
293150119
Hemlock Rivet, 6.5 Mm
7
505072690
Подушка
8
293150174
Hemlock Rivet, 6.5 Mm
9
207662044
Flanged Screw M6 X 20
10
233261414
Flanged Elastic Nut M6
11
518324874
Rh Reinforcement
12
518324875
Lh Reinforcement
13
518325782
Резус Дефлектор
14
518325783
Дефлектор
15
293150104
Заклепки 3/16"
16
XXX
Rh Front Support
17
XXX
Lh Front Support
18
XXX
Rh Rear Support
19
XXX
Lh Rear Support
20
518326421
Rh Rear Base
21
518326443
Lh Rear Base
22
293150119
заклёпка
23
518327068
Lh Roller
24
518327069
Rh Roller
27
518325560
Adhesive Patch
29
509000645
Rear Radiator. Includes 29 To 30
30
XXX
Avex Rivet
31
518326379
Rear Cap
32
518326472
Поддержка Батареи
33
518326820
Caliber
34
207162544
Screw Hex Cap
35
390402300
Заклепки 3/16"
36
207582586
Screw Forming M8 X 25
37
390909100
Avex Rivet
38
390909200
Avex Rivet
39
XXX
заклёпка
41
XXX
Footrest L.h.
42
510005285
Seat Support R.h
42
510005286
Seat Support L.h
43
518326637
Rear Side Plate
44
518326178
Engine Support
45
518326550
Attach R.h
46
518326986
Attach L.h
47
250200039
Washer A6
48
210262040
Screw Forming M6 X 20
49
207661684
Screw Hex Flange M6
50
250000536
Torx Truss M6x18
51
250000535
Torx Truss M6x55
52
518326961
Attach
53
250000534
Винт
54
293150147
заклёпка
55
518326757
Oil Plate
56
250000325
Torx Truss
57
293730042
Dart
58
520000887
Foot Rest R.h
59
520000888
Foot Rest L.h
60
390402200
Rivet Pop 3/16
