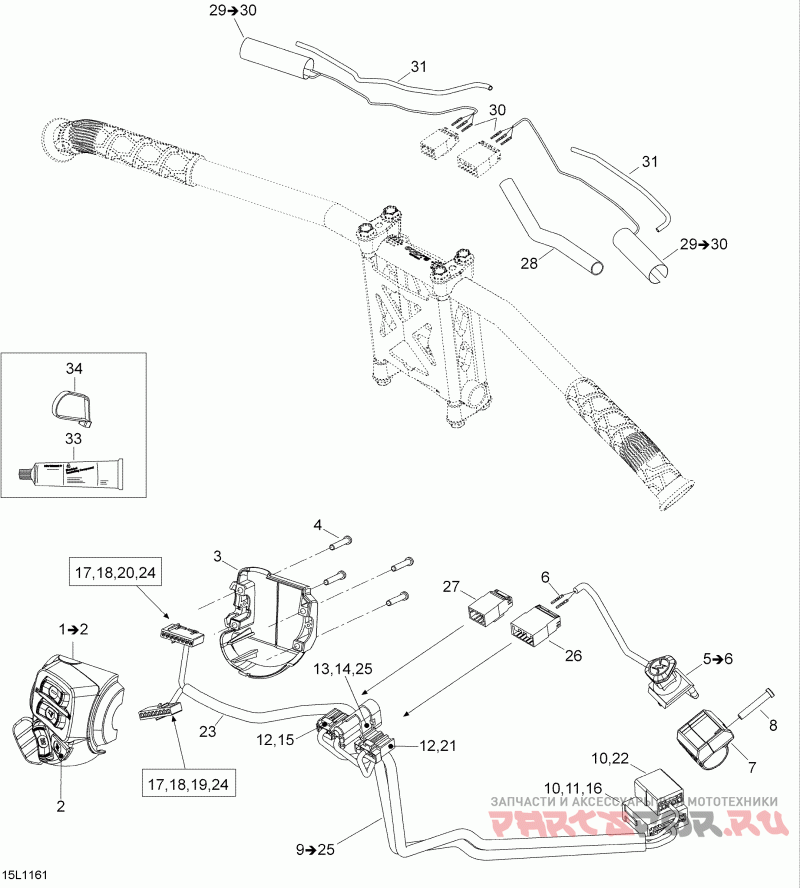

Жгут проводов

Lynx (Bombardier) Xtrim 550

Lynx (Bombardier)
#oem кодцена
1
515177021
Lh Housing. Includes 1 To 2
2
515176088
Start/rer Button
3
515175926
Housing Switch Plate
4
250000263
Винт
5
515177061
Kill Switch. Includes 5 To 6
6
515175232
фишки
7
515176825
Kill Switch Support
8
250000263
Винт
9
515176995
Steering Wiring Harness Ass'y. Includes 9 To 25
10
515175232
фишки
11
515175273
фишки
12
515175231
Датчик Температуры
13
710000568
Кожух
14
278001013
Провода Печать
15
515175543
Female Terminal Housing, 6 Circuits
16
515175720
Male Terminal Housing, 11 Circuits
17
515175808
Датчик Температуры
18
515175809
Femelle Lock, 8 Circuits
19
515175807
Female Terminal Housing 8 Circuits Black
20
515175810
Female Terminal Housing, 8 Circuits
21
515175819
Female Terminal Housing, 8 Circuits
22
515175662
Male Terminal Housing, 6 Circuits
23
515175830
Low Temperature Tubing 1/2”
24
515175941
Датчик Температуры
25
515176164
фишки
26
515175846
Male Terminal Housing, 4 Circuits
27
515175662
Male Terminal Housing, 6 Circuits
28
515175830
Low Temperature Tubing 1/2”
29
506152467
Lh/rh Heating Element. Includes 29 To 30
30
515175232
фишки
31
515175332
Vinyl Tubing, Low Temperature
33
293550004
Диэлектрическая Смазка, 150 Г
34
293750001
Tie-rap 94 Mm
34
293750008
Tie-rap 350 Mm
