Сидение для снегоходов Lynx (Bombardier) Adventure LX 600 ACE (2011)

Москва и регионы России

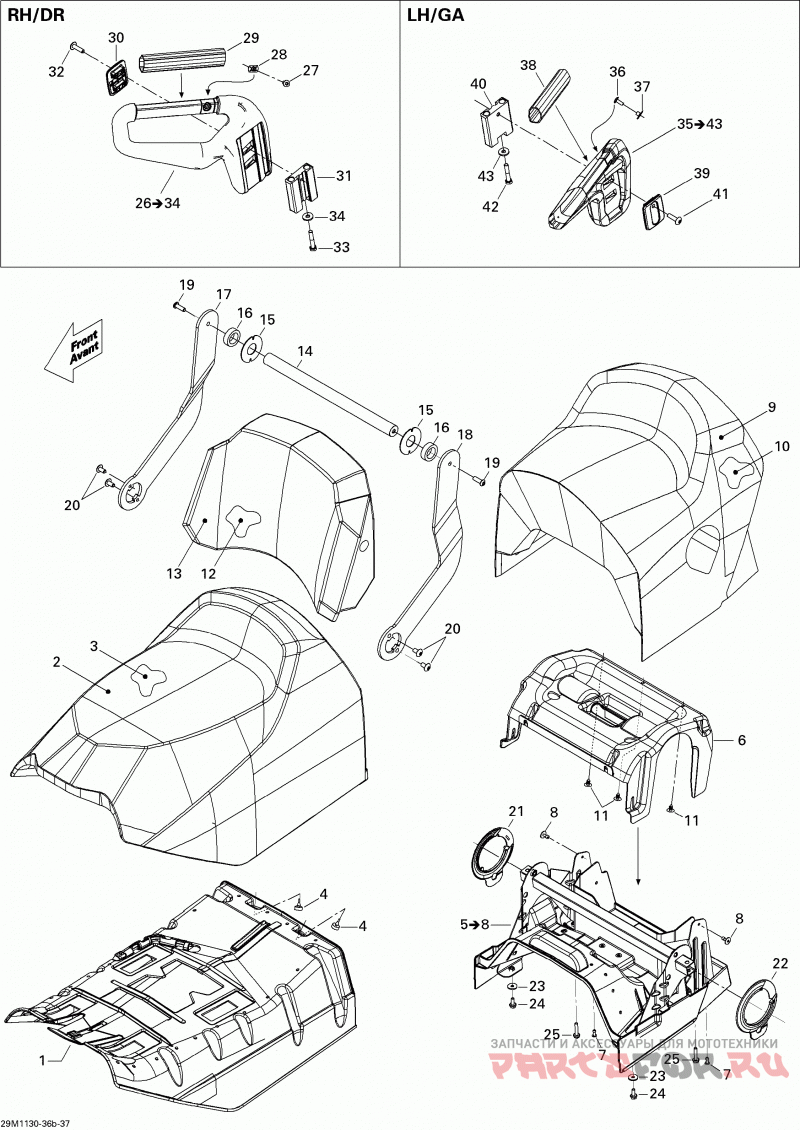

Сидение

Lynx (Bombardier) Adventure LX 600 ACE

Сидение

#

oem код

название

цена

1

Front Seat Base

Front Seat Base

2

Seat Cover

Seat Cover

3

Front Seat Foam

Front Seat Foam

4

Резиновые стопоры

Резиновые стопоры

5

Seat Base Ass'y. Includes 5 To 8

Seat Base Ass'y. Includes 5 To 8

6

Foam Support

Foam Support

7

Заклепки 3/16вЂќ

Заклепки 3/16вЂќ

8

Заклепки 3/16"

Заклепки 3/16"

9

Seat Cover

Seat Cover

10

Rear Seat Foam

Rear Seat Foam

11

Dart

Dart

12

Backrest Foam

Backrest Foam

13

Backrest Cover

Backrest Cover

14

Upper Backrest Axle

Upper Backrest Axle

15

Шайба

Шайба

16

Rubber Shim

Rubber Shim

17

Rh Arm, Black

Rh Arm, Black

18

Lh Arm, Black

Lh Arm, Black

19

Винт М8 Х 25

Винт М8 Х 25

20

Винт М8 Х 16

Винт М8 Х 16

21

Spacer Rh

Spacer Rh

22

Spacer Lh

Spacer Lh

23

Шайба

Шайба

24

Hex. Screw M6 X 16, Scotch Grip

Hex. Screw M6 X 16, Scotch Grip

25

Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

26

Rh Handle Ass'y. Includes 26 To 34

Rh Handle Ass'y. Includes 26 To 34

27

Torx Screw M6 X 16

Torx Screw M6 X 16

28

Nut M6

Nut M6

29

Ручка

Ручка

30

Moulding

Moulding

31

Handle Link

Handle Link

32

Torx Truss Screw M8 X 30

Torx Truss Screw M8 X 30

33

Hex. Screw M8 X 45

Hex. Screw M8 X 45

34

Washer, Yellow

Washer, Yellow

35

Lh Handle Ass'y. Includes 35 To 43

Lh Handle Ass'y. Includes 35 To 43

36

Torx Screw M6 X 16

Torx Screw M6 X 16

37

Nut M6

Nut M6

38

Ручка

Ручка

39

Moulding

Moulding

40

Handle Link

Handle Link

41

Torx Truss Screw M8 X 30

Torx Truss Screw M8 X 30

42

Hex. Screw M8 X 45

Hex. Screw M8 X 45

43

Washer, Yellow

Washer, Yellow
