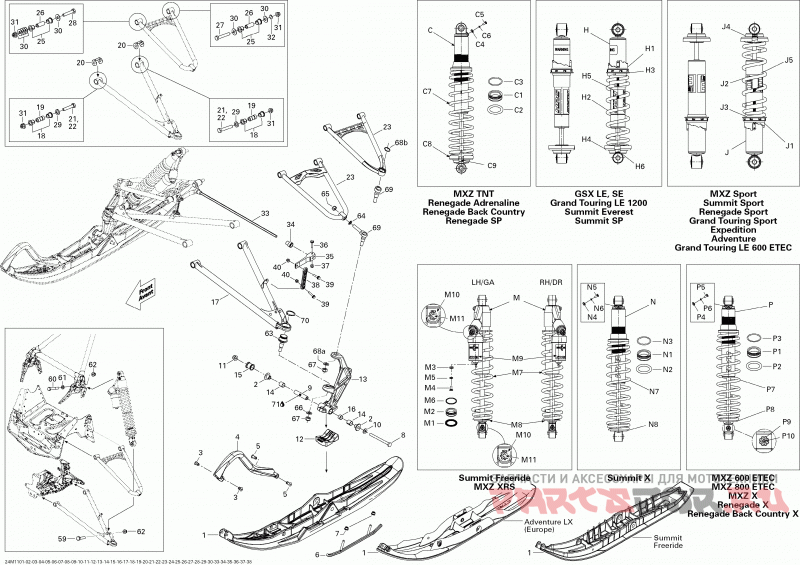

07- Front Suspension And Ski (Europe)

Lynx (Bombardier) Adventure LX 600 ACE

Lynx (Bombardier)
#oem кодцена
1
505072673
Plastic Ski
2
N/A
Not Available For This Vehicle
3
505071812
Седло
4
505070963
Handle, Black
5
N/A
Not Available For This Vehicle
6
605352643
Carbide Kit
7
233201414
Гайки М10
8
230003044
Hex. Screw M10 X 130
9
506133300
Проставка
10
732900049
Шайба
11
233201414
Гайки М10
12
505072561
Резиновый Демпфер
13
505073007
Лыжная Нога
13
505073008
Лыжная Нога
14
505072690
Leg Cushion
15
N/A
Not Available For This Vehicle
16
N/A
Not Available For This Vehicle
17
505072495
Rh Lower Arm
17
505072496
Lh Lower Arm
18
505072208
Втулка
19
505072393
Втулка
20
505072634
Плита Износа
21
250000291
Screw Hex. M10 X 70
22
N/A
Not Available For This Vehicle
23
505072374
Upper Arm
25
505072250
Втулка
26
505072143
Втулка
27
250000290
Screw Hex. M10 X 60
28
250000289
Screw Hex. M10 X 50
29
503189564
Шайба
30
505072392
Шайба
31
250100088
Hex. Elastic Hex. Nut M10
32
505072448
Уплотнительное кольцо
33
505072602
Stabilisator
34
505072064
Втулка
35
505072394
Stabilisator Lever
36
207663046
Flanged Hex. Screw M6 X 30
37
233261416
Elastic Flanged Nut M6
38
505072204
Двойной Шарнир Ссылке Мяч
39
207663046
Flanged Hex. Screw M6 X 30
40
233261416
Elastic Flanged Nut M6
C
N/A
Not Available For This Vehicle
C1
N/A
Not Available For This Vehicle
C2
N/A
Not Available For This Vehicle
C3
N/A
Not Available For This Vehicle
C4
N/A
Not Available For This Vehicle
C5
N/A
Not Available For This Vehicle
C6
N/A
Not Available For This Vehicle
C7
N/A
Not Available For This Vehicle
C8
N/A
Not Available For This Vehicle
C9
N/A
Not Available For This Vehicle
H
N/A
Not Available For This Vehicle
H1
N/A
Not Available For This Vehicle
H2
N/A
Not Available For This Vehicle
H3
N/A
Not Available For This Vehicle
H4
N/A
Not Available For This Vehicle
H5
N/A
Not Available For This Vehicle
H6
N/A
Not Available For This Vehicle
J
505073017
Front Shock
J1
505070150
Adjustment Cam
J2
505072897
Painted Spring
J3
503187500
Spring Guide
J4
706200881
Пружина
J5
516004534
Shock Decal
M
N/A
Not Available For This Vehicle
M1
N/A
Not Available For This Vehicle
M2
N/A
Not Available For This Vehicle
M3
N/A
Not Available For This Vehicle
M4
N/A
Not Available For This Vehicle
M5
N/A
Not Available For This Vehicle
M6
N/A
Not Available For This Vehicle
M7
N/A
Not Available For This Vehicle
M8
N/A
Not Available For This Vehicle
M9
N/A
Not Available For This Vehicle
M10
N/A
Not Available For This Vehicle
M11
N/A
Not Available For This Vehicle
N
N/A
Not Available For This Vehicle
N1
N/A
Not Available For This Vehicle
N2
N/A
Not Available For This Vehicle
N3
N/A
Not Available For This Vehicle
N4
N/A
Not Available For This Vehicle
N5
N/A
Not Available For This Vehicle
N6
N/A
Not Available For This Vehicle
N7
N/A
Not Available For This Vehicle
N8
N/A
Not Available For This Vehicle
P
N/A
Not Available For This Vehicle
P1
N/A
Not Available For This Vehicle
P2
N/A
Not Available For This Vehicle
P3
N/A
Not Available For This Vehicle
P4
N/A
Not Available For This Vehicle
P5
N/A
Not Available For This Vehicle
P6
N/A
Not Available For This Vehicle
P7
N/A
Not Available For This Vehicle
P8
N/A
Not Available For This Vehicle
P9
N/A
Not Available For This Vehicle
P10
N/A
Not Available For This Vehicle
59
207005544
Винт М10 Х 55
60
207006544
Hex. Screw M10 X 65
61
503189564
Шайба
62
233201414
Гайки М10
63
505072682
Lower Ball Joint
64
503189276
Шайба
65
250100089
Hex. Elastic Hex. Nut M12
66
234021410
Flat Washer 12 Mm
67
250100089
Hex. Elastic Hex. Nut M12
68a
N/A
Not Available For This Vehicle
68b
N/A
Not Available For This Vehicle
69
505072257
Upper Ball Joint
70
293370035
Пружинное стопорное кольцо
71
293550033
Suspension Grease, 10 X 400 G
