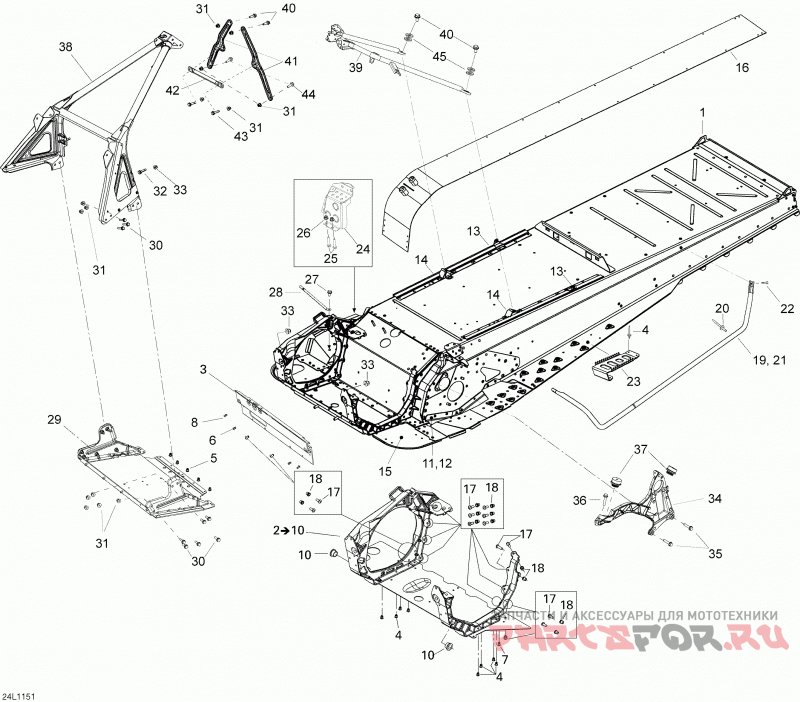

Рама

Lynx (Bombardier) 59 YETI 600 ACE

Lynx (Bombardier)
#oem кодцена
1
518326517
Frame Ass'y Xu
2
518326518
E Module
3
518326140
Engine Support
4
390909200
Avex Rivet
5
XXX
Rivet Hucklok 6,4 Mm.
6
293150119
Hemlock Rivet, 6.5 Mm
7
293150120
Hemlock Rivet 6.5 Mm
8
293150163
Rivet Hucklok 4,8 Mm Hklp-r6-5gat
9
390909100
Avex Rivet
10
505072690
Leg Cushion
11
518326439
Drive Axle Cover Lh
12
518326440
Drive Axle Cover Rh
13
518325987
Короб Сиденья Кронштейн
14
518326109
Support Tube Bracket Lh
14
518326110
Support Tube Bracket Rh
15
518325524
Frame Corner Lh
15
518325526
Frame Corner Rh
16
509000645
Radiator Tunnel
17
207662044
Винт М6 Х 20
18
233261414
Гайка М6
19
605254999
Lh Footboard Support Tube
20
293150163
Rivet Hucklok 4,8 Mm Hklp-r6-5gat
21
605255000
Rh Footboard Support Tube
22
207662086
Hex. Flanged Screw Din.6921
23
520000492
Footrest
24
518326464
Toe Hook Lh
24
518326465
Toe Hook Rh
25
207662086
Hex. Flanged Screw Din.6921
26
233261414
Гайка М6
27
250000128
Винт М6 Х 20
28
514054616
Кронштейн
29
518326213
S Module
30
207662044
Винт М6 Х 20
31
233261414
Гайка М6
32
250000450
Hex. Flange Screw Din.6921
33
233261414
Гайка М6
34
518326143
Lh Brace
35
207582586
Hex. Flanged Screw M8 X 25, Scotch Grip
36
207584034
Hex. Flanged Screw, Scotch Grip
37
512060295
Резиновое Крепление
38
518326754
Front Member Ass'y
39
518326103
Upper Support Tube Welded
40
207662086
Hex. Flanged Screw Din.6921
41
518326151
Side Upper Column
42
518326355
Center Column Support
43
250300027
Clinch Stud M6 X 20
44
250000450
Hex. Flange Screw Din.6921
45
XXX
Lock Washer D6 (nord-lock)
