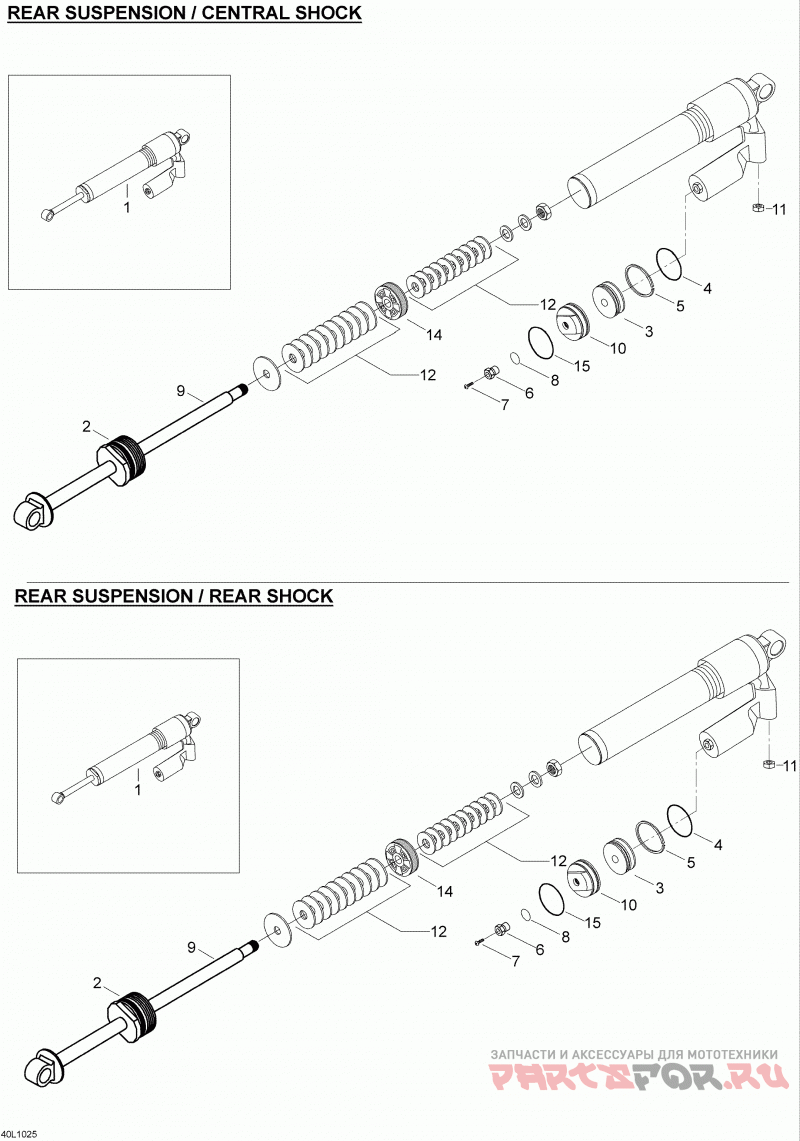

07- Take Apart Shock rear

Lynx (Bombardier) Rave RE 600 E-TEC

Lynx (Bombardier)
#oem кодцена
1
619330003
Shock, Front Arm (service)
1
619330005
Shock, Rear Arm (service)
2
230060
Seal Carrier Assy
3
-XXX-
Floating Piston
4
415093807
Уплотнительное кольцо
5
503189006
Кольцо поршневое
6
505070398
Air Valve Ring
7
505070399
Винт
8
505070400
Уплотнительное кольцо
9
619300013
Rod Ass'y, Front Arm
9
-XXX-
Rod Ass'y, Rear Arm
10
619300009
Seal Carrier Assy
11
-XXX-
Valve Ass'y
12
230029
Leaf Valve 20x0.114
12
230030
Leaf Valve 20x0.152
12
230031
Leaf Valve 20x0.203
12
230032
Leaf Valve 20x0.254
12
503189011
Leaf Valve Г?22 X 0.114 (c46)
12
503189012
Leaf Valve Г?22 X 0.152 (c46)
12
-XXX-
Leaf Valve 22x0.203
12
503189016
Leaf Valve Г?24 X 0.114 (c46)
12
503189017
Leaf Valve Г?24 X 0.152 (c46)
12
503189018
Leaf Valve Г?24 X 0.203 (c46)
12
503189019
Leaf Valve Г?24 X 0.254 (c46)
12
503189021
Leaf Valve Г?26 X 0.114 (c46)
12
503189023
Leaf Valve Г?26 X 0.203 (c46)
12
503189026
Leaf Valve Г?28 X 0.114 (c46)
12
503189027
Leaf Valve Г?28 X 0.152 (c46)
12
503189033
Leaf Valve Г?30 X 0.203 (c46)
12
230082
Leaf Valve 32x0.114
12
230033
Leaf Valve 34x0.114
12
230034
Leaf Valve 34x0.152
12
230035
Leaf Valve 34x0.203
12
230036
Leaf Valve 34x0.254
12
230037
Leaf Valve 36x0.114
12
503189036
Leaf Valve Г?36 X 0.152 (c46)
12
503189038
Leaf Valve Г?36 X 0.254 (c46)
12
230040
Leaf Valve 38x0.152
12
230041
Leaf Valve 38x0.203
12
230042
Leaf Valve 38x0.254
12
503189039
Leaf Valve Г?40 X 0.152 (c46)
13
503189020
Leaf Valve Г?24 X 0.305 (c46)
14
503189003
Piston, Г?1.2 (c46)
14
503189002
Piston, Г?1.7 (c46)
14
230039
Piston 2.0 Mm
14
230043
Piston 0mm
15
415093804
Уплотнительное кольцо
