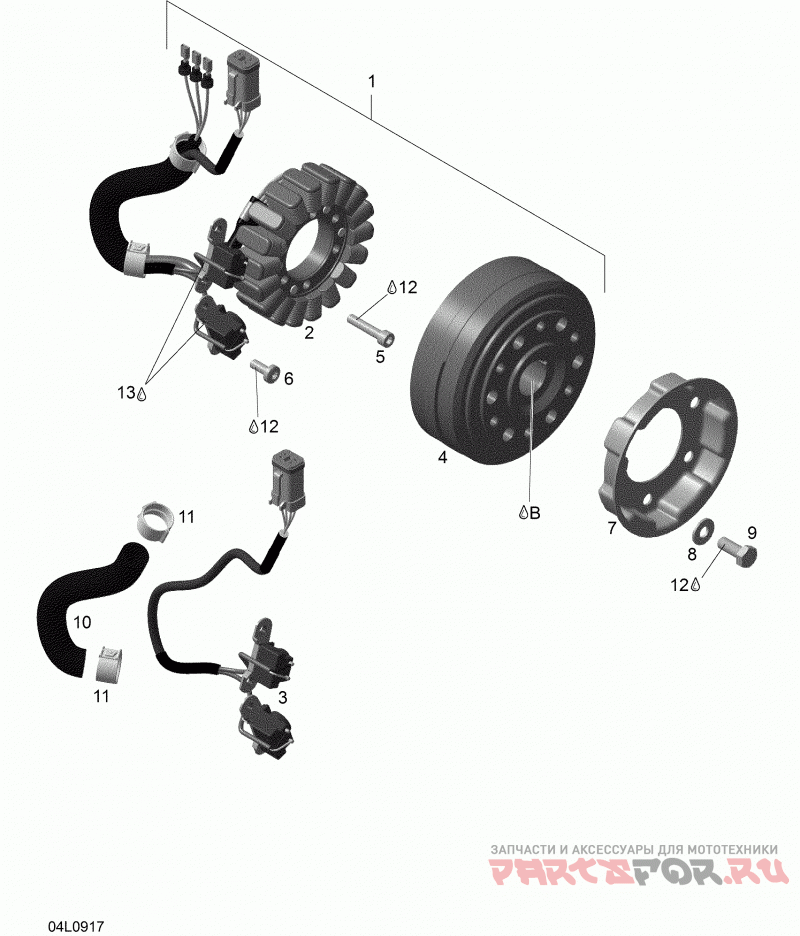

01- Ignition
Lynx (Bombardier) Xtrim SC 800R PowerTEK
| # | oem код | название | цена |
|---|---|---|---|
1 | 420891545 Magneto Generator. Includes 1 To 9. Includes 1 To 4 | Magneto Generator. Includes 1 To 9. Includes 1 To 4 | |
2 | 420889909 Stator Ass'y Whit Tigger Assy | Stator Ass'y Whit Tigger Assy | |
3 | 420966803 Pick Up Ass'y | Pick Up Ass'y | |
4 | 420665723 Маховик Магнето | Маховик Магнето | |
5 | 420840880 Allen Screw M6 X 30 | Allen Screw M6 X 30 | |
6 | 420640321 Taptite Screw M5 X 16 | Taptite Screw M5 X 16 | |
7 | 420852532 Starting Pulley | Starting Pulley | |
8 | 420827405 Шайба | Шайба | |
9 | 420940581 Screw M8 X 16 | Screw M8 X 16 | |
10 | 420460871 Патрубок | Патрубок | |
11 | 420960896 Зажим | Зажим | |
12 | 293800060 Loctite 243, 10ml | Loctite 243, 10ml | |
13 | -XXX- Фиксатор резьбы | Фиксатор резьбы |
