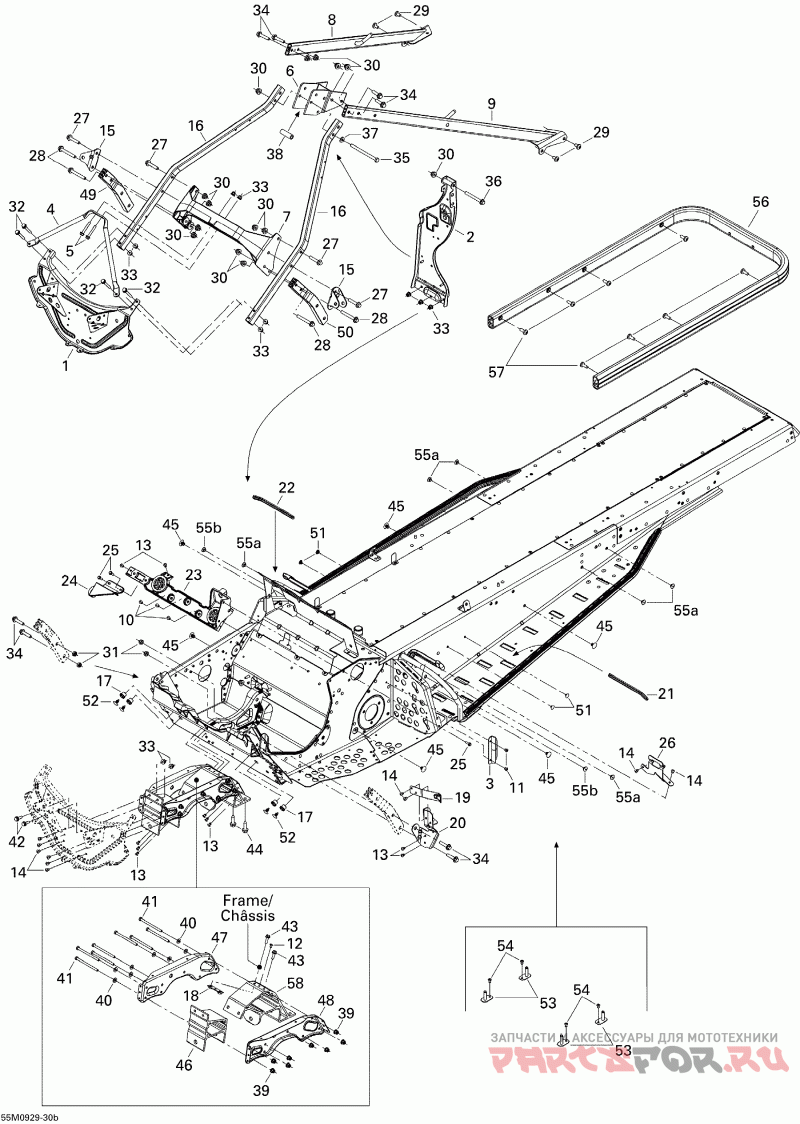

09- Frame and Components Ranger

Lynx (Bombardier) Adventure Ranger V-800

Lynx (Bombardier)
#oem кодцена
1
518324216
Front Plate
2
518325212
Upper Column Support
3
518317504
Cable Protector
4
518325036
Brace
5
207664044
Hex. Flanged Screw M6 X 40
6
518324196
Bracket Block
7
518324808
Upper Cross Member
8
518324480
Члены правые
9
518325193
Член Левый
10
293150119
Hemlock Rivet, 6.5 Mm
11
390402200
Заклепки 3/16"
12
390402300
Заклепки 3/16"
13
390909100
Avex Rivet
14
390909200
Avex Rivet
15
518324202
Shock Bracket
16
518325074
Upper Tube
17
293450166
Вставка
18
518324204
Holder Plate
19
518325235
Guard Belt Bracket, Black
20
518325075
Guard Belt Support
21
271000110
Protection Trim
22
271000110
Protection Trim
23
518324902
Lh Rear Engine Support
24
518324903
Rh Rear Engine Support
25
207551644
Hex. Flanged Screw M5 X 16, Scotch Grip
26
518325077
Guard Belt Bracket
27
207684044
Hex. Flanged Screw M8 X 40
28
207686044
Hex. Flanged Screw M8 X 60
29
250000154
Torx Screw M8 X 13
30
233281414
Гайка М8
31
232581414
Hex. Elastic Nut M8
32
207664544
Flanged Hex. Screw M6 X 45
33
233261414
Гайка М6
34
207683544
Hex. Flanged Screw M8 X 35
35
230081044
Hex. Screw M8 X 110
36
207687044
Hex. Flanged Screw M8 X 70
37
503189157
Шайба
38
506150500
Втулка
39
233261414
Гайка М6
40
250200039
Шайба
41
207069044
Hex. Screw M6 X 90
42
207662044
Винт М6 Х 20
43
207562044
Flanged Screw M6 X 20, Scotch Grip
44
250000257
Cone Bolt, M8 X 30
45
518321954
Fastener Panel
46
518324019
Front Attachment, Front Suspension
47
518324014
Rh Lateral Reinforcement
48
518324017
Lh Lateral Reinforcement
49
518324786
Rh Tube
50
518324787
Lh Tube
51
N/A
Not Available For This Vehicle
52
414644300
Dart
53
518322791
Tank Bracket
54
390402400
Заклепки 3/16"
55a
N/A
Not Available For This Vehicle
55b
390406500
Заклепки 3/16"
56
518325509
Rear Bumper
57
236282084
Hex. Screw M8 X 20
58
518325202
Rear Attachment, Front Suspension
