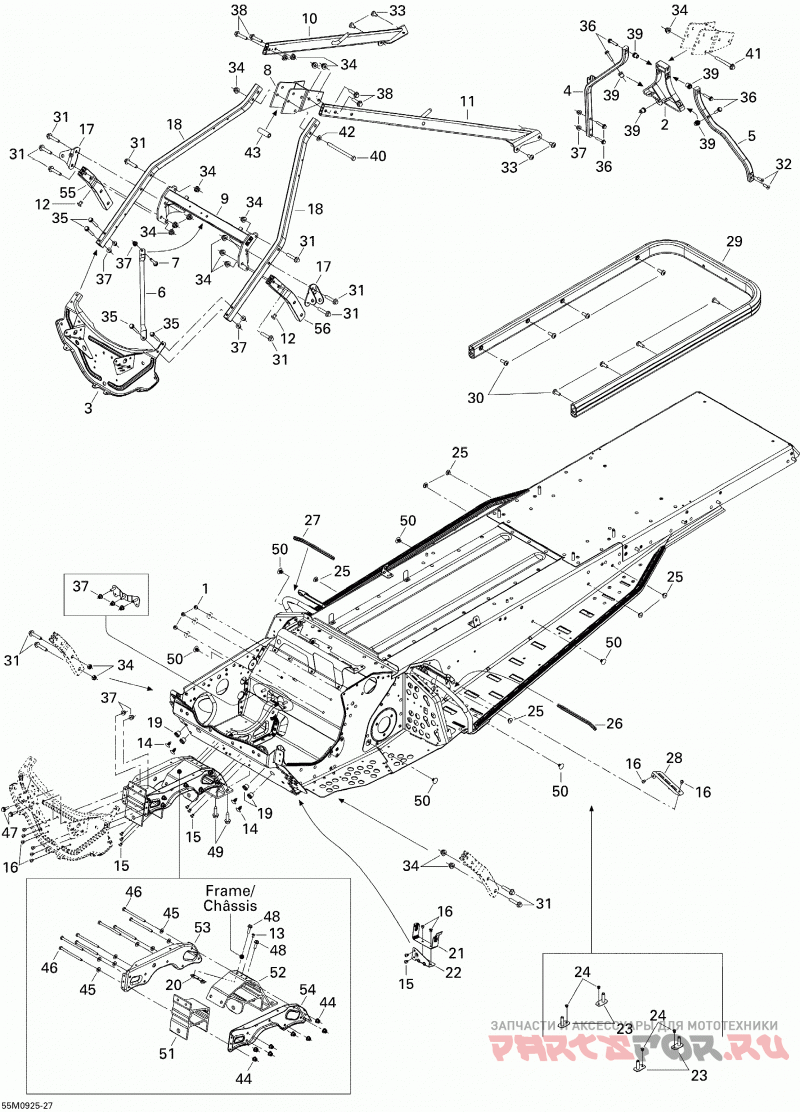

Рама

Lynx (Bombardier) Adventure Ranger 550 RF

Lynx (Bombardier)
#oem кодцена
1
293150096
заклёпка
2
518324377
Center Stiffener
3
518324216
Front Plate
4
518324397
Rh Handle Support
5
518324376
Lh Handle Support
6
518324988
Brace
7
207663544
Hex. Flanged Screw M6 X 35
8
518324196
Bracket Block
9
518325150
Upper Cross Member
10
518324480
Члены правые
11
518325193
Член Левый
12
293150119
Hemlock Rivet, 6.5 Mm
13
390402300
Заклепки 3/16"
14
390402200
Заклепки 3/16"
15
390402300
Заклепки 3/16"
14
414644300
Dart
15
390909100
Avex Rivet
16
390909200
Avex Rivet
17
518324202
Shock Bracket
18
518325074
Upper Tube
19
293450166
Вставка
20
518324204
Holder Plate
21
518322726
Guard Belt Bracket, Black
22
518324923
Guard Belt Support
23
518322791
Tank Bracket
24
390402400
Заклепки 3/16"
25
390406500
Заклепки 3/16"
26
271000110
Protection Trim
27
271000110
Protection Trim
28
518323105
Plate, Black
29
518325509
Rear Bumper
30
236282084
Hex. Screw M8 X 20
31
207684044
Hex. Flanged Screw M8 X 40
32
205862044
Фиксатор М6 х 20
33
250000154
Torx Screw M8 X 13
34
233281414
Гайка М8
35
207664544
Flanged Hex. Screw M6 X 45
36
250000253
Hex. Flange Screw
37
233261414
Гайка М6
38
207683544
Hex. Flanged Screw M8 X 35
39
415107300
Вставка
40
230081044
Hex. Screw M8 X 110
41
207687044
Hex. Flanged Screw M8 X 70
42
503189157
Шайба
43
506150500
Втулка
44
233261414
Гайка М6
45
250200039
Шайба
46
207069044
Hex. Screw M6 X 90
47
207662044
Винт М6 Х 20
48
207562044
Flanged Screw M6 X 20, Scotch Grip
49
250000257
Cone Bolt, M8 X 30
50
518321954
Fastener Panel
51
518324019
Front Attachment, Front Suspension
52
518325202
Rear Attachment, Front Suspension
53
518324014
Rh Lateral Reinforcement
54
518324017
Lh Lateral Reinforcement
55
518324214
Rh Vertical Tube
56
518324215
Lh Vertical Tube
