Электрика

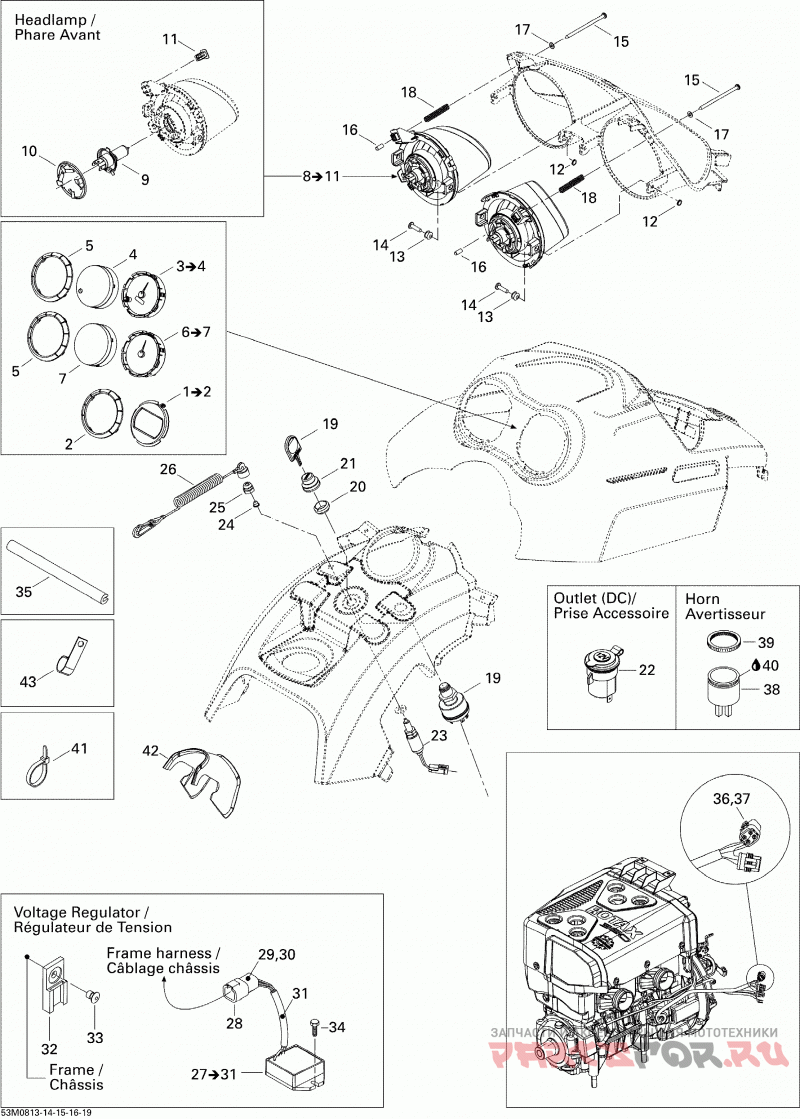

Lynx (Bombardier) Adventure LU Ranger 550

Lynx (Bombardier)
#oem кодцена
1
515176373
Gauge Bottom Ring Ass'y. Includes 1 To 2
2
515176242
Ободок спидометра
3
515176476
Speedometer. Includes 3 To 4
4
415128938
Remplacement Lens, Speedometer
5
515176242
Ободок спидометра
6
N/A
Not Available For This Vehicle
7
N/A
Not Available For This Vehicle
8
515176168
Rh Headlamp Ass'y. Includes 8 To 11
8
515176169
Lh Headlamp Ass'y. Includes 8 To 11
9
515176274
Halogen Bulb, 60/55 W, 12 V
10
515176385
Bulb Holder
11
515176339
Plastic Insert
12
389804300
Гайка
13
515176289
Headlamp Bushing
14
390906200
Flat Head Steel Rivet
15
250000244
Phillips Screw #8 X 3"
16
515176370
Крышка
17
234051600
Плоская Шайба М5
18
515176353
Пружина
19
515176548
Ignition Switch
20
410112100
Face Nut
21
570013700
Switch Boot
22
861507200
Outlet Power Kit, 12 Volts
23
515175653
Brake Switch
24
570151100
Plunger Cap
25
515145900
Switch Nut
26
515176463
Cap Ass'y
27
515176189
Voltage Regulator. Includes 27 To 31
28
278001477
Female Housing, 4 Circuits
29
515175568
фишки
30
278001478
Male Wedge, 4 Circuits
31
710000497
Protector Tube, 9 Mm
32
515175917
Зажим
33
293150037
Avdel Rivet 3/16"
34
210261280
Hex. Flanged Screw M6 X 12
35
509000263
Планка
35
271000110
Protection Trim
36
278001473
Female Terminal Housing, 4 Circuits
37
278001474
Female Lock, 4 Circuits
38
515176035
Сигнал
39
414805101
Пластиковая Гайка
40
293800086
Silicone Sealant 5150, 300 Ml
41
414115200
Стяжка 180мм
41
293750002
Tie-rap 130 Mm
41
293750008
Tie-rap 350 Mm
41
293750009
Tie-rap 160 Mm
42
515176321
Протектор
43
515176457
Зажим
