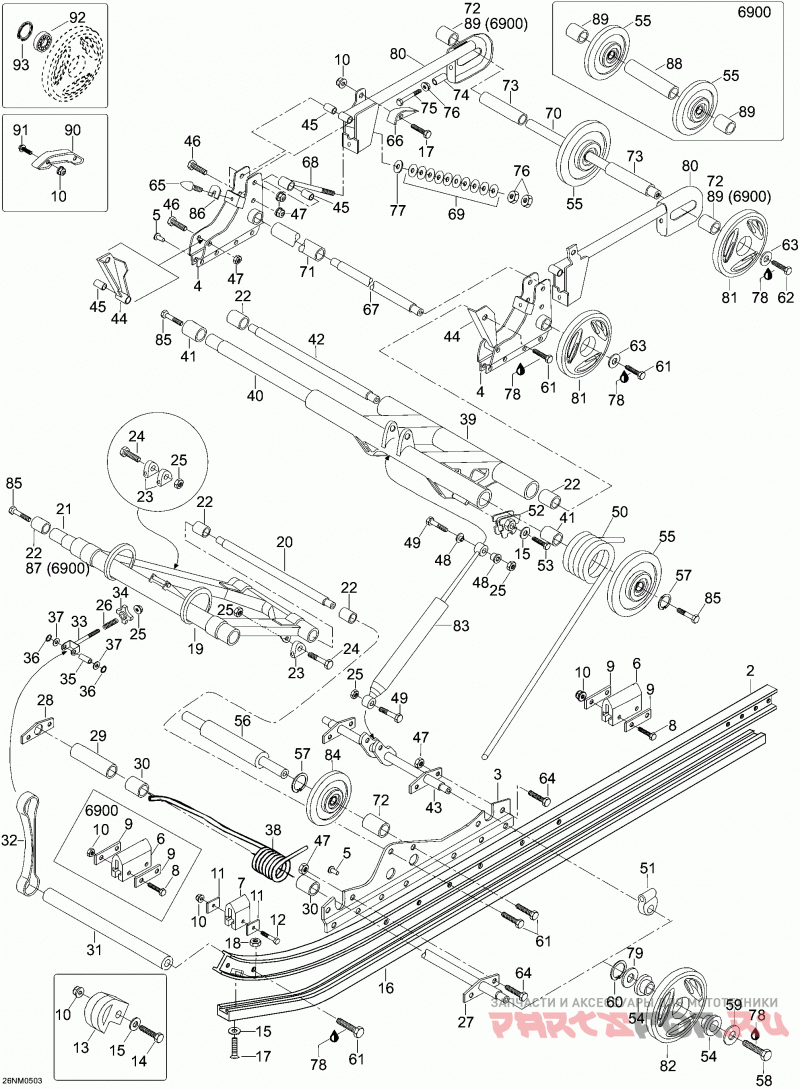

08- Rear Suspension, 5900FCE

Lynx (Bombardier) Lynx 5900FCE

Lynx (Bombardier)
#oem кодцена
1
5142866
R.h. Runner Ass'y. Includes 1 To 4
1
5142865
L.h. Runner Ass'y
2
5142864
Бегун
3
5344811
R.h. Support
3
5344810
L.h. Support
4
539673
R.h. Support
4
539672
L.h. Support
5
544212
заклёпка
6
570023100
Rubber Stopper. 5900fce
7
5442328
Rubber Stopper. 5900fce
8
40002
Hex. Screw M6 X 40. 5900 Fce
9
548387
Plate. 5900 Fce
10
33200
Elastic Flanged Nut M6. 5900 Fce
11
548470
Plate. 5900 Fce
12
40032
Hex. Screw M6 X 30. 5900 Fce
13
605348954
Runner Protector
14
40031
Hex. Screw M6 X 25
15
20003
Washer 6 Mm
16
549582
Shoe Runner
17
40030
Hex. Screw M6 X 20
18
33010
Гайка M6
19
5245898
Front Arm Welded. 5900 Fce
20
549695
Мост
21
542793
Axle. 5900 Fce
22
542770
Sleeve. 5900 Fce
23
548799
Spring Support
24
40014
Винт М10 Х 40
25
33012
Гайка M10
26
414460600
Пружина
27
539653
Мост
28
548469
Опорная Плита
29
5440313
Гильца
30
548841
Гильца
31
549718
Cross Shaft
32
5442604
Stopper Strap
33
5441643
Eye Bolt Adjuster
34
572034000
Adjuster Knob
35
5441645
Штифт
36
41035
Пружинное стопорное кольцо
37
20005
Шайба
38
5241178
R.h. Spring. 5900 Fce
38
5241177
L.h. Spring. 5900 Fce
39
5343493
Rear Arm Welded. 5900 Fce
40
5343492
Rear Cross Shaft. 5900 Fce
41
31046
Slide Bearing
42
549656
Вал
43
539655
Вал
44
5440350
Lever, R.h.
44
5440349
Lever, L.h.
45
545758
Гильца
46
40008
Hex. Screw M8 X 45
47
33011
Elastic Stop Nut M8 Din985 M8 Zne
48
544417
Подушка
49
40017
Hex. Screw M10 X 50
50
538806
R.h. Spring
50
538805
L.h. Spring
51
548804
Spring Support. 5900 Fce
52
572030800
L.h. Cam Adjuster
52
572030900
R.h. Cam Adjuster
53
40114
Hex. Screw M6 X 10
54
503189534
Подушка
55
503189568
Idler Wheel 165. 5900fce
56
549680
Shaft Support
57
31001
Пружинное стопорное кольцо
58
40336
Hex. Screw M8 X 20
59
503183100
Washer, Hardened
60
31007
Пружинное стопорное кольцо
61
40335
Hex. Screw M10 X 30
62
40050
Hex. Screw With Cap M10 X 35
63
503183300
Washer, Hardened
64
40035
Hex. Screw M8 X 16
65
535455
Резиновые стопоры
66
548262
Протектор
67
541816
Вал
68
5440377
Болт натяжной
69
25004
Пластина
70
5343284
Shaft. 5900fce
71
541815
Гильца
72
546577
Sleeve. 5900fce
73
5443285
Sleeve. 5900fce
74
605452332
Гильца
75
40239
Hex. Screw M10 X 100
76
33004
Гайка М10
77
20011
Washer 10 Mm
78
293800060
Loctite 243, 10ml Blue
79
31091
Регулировочная прокладка
80
605252505
Jatkon Putki Hits Oikea
80
605252504
Jatkon Putki Hits Vasen
81
503190856
Idler Wheel 165mm/full Moon
82
503190797
Idler Wheel 135mm/full Moon
83
23016
Alustan Vaimennin Arvin. 5900fce
84
503191029
Sisätukipyörä 135mm, Musta
85
40314
Hex. Screw M10 X 30
86
5440645
Shim Plate
87
N/A
Not Available For This Vehicle
88
N/A
Not Available For This Vehicle
89
N/A
Not Available For This Vehicle
90
N/A
Not Available For This Vehicle
91
N/A
Not Available For This Vehicle
92
503190795
Laakeri
93
31002
Пружинное стопорное кольцо
