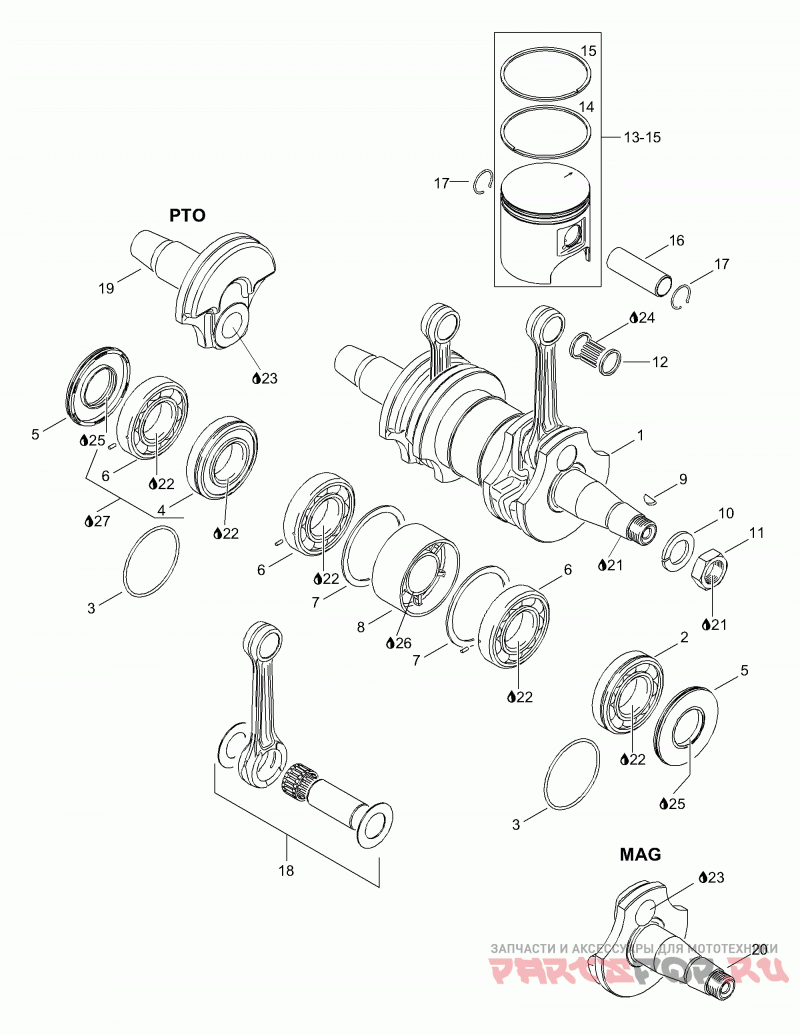

01- Crankshaft Assy

Lynx (Bombardier) ST 550 F

Lynx (Bombardier)
#oem кодцена
1
420889060
Crankshaft Assy. Includes Items 1 Thru 8
2
420832571
Ball Bearing 6207
3
420250165
Уплотнительное кольцо
4
420832637
Ball Bearing 6207
5
420831950
Сальник
5
420832573
Ball Bearing 6207. Includes Items 5 Thru 6
6
420929972
Drive Pin
7
420927710
Стопорный Диск
8
420850149
Цилиндр
9
420246055
Шпонка
10
420945759
Гровер
11
420842230
Nut M22
12
420832420
Cagel. Needle Bearing
13
420889050
Piston Assy 75.86 Mm. Includes Items 13 Thru 15
13
420889051
Piston Assy 76.11 Mm. Includes Items 13 Thru 15
13
420889052
Piston Assy 76.36 Mm. Includes Items 13 Thru 15
14
420815300
Piston Ring 76.00 Mm
14
420815301
Piston Ring 76.25 Mm
14
420815302
Piston Ring 76.50 Mm
15
420815150
Piston Ring 76.00 Mm
15
420815151
Piston Ring 76.25 Mm
15
420815152
Piston Ring 76.50 Mm
16
420916405
Палец поршневой
17
420845106
Пружинное стопорное кольцо
18
420889064
Рем Комплект Коленвала
19
420819180
Crankshaft P.t.o.-side
20
420819210
Crankshaft Mag.-side
21
420899785
Loctite 221 Violet
22
420297434
Loctite Anti Seize
23
420897341
Loctite 14486, 10cc
24
XXX
Multi Purpose Grease. Parts Marked With <> Are Not Available As Spare Parts
25
420899271
Klueber Petamo
26
413802900
Injection Oil (12 X 1 L)
27
293550021
Isoflex Grease, 50g
