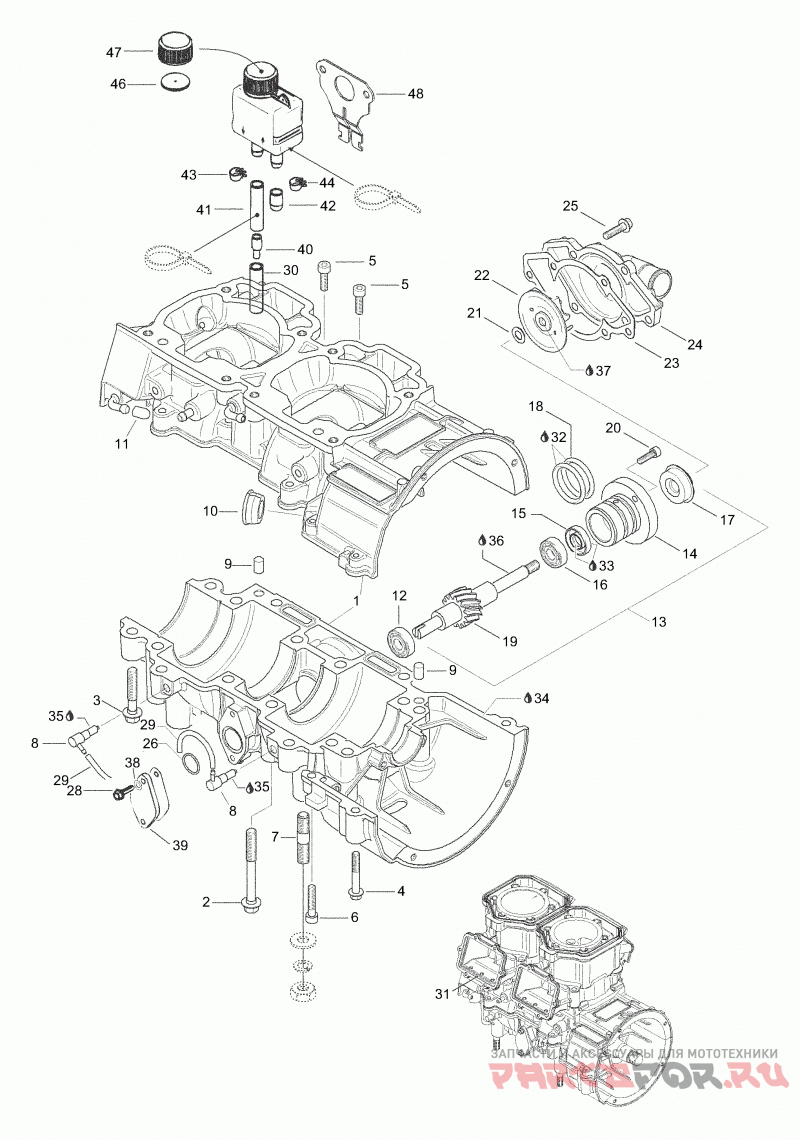

05- Crankcase

Lynx (Bombardier) Rave Cross

Lynx (Bombardier)
#oem кодцена
1
420888279
Crankcase Assy. Includes Items 1 Thru 12
2
420640836
Screw M8x75
4
420640311
Screw M6x45
5
420840401
Allen Screw M6x22
6
420840880
Allen Screw M6x30
7
420941644
Stud M10x23
8
420956510
Checkvalve Assy
9
420632010
Штифт
10
420860965
уплотнетель кабеля
11
420960770
Closure Cap
12
420232100
Подшипник
13
420837421
Waterpump/oilpump Shaft. Includes Items 13 Thru 19
14
XXX
Step Collar. Parts Marked With <> Are Not Available As Spare Parts
15
420230195
Сальник
16
420232100
Подшипник
17
420650370
Роторное Уплотнение
18
420950890
Уплотнительное кольцо
19
XXX
Waterpump/oilpump Shaft. Parts Marked With <> Are Not Available As Spare Parts
20
420840511
Allen Screw M5x16
21
420227945
Упорная шайба
22
420222505
Импиллер
23
420931810
Прокладка
24
420922630
Pump Housing
25
420240031
Screw M6x25
26
420230400
Уплотнительное кольцо
28
40026
Taptite Screw M5x12
29
414413800
Маслопровод
32
XXX
Grease. Parts Marked With <> Are Not Available As Spare Parts
33
420899271
Klueber Petamo, 250gr.
34
420297906
Sealing Compound, 310ml
35
420899788
Loctite, Green, 5gr.
36
XXX
Transmission Oil. Parts Marked With <> Are Not Available As Spare Parts
37
293800060
Loctite 243, 10ml
38
20008
Шайба
39
548957
Крышка
45
420956240
Oil Tank Assy. Includes Items 45 Thru 47
46
420850350
Прокладка
47
420956250
Крышка
48
512059199
Oil Tank Support
