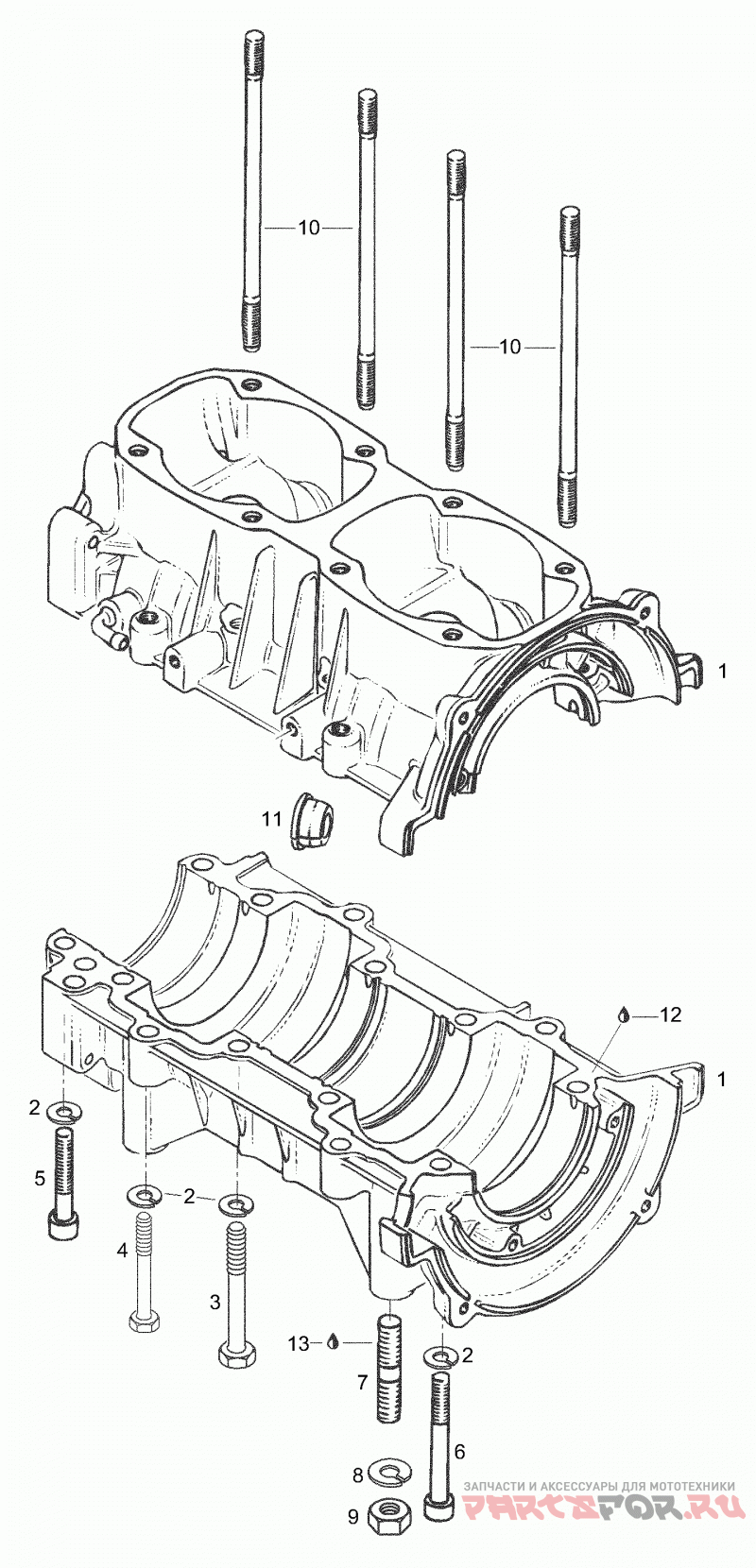

05- Crankcase
Lynx (Bombardier) Ranger FCE
| # | oem код | название | цена |
|---|---|---|---|
1 | 420888493 Crankcase Assy (ref. 11 Included). Includes Items 1 Thru 6 | Crankcase Assy (ref. 11 Included). Includes Items 1 Thru 6 | |
2 | 20014 Пружинная шайба | Пружинная шайба | |
3 | 420841201 Screw M8x70 | Screw M8x70 | |
4 | 207084544 Screw M8x45 | Screw M8x45 | |
5 | 420841561 Allen Screw M8x45 | Allen Screw M8x45 | |
6 | 420841841 Allen Screw M8x65 | Allen Screw M8x65 | |
7 | 420940190 Stud M10 | Stud M10 | |
8 | 20015 Гровер | Гровер | |
9 | 33004 Гайка М10 | Гайка М10 | |
10 | 420840556 Stud M8x173.5 | Stud M8x173.5 | |
11 | 420860962 уплотнетель кабеля | уплотнетель кабеля | |
12 | 420899784 Loct 574/orange/50 | Loct 574/orange/50 | |
13 | 420899785 Loct 221/viol/6cm3 | Loct 221/viol/6cm3 |
