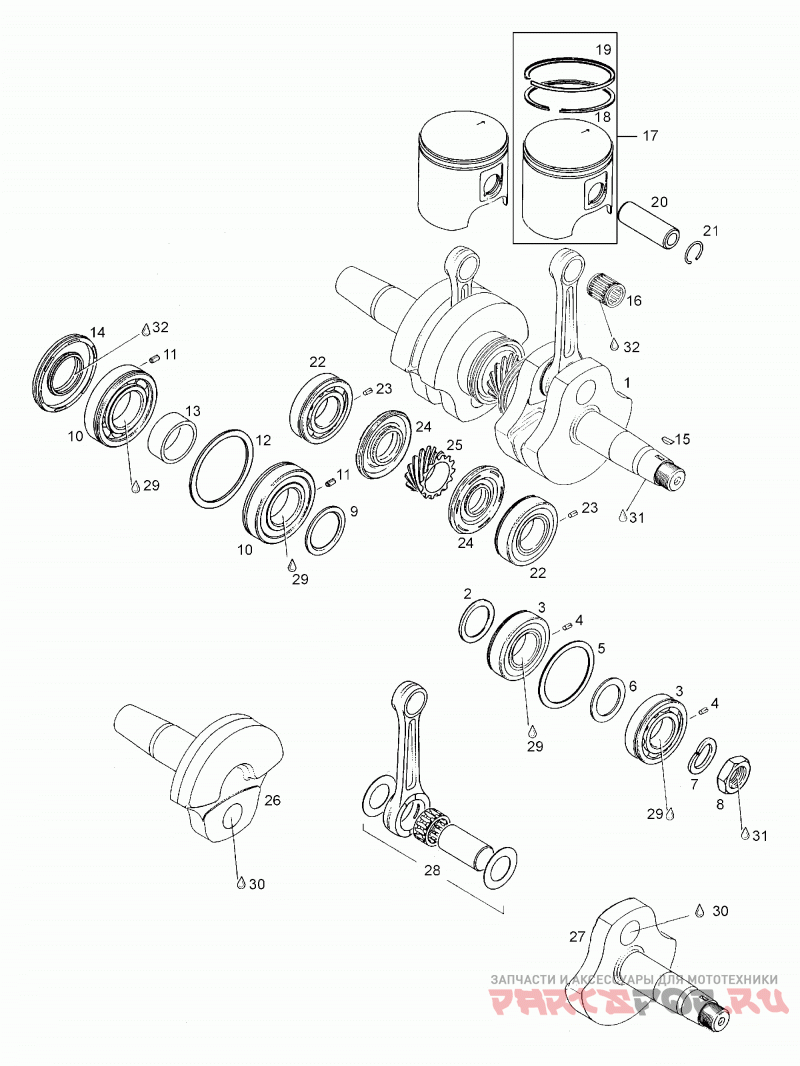

01- Crankshaft Assy

Lynx (Bombardier) G-Touring Royal

Lynx (Bombardier)
#oem кодцена
1
420887985
Crankshaft Assy. Includes Items 1 Thru 15 Notice Ref. Numbers 7 And 8 Not Included Ref. Number 1-15 Crankshaft Assy.
2
420827445
Проставка
3
420832538
Ball Bearing 6206 Assy. Includes Items 3 Thru 4
4
420929972
Drive Pin
5
420827050
Стопорный Диск
6
420427684
Шайба
7
420945759
Гровер
8
420842230
Nut M22
9
420827760
Shim, 2 Mm
10
420832574
Bearing 6207 Assy. Includes Items 10 Thru 11
11
420929972
Штифт
12
420927710
Стопорный Диск
13
420847684
Расстояние Рукавом
14
420831950
Сальник
15
420246015
Woodruff-key
16
420832425
Needle Cage
17
420887610
Piston 77.90 Mm. Includes Items 17 Thru 19
17
420887611
Piston 78.15 Mm. Includes Items 17 Thru 19
18
420815020
Retangular Ring 78.00 Mm
18
420815021
Retangular Ring 78.25mm
19
420815090
Semi-trap. Ring 78.00 Mm
19
420815091
Semi-trap. Ring 78.25mm
20
420916370
Палец поршневой
21
420845100
Пружинное стопорное кольцо
22
420832538
Bearing 6206 Assy. Includes Items 22 Thru 23
23
420929972
Drive Pin
24
420831990
Сальник
25
420935748
Central Gear 14t
26
420818704
Crankshaft Pto.-side
27
420818734
Crankshaft Mag. Side
28
420887989
Rod Repair Kit Pto.-side
28
420887988
Rod Repair Kit Mag.-side
29
420297434
Loctite Anti-seize
30
420897340
Loctite 14486
31
420899785
Loct.221/viol.
32
XXX
Bp-energrease Ls3. Parts Marked With <> Are Not Available As Spare Parts
