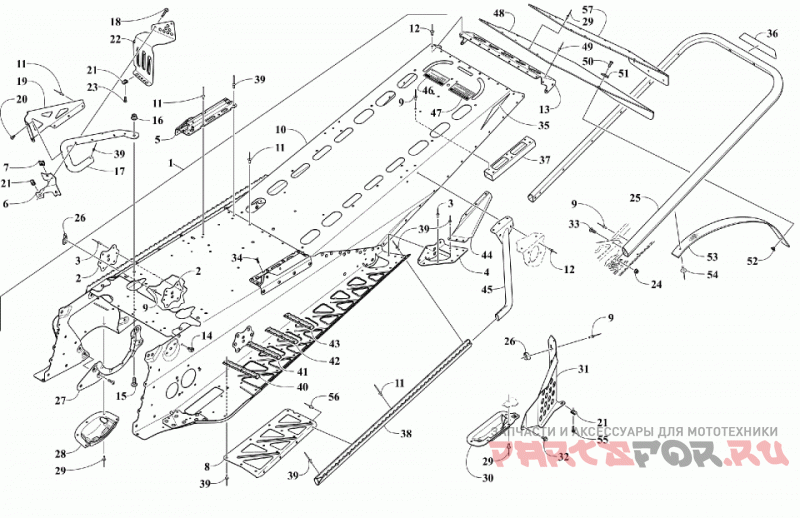

Tunnel, rear bumper, and snowflap assembly [108977]

Arctic Cat ZR 6000 R SX GREEN [S2021ACDPRUSG]

Arctic Cat
#oem кодцена
1
3707-672
Tunnel Assembly - Black (inc. 2-13)
10
3707-348
Tunnel, Rear - Black
11
1623-130
заклёпка
12
8060-682
заклёпка
13
3707-349
End Cap, Tunnel - Black
14
1623-406
Clip, Routing
15
8476-820
Screw, Machine
16
8427-802
Гайка
17
1707-637
Support, Footrest - Left - Black
17
1707-636
Support, Footrest - Right - Black
18
8468-535
Screw, Machine
19
3707-259
Toe Stop - Left - Black
19
3707-258
Toe Stop - Right - Black
2
2707-611
Plate, Backing - Front Arm - Black
20
0423-538
Screw, Self-Tapping
21
1623-637
Clip, U-Nut
22
3707-257
Footrest - Left - Black
22
3707-256
Footrest - Right - Black
23
8470-516
Screw, Machine
24
8427-602
Nut, Hex
25
3707-243
Bumper, Rear - Green
26
6606-586
Bracket, Hold-Down - Right
26
1606-441
Bracket, Hold-Down - Left
27
1607-306
Brace, Support
28
1607-109
Protector, Chain Case
29
8061-708
заклёпка
3
1623-257
заклёпка
30
2707-738
Protector, Brake Disc
31
2707-258
Shield, Brake Disc - Black
32
8408-613
Screw, Cap
33
8476-620
Screw, Machine
34
0623-165
Clip, Retaining
35
0621-990
Decal, Reflector - Red
36
5621-311
Decal, Reflector - Red
37
5706-547
Protector, Tunnel
38
2707-171
Roll, Tunnel - Left - Black
38
2707-170
Roll, Tunnel - Right - Black
39
1623-241
заклёпка
4
1607-277
Bracket, Mounting - Suspension - Left
4
1607-276
Bracket, Mounting - Suspension - Right
40
2707-614
Plate, Grip (6.5 in.) - Black
41
2707-615
Plate, Grip (6.0 in.) - Black
42
2707-616
Plate, Grip (5.7 in.) - Black
43
2707-617
Plate, Grip (5.3 in.) - Black
44
2707-619
Gusset, Running Board - Left - Black
44
2707-618
Gusset, Running Board - Right - Black
45
1707-811
Gusset, Tunnel Roll - Left - Black
45
1707-810
Gusset, Tunnel Roll - Right - Black
46
5611-853
Decal, Warning - Towing (English)
47
5611-852
Decal, Warning - Towing (French)
49
8061-706
заклёпка
5
3707-351
Bracket, Mounting - Rear Spar - Left - Black
5
3707-350
Bracket, Mounting - Rear Spar - Right - Black
50
8017-607
Screw, Machine
51
1623-242
Шайба
52
1623-608
Гайка
53
3604-157
Strap, Snowflap Restraint
54
8061-710
заклёпка
55
8470-520
Screw, Machine
56
8060-686
Rivet - Zinc
6
7606-807
Bracket, Support - Skid Plate - Left
6
7606-806
Bracket, Support - Skid Plate - Right
7
1623-939
Гайка
8
2707-613
Support, Running Board - Left - Black
8
2707-612
Support, Running Board - Right - Black
9
8060-706
заклёпка
