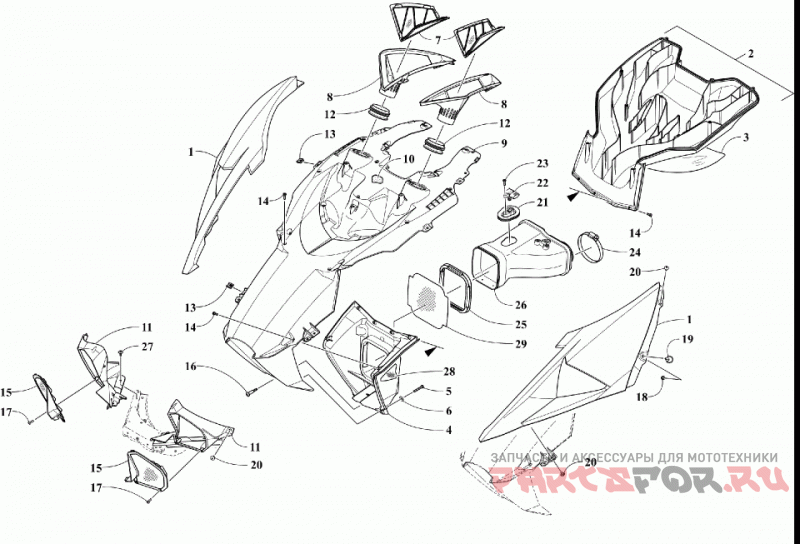

Hood and air intake assembly [107456]

Arctic Cat ZR 6000 R XC GREEN [S2019ACDCCUSG]

Arctic Cat
#oem кодцена
1
6718-145
Hood w/Decals - Left - Black (See Decals Page For Decals)
1
6718-144
Hood w/Decals - Right - Black (See Decals Page For Decals)
1
7606-759
Hood - Left - Black (inc. 3)
1
7606-758
Hood - Right - Black
10
0617-648
Foam, Intake
11
7606-259
Vent - Left
11
7606-258
Vent - Right
12
6606-386
Уплотнение
13
1623-939
Гайка
14
1623-933
Screw, Self-Tapping
15
7606-057
Bezel, Vent - Left
15
7606-056
Bezel, Vent - Right
16
2623-058
Screw, Shoulder
17
2623-211
Screw, Self-Tapping
18
2623-004
Nut, Push
19
2623-003
Pin, Retaining
2
5718-329
Plenum, Air Intake - Lower Rear - w/Foil
20
2623-164
Screw, Self-Tapping
21
2670-444
чехол
22
0824-052
Sensor, T-MAP
23
2623-016
Screw, Self-Tapping
24
0423-018
Хомут
25
0617-624
Adapter, Boot
26
1770-056
Boot, Intake
27
2623-166
Screw, Self-Tapping
28
0621-989
Decal, Reflector - Amber
29
7606-680
Экран, глушителя нижняя часть
3
7606-307
Фольга, защитная
4
5718-975
Plenum, Air Intake w/Reflector - Lower Front (inc. 28)
5
1623-929
Screw, Self-Tapping
6
8050-217
Шайба
7
0608-759
Screen, Intake Duct - Left
7
0608-758
Screen, Intake Duct - Right
8
0608-749
Duct, Intake - Left (inc. 10)
8
0608-748
Duct, Intake - Right
9
5718-328
Plenum, Intake - Upper
