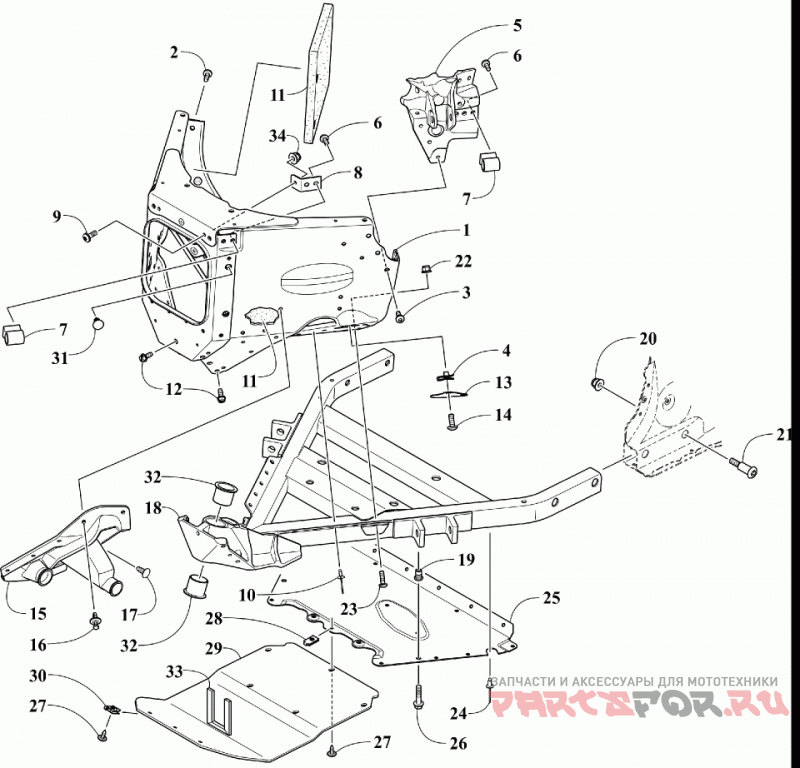

Front frame assembly [107479]

Arctic Cat ZR 6000 R SX GREEN INTERNATIONAL [S2019ACDPROSG]

Arctic Cat
#oem кодцена
1
3707-260
Panel, Front - Assembly - Black (inc. 2-5)
10
8060-706
заклёпка
11
0617-149
Foam, Front Panel - Left
11
0617-786
Foam, Front Panel - Right
12
1623-959
Screw, Self-Tapping
13
1707-568
Panel, Close-Off
14
8471-616
Screw, Machine
15
1605-029
Boot, Steering - Left
15
1605-028
Boot, Steering - Right
16
0623-362
Rivet, Reinstallable
17
0623-165
Clip, Retaining
18
3707-129
Frame, Front - Lower - w/Bushings - Black (inc. 32)
19
1623-797
Вставка
2
1623-683
Screw, Self-Tapping
20
8427-802
Гайка
21
2623-194
Screw, Shoulder
22
8427-602
Nut, Hex
23
8468-620
Screw, Machine
24
8060-686
Rivet - Zinc
25
1607-941
Belly Pan - Center
26
8408-525
Screw, Cap
27
2623-166
Screw, Self-Tapping
28
1623-052
Clip, U-Nut
29
1607-868
Панель
3
0423-538
Screw, Self-Tapping
30
1623-939
Гайка
31
1623-795
Clip, Retaining
32
1605-161
Втулка
33
0617-811
Seal, Skid Plate
34
8422-602
Гайка
4
0423-577
Clip, U-Nut
5
3707-347
Bracket, Shock Mount - Upper Left - Black
5
3707-346
Bracket, Shock Mount - Upper Right - Black
6
8413-617
Screw, Cap
7
1607-233
Bracket, Mounting - Upper A-Arm
8
1607-913
Gusset, A-Arm Mounting Bracket
9
8468-616
Screw, Machine
