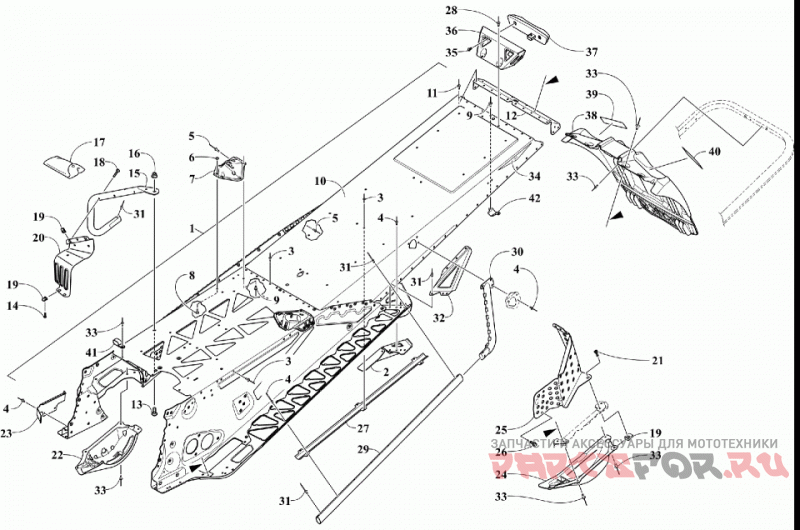

Tunnel and snowflap assembly [107642]

Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 BLACK [S2019X8HHIUSB]

Arctic Cat
#oem кодцена
0
3707-063
Complete Chassis Assembly - Black
1
3707-200
Tunnel Assembly - Black (inc. 2-12 and 29-32)
10
3707-170
Tunnel, Rear - Black
11
8060-504
заклёпка
12
1707-725
End Cap, Tunnel - Black
13
8476-820
Screw, Machine
14
8470-516
Screw, Machine
15
2707-685
Support, Footrest - Left - Black
15
2707-684
Support, Footrest - Right - Black
16
8427-802
Гайка
17
0744-089
Kit, Tool
18
8468-535
Screw, Machine
19
1623-637
Clip, U-Nut
2
2707-287
Bracket, Mounting - Suspension - Left - Black
2
2707-286
Bracket, Mounting - Suspension - Right - Black
20
1707-557
Footrest - Left - Black
20
1707-556
Footrest - Right - Black
21
8470-520
Screw, Machine
22
1607-109
Protector, Chain Case
23
0608-705
Bracket, Routing - Oil Line
24
0607-351
Protector, Brake Disc
25
2707-044
Shield, Brake Disc - Black
26
8408-613
Screw, Cap
27
0630-307
Protector, Taillight Harness
28
8060-702
Rivet - Black
29
1707-697
Roll, Tunnel - Black
3
8060-682
заклёпка
30
1707-701
Gusset, Tunnel Roll - Left - Black
30
1707-700
Gusset, Tunnel Roll - Right - Black
31
1623-241
заклёпка
32
2707-289
Gusset, Running Board - Left - Black
32
2707-288
Gusset, Running Board - Right - Black
33
8061-706
заклёпка
34
0621-990
Decal, Reflector - Red
35
8470-510
Screw, Machine
36
0730-227
Bracket, Mounting - Taillight - Black
37
0609-898
Taillight, LED
38
6606-394
Snowflap
39
5611-852
Decal, Warning - Towing (French)
4
8060-686
Rivet - Zinc
40
5611-853
Decal, Warning - Towing (English)
41
1623-762
Clamp, Routing
42
0630-292
Protector, Taillight Harness
5
1623-206
заклёпка
6
8422-502
Гайка
7
1707-693
Bracket, Mounting - Rear Spar - Left - Black
7
1707-692
Bracket, Mounting - Rear Spar - Right - Black
8
8475-512
Screw, Machine
9
1623-257
заклёпка
