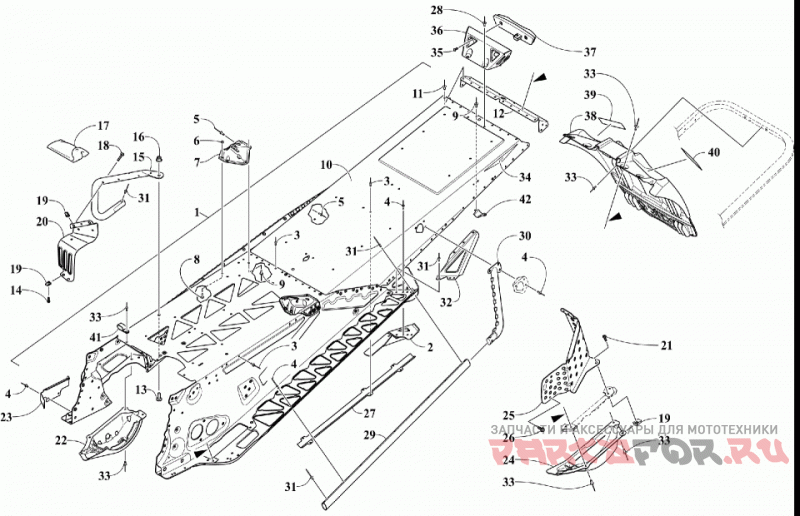

Tunnel and snowflap assembly [107232]

Arctic Cat XF 8000 HIGH COUNTRY 141 ORANGE [S2019X8HHIUSO]

Arctic Cat
#oem кодцена
0
3707-303
Complete Chassis Assembly - Orange
1
2707-998
Tunnel Assembly - Orange (inc. 2-12 and 29-32)
10
2707-988
Tunnel, Rear - Orange
11
8060-504
заклёпка
12
2707-331
End Cap, Tunnel - Orange
13
8476-820
Screw, Machine
14
8470-516
Screw, Machine
15
3707-391
Support, Footrest - Left - Orange
15
3707-390
Support, Footrest - Right - Orange
16
8427-802
Гайка
17
0744-089
Kit, Tool
18
8468-535
Screw, Machine
19
1623-637
Clip, U-Nut
2
2707-325
Bracket, Mounting - Suspension - Left - Orange
2
2707-324
Bracket, Mounting - Suspension - Right - Orange
20
2707-015
Footrest - Left Orange
20
2707-014
Footrest - Right Orange
21
8470-520
Screw, Machine
22
1607-109
Protector, Chain Case
23
0608-705
Bracket, Routing - Oil Line
24
0607-351
Protector, Brake Disc
25
2707-043
Shield, Brake Disc Orange
26
8408-613
Screw, Cap
27
0630-309
Protector, Taillight Harness
28
8060-702
Rivet - Black
29
2707-330
Roll, Tunnel - Orange
3
8060-682
заклёпка
30
2707-329
Gusset, Tunnel Roll - Left - Orange
30
2707-328
Gusset, Tunnel Roll - Right - Orange
31
1623-241
заклёпка
32
2707-987
Gusset, Running Board - Left - Orange
32
2707-986
Gusset, Running Board - Right - Orange
33
8061-706
заклёпка
34
0621-990
Decal, Reflector - Red
35
8470-510
Screw, Machine
36
0730-231
Bracket, Mounting - Taillight - Orange
37
0609-898
Taillight, LED
38
6606-394
Snowflap
39
5611-852
Decal, Warning - Towing (French)
4
8060-686
Rivet - Zinc
40
5611-853
Decal, Warning - Towing (English)
41
1623-762
Clamp, Routing
42
0630-292
Protector, Taillight Harness
5
1623-206
заклёпка
6
8422-502
Гайка
7
2707-327
Bracket, Mounting - Rear Spar - Left - Orange
7
2707-326
Bracket, Mounting - Rear Spar - Right - Orange
8
8475-512
Screw, Machine
9
1623-257
заклёпка
