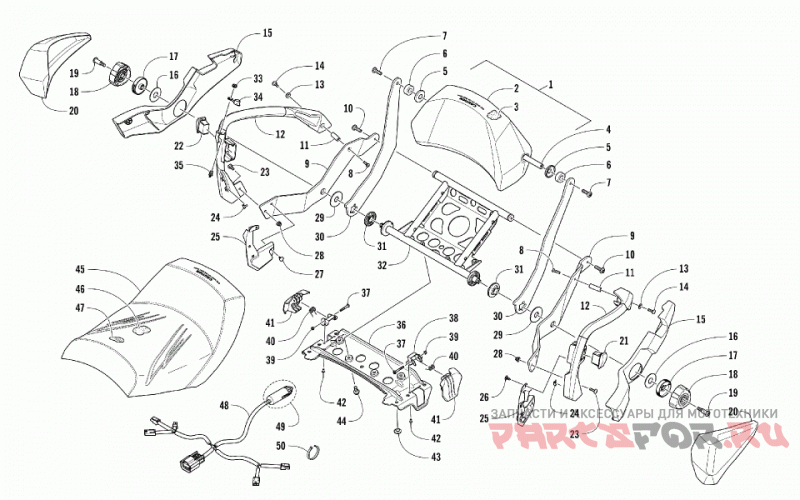

Passenger seat and backrest assembly [106811]

Arctic Cat PANTERA 7000 LTD BLACK [S2019PTULXUSB]

Passenger seat and backrest assembly [106811]

#

oem код

название

цена

1

Backrest Assembly (inc. 2-3)

Backrest Assembly (inc. 2-3)

10

Screw, Machine

Screw, Machine

11

Axle, Handhold

Axle, Handhold

12

Handhold - Left

Handhold - Left

12

Handhold - Right

Handhold - Right

13

WASHER,FLAT .25 DIA Z&BLK

WASHER,FLAT .25 DIA Z&BLK

14

SCREW,MACH-TSTRH M6X1.0X20 RIEBLK W/2510

SCREW,MACH-TSTRH M6X1.0X20 RIEBLK W/2510

15

Cover, Bracket- Handhold - Left

Cover, Bracket- Handhold - Left

15

Cover, Bracket- Handhold - Right

Cover, Bracket- Handhold - Right

16

Проставка

Проставка

17

Tensioner, Backrest

Tensioner, Backrest

18

Knob Tensioner

Knob Tensioner

19

Screw, Shoulder

Screw, Shoulder

2

Чехол спинки

Чехол спинки

20

Windguard - Left

Windguard - Left

20

Windguard - Right

Windguard - Right

21

Switch, Heated Seat

Switch, Heated Seat

22

Switch, Handwarmer

Switch, Handwarmer

23

Screw, Machine

Screw, Machine

24

Зажим

Зажим

25

Cover, Harness - Left

Cover, Harness - Left

25

Cover, Harness - Right

Cover, Harness - Right

26

Screw, Self-Tapping

Screw, Self-Tapping

27

Screw, Self-Tapping

Screw, Self-Tapping

28

Nut, Hex

Nut, Hex

29

Washer, Rubber

Washer, Rubber

3

Foam, Backrest

Foam, Backrest

30

Bracket, Backrest - Left

Bracket, Backrest - Left

30

Bracket, Backrest - Right

Bracket, Backrest - Right

31

Plate, Locking

Plate, Locking

32

Base, Seat - Passenger

Base, Seat - Passenger

33

Nut, Retaining

Nut, Retaining

34

Cover, Outlet - Shield

Cover, Outlet - Shield

35

Outlet, Heated Shield

Outlet, Heated Shield

36

Plate, Base - Passenger Seat

Plate, Base - Passenger Seat

37

Screw, Machine

Screw, Machine

38

Bracket, Latch

Bracket, Latch

39

Гайка

Гайка

4

Axle, Backrest

Axle, Backrest

40

Пружина

Пружина

41

Handle, Latch - Left

Handle, Latch - Left

41

Handle, Latch - Right

Handle, Latch - Right

42

заклёпка

заклёпка

43

BUMPER,SEAT

BUMPER,SEAT

44

Screw, Machine

Screw, Machine

45

Cover, Seat - Passenger

Cover, Seat - Passenger

46

Foam, Seat - Passenger

Foam, Seat - Passenger

47

Pad, Seat Heater

Pad, Seat Heater

48

Harness, Seat - Passenger

Harness, Seat - Passenger

49

Plug, Accessory

Plug, Accessory

5

Washer, Cup

Washer, Cup

50

Tie, Cable - 8 in

Tie, Cable - 8 in

6

Block, Tension - Backrest

Block, Tension - Backrest

7

SCREW,MACH-TSTRH M8X1.25X30 Z&BLK W/2353

SCREW,MACH-TSTRH M8X1.25X30 Z&BLK W/2353

8

Screw, Machine

Screw, Machine

9

Bracket, Mounting - Handhold - Left

Bracket, Mounting - Handhold - Left

9

Bracket, Mounting - Handhold - Right

Bracket, Mounting - Handhold - Right
