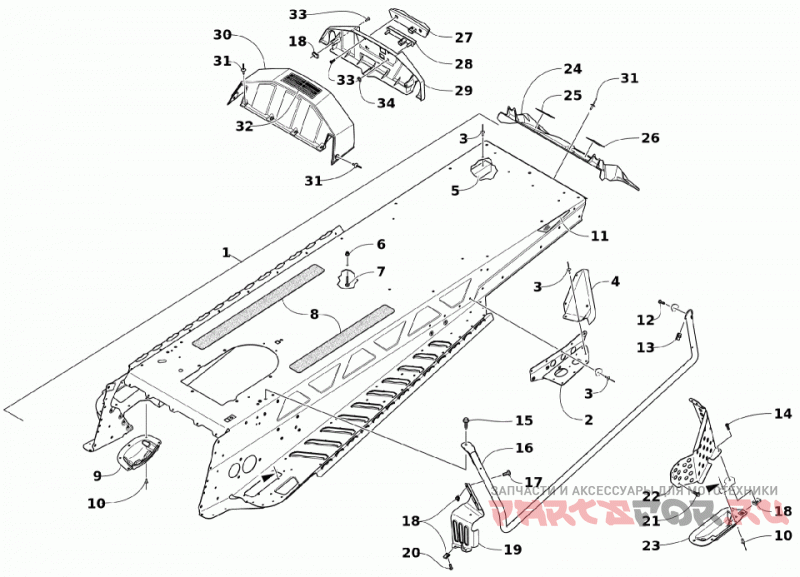

Tunnel and snowflap assembly [106158]

Arctic Cat BEARCAT 7000 XT GRAY [S2019BCUWTUSU]

Arctic Cat
#oem кодцена
0
2707-757
Chassis Assembly
1
2707-072
Tunnel Assembly (inc. 2-4)
10
8061-708
заклёпка
11
2621-933
Decal, Reflector - Left
11
2621-932
Decal, Reflector - Right
12
2623-059
Screw, Machine
13
0423-577
Clip, U-Nut
14
8470-520
Screw, Machine
15
2623-060
Screw, Cap
16
2707-071
Roll, Tunnel - Left
16
2707-070
Roll, Tunnel - Right
17
8468-535
Screw, Machine
18
1623-637
Clip, U-Nut
19
0607-997
Footrest - Left
19
0607-996
Footrest - Right
2
2707-067
Bracket, Mounting - Suspension - Left - Black
2
2707-066
Bracket, Mounting - Suspension - Right - Black
20
8470-516
Screw, Machine
21
8408-613
Screw, Cap
22
1607-346
Shield, Brake Disc
23
0607-351
Protector, Brake Disc
24
6706-111
Snowflap w/Decals (inc. 25-26)
25
5611-853
Decal, Warning - Towing (English)
26
5611-852
Decal, Warning - Towing (French)
27
0609-898
Taillight, LED
28
0609-941
Light, Reverse
29
6606-889
Close-Off, Tunnel - Inner
3
8060-686
Rivet - Zinc
30
6606-792
Close-Off, Tunnel
31
8061-706
заклёпка
32
2621-926
Decal, Capacity
33
8477-516
Screw, Machine
34
0423-357
NUT, STAMPED-1/4
4
1607-387
Close-Off, Running Board - Left
4
1607-386
Close-Off, Running Board - Right
5
1607-460
Protector, Tunnel
6
8427-602
Nut, Hex
7
1423-221
SCREW, M6X1.0 DOG-POINT
8
6606-983
Pad, Fuel Tank - Left
8
6606-982
Pad, Fuel Tank - Right
9
1607-109
Protector, Chain Case
