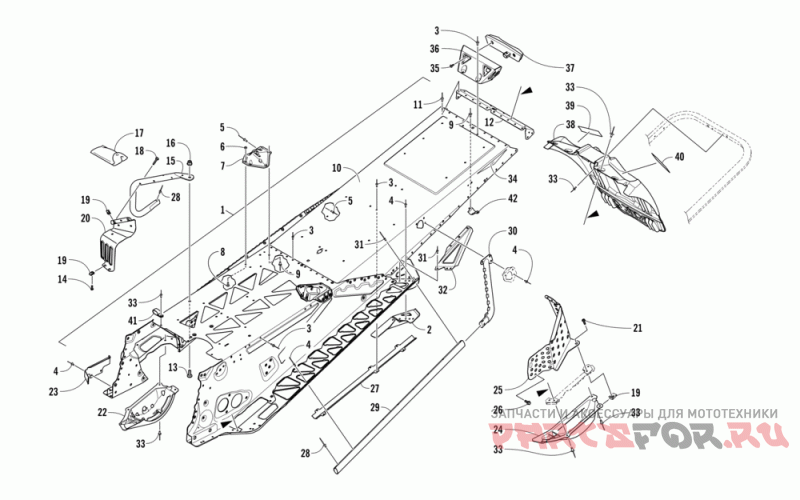

Тунель и брызговик

Arctic Cat XF 8000 HIGH COUNTRY LTD ES 141 GREEN

Arctic Cat
#oem кодцена
3707-061
Chassis, 141"-2 Strk-assy-ptd Blk
1
3707-146
Tunnel, Xf-141-s/p Assy-ptd Blk (inc. 2-12 And 29-32)
2
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk
2
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk
3
8060-682
Заклепка (20 шт в упаковке)
4
8060-686
Заклепка (10 шт в упак.)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 0.8 Nyloc - Yl Zn (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8475-512
Screw, Mach-tstrh M5x0.8x12 Z&clr (2 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
3707-144
Tunnel, Rear-141-ptd Blk
11
8060-504
Заклепка (цена за шт.(20шт в упаковке)
12
1707-725
End Cap, Tunnel-ptd Blk
13
8476-820
Винт M8x1.25x20
14
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
15
2707-684
Tube, Formed-toe Hook-rh Ptd Blk
15
2707-685
Tube, Formed-toe Hook-lh Ptd Blk
16
8427-802
Гайка M8x1.25
17
0744-089
Kit, Tool Bag-2 Stroke-assy
18
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
1707-556
Toe Stop, Rh - Formed-ptd Blk
20
1707-557
Toe Stop, Lh - Formed-ptd Blk
21
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
22
1607-109
Protector, Chain Case
23
0608-705
Brkt, Routing-oil Line
24
0607-351
Protector, Brake Disc-bottom
25
2707-044
Cover, Shield-brake Disc-ptd Blk
26
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
27
0630-307
Protector, Taillight Harness-153/162"
28
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
29
1707-697
Edge, Running Board-ptd Blk
30
1707-700
Gusset, Tunnel-rh-ptd Blk
30
1707-701
Gusset, Tunnel-lh-ptd Blk
31
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
32
2707-288
Gusset, Running Board-rh-ptd Blk
32
2707-289
Gusset, Running Board-lh-ptd Blk
33
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
34
0621-990
Decal, Reflector-red
35
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
36
0730-227
Housing, Taillight-ptd Blk
37
0609-898
Taillight, Red
38
6606-394
Flap, Snow-mtn-blk
39
5611-852
Наклейка предупреждения
40
5611-853
Наклейка предупреждения (английский)
41
1623-762
Зажим
42
0630-292
Protector, Taillight Harness-26.5mm
