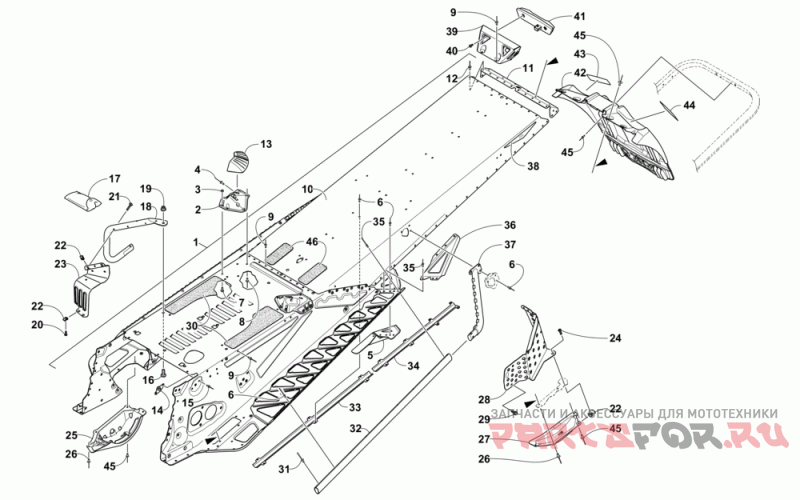

Тунель и брызговик

Arctic Cat M 9000 KING CAT 162 BLACK EARLY BUILD

Arctic Cat
#oem кодцена
-
2707-647
Chassis, 162" Turbo-ptd Blk
1
3707-133
Tunnel, Turbo-162" S/p Assy-ptd Blk (inc. 2-13)
2
1707-692
Brkt, Spar Support-rh-ptd Blk
2
1707-693
Brkt, Spar Support-lh-ptd Blk
3
8422-502
Nut, M5 X 0.8 Nyloc - Yl Zn (8 Per Pack)
4
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
5
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk
5
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk
6
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
7
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
8
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
9
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
10
2707-968
Tunnel, Rear-162"-ptd Blk
11
1707-725
End Cap, Tunnel-ptd Blk
12
8060-482
Rivet, Blind-dh Ss52 Zinc (20 Per Pack)
13
6606-664
Mount, Fuel Tank-rubber-rh
13
6606-665
Mount, Fuel Tank-rubber-lh
14
0608-631
Plate, Nut-pto-eng/chassis
15
8060-708
Заклепка (10 шт в упаковке)
16
8476-820
Винт M8x1.25x20
17
0744-088
Kit, Tool Bag-4 Stroke-assy
18
2707-870
Hook, Toe-rh Ptd Blk
18
2707-871
Hook, Toe-lh Ptd Blk
19
8427-802
Гайка M8x1.25
20
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
21
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
2707-658
Toe Stop, Rh-ptd Blk
23
2707-659
Toe Stop, Lh-ptd Blk
24
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
25
1607-646
Protector, Chain Case
26
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
27
1607-645
Protector, Brake Disc-bottom
28
2707-904
Cover, Shield-brake Disc-ptd Blk
29
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
30
6606-814
Pad, Fuel Tank Mount-rh
30
6606-815
Pad, Fuel Tank Mount-lh
31
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
32
1707-697
Edge, Running Board-ptd Blk
33
0630-307
Protector, Taillight Harness-153/162"
34
0630-280
Protector, Taillight Harness-448.5mm
35
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
36
2707-288
Gusset, Running Board-rh-ptd Blk
36
2707-289
Gusset, Running Board-lh-ptd Blk
37
1707-700
Gusset, Tunnel-rh-ptd Blk
37
1707-701
Gusset, Tunnel-lh-ptd Blk
38
0621-990
Decal, Reflector-red
39
0730-227
Housing, Taillight-ptd Blk
40
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
41
0609-898
Taillight, Red
42
6606-394
Flap, Snow-mtn-blk
43
5611-853
Наклейка предупреждения (английский)
44
5611-852
Наклейка предупреждения
45
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
46
6606-877
Pad, Rubber-45 X 110 X 1.6
