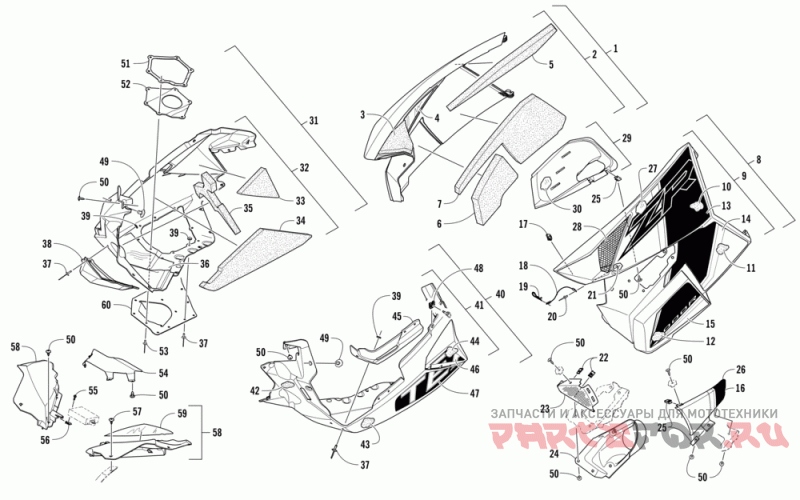

Поддон и обтекатели

Arctic Cat ZR 8000 RR ES 129 GREEN

Arctic Cat
#oem кодцена
1
5718-172
Panel,side-ta Grn-rh W/decals (8000) (inc. 2-7, 13-15, And 18-21)
2
3718-858
Panel, Side-rh W/foam-ta Grn(2 Stroke) (inc. 3-7 And 18-21)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
5718-173
Panel, Side-ta Grn-lh W/decals (8000) (inc. 9-15 And 17-21)
9
4718-577
Panel, Side-lh W/foam-ta Grn (inc. 10-12 And 17-21)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-681
Foam, Lwr Side Panel-frt-lh
13
3621-134
Decal, Side Panel-upr Rh
13
3621-135
Decal, Side Panel-upr Lh
14
3621-382
Decal, Side Panel-lwr Rh
14
3621-383
Decal, Side Panel-lwr Lh
15
3621-380
Decal, Side Panel-fwd Rh 8000
15
3621-381
Decal, Side Panel-fwd Lh 8000
16
2621-903
Decal, Side Panel-mid Vent Lh
17
1623-637
Clip, U-nut (m5) (4 Per Pack)
18
0607-447
Трос шпильки
19
0605-283
Hairpin, Cotter (5 Per Pack)
20
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
21
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
22
1623-052
Nut, U (2 Per Pack)
23
6606-925
Решетка заборная
24
2602-794
Duct, Intake-inner
25
1623-030
Гайка (6 шт в упаковке)
26
2602-801
Duct, Intake-outer-ta Grn
27
0619-206
Tape, Alum Foil - 6" X 30 Ft Optional
28
5706-531
Screen, Side Panel-upr Lh-ptd Blk Optional
29
1702-369
Duct, Air-clutch W/foil (inc. 30)
30
6606-694
Foil, Clutch Duct-2 Stroke
31
5718-148
Plate, Skid-rh Blk-w/decal (inc. 32-39 And 46-47)
32
4718-158
Plate, Skid-blk-rh W/foam (dsi) (inc. 33-39)
33
0617-640
Foam, Skid Plate-rear-rh
34
0617-638
Foam, Skid Plate-middle-rh
35
0617-636
Foam, Skid Plate-frt-rh
36
2612-970
Foil, Skid Plate-rh
37
8061-708
Заклепка -черная (отпуск по 10 шт )
38
2612-754
Shield, Resonator-skid Plate
39
0123-802
Шайба (отпускается по 4 шт)
40
4718-993
Plate,skid-blk-lh-w/decal (inc. 37, 39, And 41-47)
41
3718-789
Plate,skid-rear Lh W/foam (inc. 37, 39, And 42-45)
42
0617-637
Foam, Skid Plate-frt-lh
43
0617-639
Foam, Skid Plate-middle-lh
44
0617-641
Foam, Skid Plate-rear-lh
45
6606-613
Retainer, Tab-side Panel
46
3621-124
Decal, Skid-rear Rh
46
3621-125
Decal, Skid-rear Lh
47
3621-126
Decal, Skid-forward Rh
47
3621-127
Decal, Skid-forward Lh
48
2623-005
Clip, Receptacle-1/4 Turn Stud
49
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
50
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
51
2612-972
Plate, Exhaust Outlet
52
2612-971
Seal, Exhaust Outlet-cwi
53
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
54
6606-295
Shield, Heat-ecu
55
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
56
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
57
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
58
6606-342
Panel, Filler-rh-blk
58
3718-303
Panel, Filler W/foil-lh (inc. 59)
59
6606-405
Foil, Protective-filler Panel-lh
