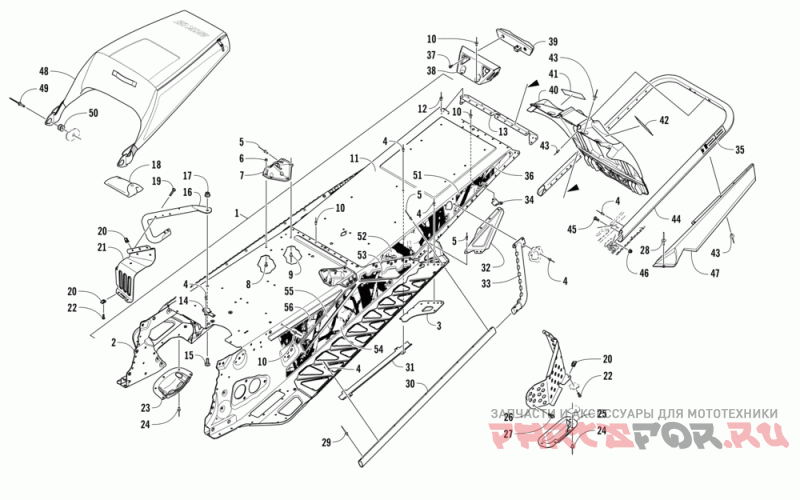

Тунель ,задний бампер и брызговик

Arctic Cat ZR 8000 LTD ES 129 ORANGE

Arctic Cat
#oem кодцена
-
1707-793
Chassis-128" 2 Strk-assy-ptd Wht
1
1707-914
Tunnel, Hp-s/p Assy-ptd Wht (inc. 2-13)
2
1707-911
Tunnel, Front-assy-ptd Wht (inc. 3-4)
3
1707-918
Brkt, Rear Susp-outer Rh-ptd Wht
3
1707-919
Brkt, Rear Susp-outer Lh-ptd Wht
4
8060-686
Заклепка (10 шт в упак.)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-904
Brkt, Spar Support-rh-ptd Wht
7
1707-905
Brkt, Spar Support-lh-ptd Wht
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-682
Заклепка (20 шт в упаковке)
11
1707-837
Tunnel, Rear-128-ptd Wht
12
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
13
1707-834
End Cap, Tunnel-ptd Wht
14
0645-709
Clip, Battery Cable (2 Per Pack)
15
8476-820
Винт M8x1.25x20
16
1707-454
Hook, Toe-rh Ptd Blk
16
1707-455
Hook, Toe-lh Ptd Blk
17
8427-802
Гайка M8x1.25
18
0744-087
Kit, Tool Bag-2 Stroke-assy
19
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
1707-802
Toe Stop, Rh - Formed-ptd Wht
21
1707-803
Toe Stop, Lh - Formed-ptd Wht
22
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
23
1607-109
Protector, Chain Case
24
8061-708
Заклепка -черная (отпуск по 10 шт )
25
0607-351
Protector, Brake Disc-bottom
26
2707-084
Cover, Shield-brk Disc-ptd Wht
27
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
28
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
29
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
30
1707-899
Edge, Running Board-ptd Wht
31
0630-308
Protector, Taillight Harness-128"
32
1707-906
Gusset, Running Board-rh-ptd Wht
32
1707-907
Gusset, Running Board-lh-ptd Wht
33
1707-908
Gusset, Tunnel-rh-ptd Wht
33
1707-909
Gusset, Tunnel-lh-ptd Wht
34
0630-292
Protector, Taillight Harness-26.5mm
35
3621-402
Decal, Rear Bumper-129"
36
0621-990
Decal, Reflector-red
37
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
38
0730-228
Housing, Taillight-ptd Wht White
39
0609-898
Taillight, Red
40
6606-394
Flap, Snow-mtn-blk
41
5611-852
Decal, Warning-towing/track-french (french)
42
5611-853
Decal, Warning-towing/track-english (english)
43
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
44
2707-581
Bumper, Rear-129"-ptd-orn
45
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
46
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
47
6606-870
Flare, Tunnel-rh Blk
47
6606-871
Flare, Tunnel-lh Blk
48
6606-600
Saddlebag, Rear
49
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
50
1623-940
Grommet, Seat Bag (4 Per Pack)
51
3621-384
Decal, Tunnel-rh 1-129"
51
3621-385
Decal, Tunnel-lh 1-129"
52
3621-386
Decal, Tunnel-rh 2
52
3621-387
Decal, Tunnel-lh 2
53
3621-388
Decal, Tunnel-rh 3
53
3621-389
Decal, Tunnel-lh 3
54
3621-390
Decal, Tunnel-rh 4
54
3621-391
Decal, Tunnel-lh 4
55
3621-392
Decal, Tunnel-rh 5
55
3621-393
Decal, Tunnel-lh 5
56
3621-394
Decal, Tunnel-rh 6
56
3621-395
Decal, Tunnel-lh 6
