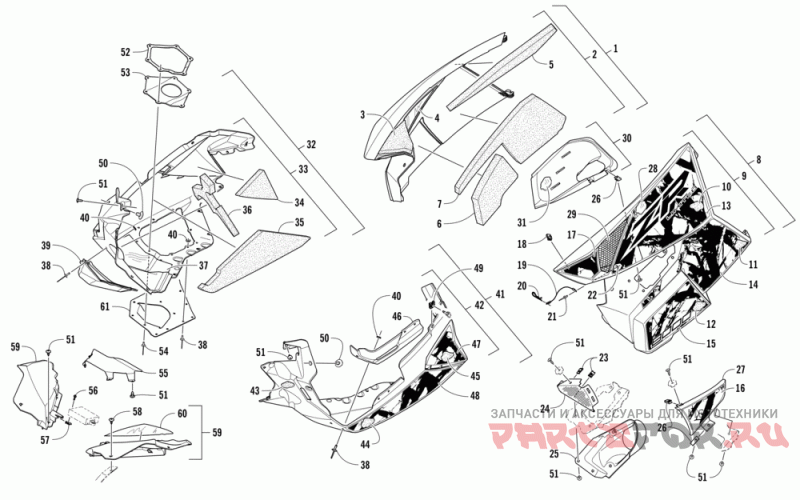

Поддон и обтекатели

Arctic Cat ZR 8000 LTD ES 129 ORANGE

Arctic Cat
#oem кодцена
1
5718-202
Panel,side-wht-rh W/decals (zr 8 Ltd) (inc. 2-7, 13-17, And 19-22)
2
3718-438
Panel, Side-rh Wht-w/foam-2 Strk (inc. 3-7 And 19-22)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
5718-203
Panel, Side-wht-lh W/decals (zr 8 Ltd) (inc. 9-22)
9
4718-555
Panel, Side-lh-w/foam-wht (inc. 10-12 And 18-22)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-681
Foam, Lwr Side Panel-frt-lh
13
3621-412
Decal, Side Panel-upr Rh "zr"
13
3621-413
Decal, Side Panel-upr Lh "zr"
14
3621-414
Decal, Side Panel-lwr Rh
14
3621-415
Decal, Side Panel-lwr Lh
15
3621-406
Decal, Side Panel-fwd Rh 8000
15
3621-407
Decal, Side Panel-fwd Lh 8000
16
3621-410
Decal, Side Panel-mid Rh
16
3621-419
Decal, Side Panel-vent Lh
17
3621-408
Decal, Side Panel-upr Fwd Rh
17
3621-409
Decal, Side Panel-upr Fwd Lh
18
1623-637
Clip, U-nut (m5) (4 Per Pack)
19
0607-447
Трос шпильки
20
0605-283
Hairpin, Cotter (5 Per Pack)
21
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
22
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
23
1623-052
Nut, U (2 Per Pack)
24
6606-925
Решетка заборная
25
2602-794
Duct, Intake-inner
26
1623-030
Гайка (6 шт в упаковке)
27
2602-803
Duct, Intake-outer-wht
28
0619-206
Tape, Alum Foil - 6" X 30 Ft Optional
29
5706-531
Screen, Side Panel-upr Lh-ptd Blk Optional
30
1702-369
Duct, Air-clutch W/foil (inc. 31)
31
6606-694
Foil, Clutch Duct-2 Stroke
33
5718-198
Plate, Skid-rh Wht-w/foam (inc. 34-38 And 40)
34
0617-640
Foam, Skid Plate-rear-rh
35
0617-638
Foam, Skid Plate-middle-rh
36
0617-636
Foam, Skid Plate-frt-rh
37
2612-970
Foil, Skid Plate-rh
38
8061-688
Rivet, Blind-lf Ss66 Zinc (10 Per Pack)
39
2612-754
Shield, Resonator-skid Plate
40
0123-802
Шайба (отпускается по 4 шт)
41
5718-159
Plate,skid-lh-w/decal (ltd Wht) (inc. 38, 40, And 42-48)
42
4718-533
Plate,skid-lh-w/foam-wht (inc. 38, 40, And 43-46)
43
0617-637
Foam, Skid Plate-frt-lh
44
0617-639
Foam, Skid Plate-middle-lh
45
0617-641
Foam, Skid Plate-rear-lh
46
6606-613
Retainer, Tab-side Panel
47
3621-396
Decal, Skid-rear Rh
47
3621-397
Decal, Skid-rear Lh
48
3621-398
Decal, Skid-fwd Rh
48
3621-399
Decal, Skid-fwd Lh
49
2623-005
Clip, Receptacle-1/4 Turn Stud
50
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
51
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
52
2612-972
Plate, Exhaust Outlet
53
2612-971
Seal, Exhaust Outlet-cwi
54
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
55
6606-295
Shield, Heat-ecu
56
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
57
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
58
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
59
6606-342
Panel, Filler-rh-blk
59
3718-303
Panel, Filler W/foil-lh (inc. 60)
60
6606-405
Foil, Protective-filler Panel-lh
61
1712-963
Deflector, Exhaust Outlet-ptd Blk
