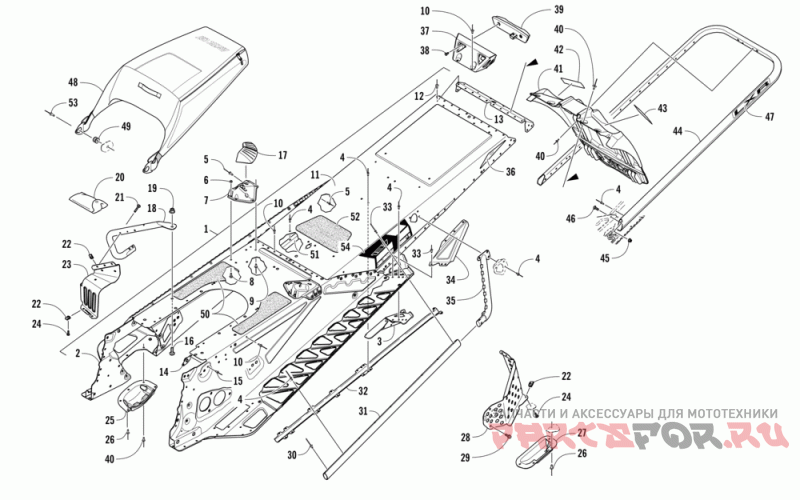

Тунель ,задний бампер и брызговик

Arctic Cat ZR 7000 LXR 137 BLACK

Arctic Cat
#oem кодцена
-
2707-083
Chassis, 137/141" Omwd-spr Assy
1
2707-383
Tunnel, Xf7-137-s/p Assy (inc. 2-13 And 34)
2
1707-952
Chassis, Hp5-spr Assy (inc. 3-4)
3
1607-332
Brkt, Rear Susp-outer Rh
3
1607-333
Brkt, Rear Susp-outer Lh
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-644
Brkt, Spar Support-rh-mach
7
1707-645
Brkt, Spar Support-lh-mach
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
1607-395
Tunnel, Rear-141" -plain
12
8060-504
Заклепка (цена за шт.(20шт в упаковке)
13
1607-104
Close Off, Tunnel-mc
14
0608-631
Plate, Nut-pto-eng/chassis
15
8060-708
Заклепка (10 шт в упаковке)
16
8476-820
Винт M8x1.25x20
17
6606-664
Mount, Fuel Tank-rubber-rh
17
6606-665
Mount, Fuel Tank-rubber-lh
18
1707-454
Hook, Toe-rh Ptd Blk
18
1707-455
Hook, Toe-lh Ptd Blk
19
8427-802
Гайка M8x1.25
20
0744-088
Kit, Tool Bag-4 Stroke-assy
21
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
0607-996
Toe Stop, Rh - Formed
23
0607-997
Toe Stop, Lh - Formed
24
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
25
1607-109
Protector, Chain Case
26
8061-708
Заклепка -черная (отпуск по 10 шт )
27
0607-351
Protector, Brake Disc-bottom
28
1607-371
Cover, Shield-brake Disc
29
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
30
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
31
1607-092
Edge, Running Board-mach
32
0630-316
Protector, Taillight Harness-141"
33
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
34
1607-162
Gusset, Running Board-rh
34
1607-163
Gusset, Running Board-lh
35
1607-040
Gusset, Tunnel-rh
35
1607-041
Gusset, Tunnel-lh
36
0621-990
Decal, Reflector-red
37
0630-328
Housing, Taillight
38
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
39
0609-898
Taillight, Red
40
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
41
6606-394
Flap, Snow-mtn-blk
42
5611-853
Наклейка предупреждения (английский)
43
5611-852
Наклейка предупреждения
44
2707-585
Bumper, Rear-137/141"-ptd-wht
45
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
46
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
47
3621-245
Decal, Rear Bumper-lxr
48
7606-069
Saddlebag, Rear-7000 Ac
49
1623-940
Grommet, Seat Bag (4 Per Pack)
50
6606-814
Pad, Fuel Tank Mount-rh
50
6606-815
Pad, Fuel Tank Mount-lh
51
1607-455
Protector, Tunnel-lasered 137"/141"
52
6606-816
Pad, Tunnel-fuel Tank
53
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
54
3621-248
Decal, Tunnel-rh "137"
54
3621-249
Decal, Tunnel-lh "137"
