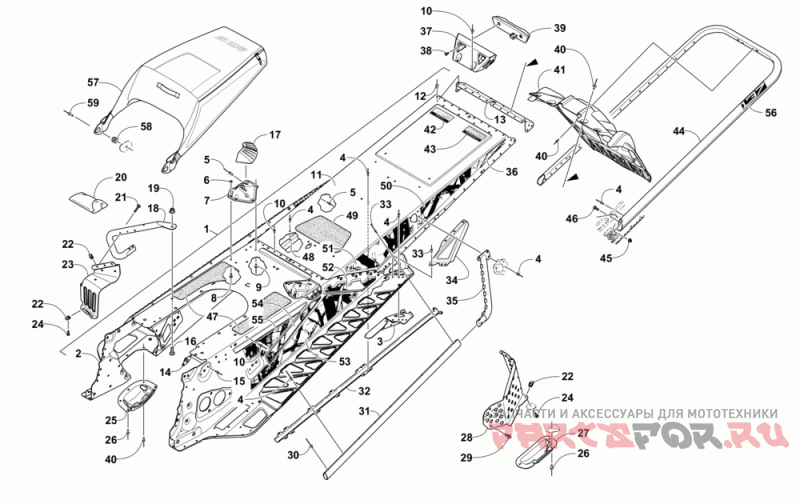

Тунель ,задний бампер и брызговик

Arctic Cat ZR 7000 LTD 137 ORANGE

Arctic Cat
#oem кодцена
-
2707-081
Chassis, 137/141" 4 Strk 5-ptd Wht Omwd
1
2707-393
Tunnel, Xf7-137-s/p Assy-ptd Wht (inc. 2-13 And 34)
2
2707-391
Tunnel, Front-xf7-s/p Assy-ptd Wht (inc. 3-4)
3
2707-246
Brkt, Rear Susp-outer-rh-ptd Wht
3
2707-247
Brkt, Rear Susp-outer-lh-ptd Wht
4
8060-686
Заклепка (10 шт в упак.)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-904
Brkt, Spar Support-rh-ptd Wht
7
1707-905
Brkt, Spar Support-lh-ptd Wht
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-682
Заклепка (20 шт в упаковке)
11
2707-377
Tunnel, Rear-141-ptd Wht
12
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
13
1707-834
End Cap, Tunnel-ptd Wht
14
0608-631
Plate, Nut-pto-eng/chassis
15
8060-688
Заклепка (отпускается по 10 шт)
16
8476-820
Винт M8x1.25x20
17
6606-664
Mount, Fuel Tank-rubber-rh
17
6606-665
Mount, Fuel Tank-rubber-lh
18
1707-800
Hook, Toe-rh-ptd White
18
1707-801
Hook, Toe-lh-ptd Wht
19
8427-802
Гайка M8x1.25
20
0744-088
Kit, Tool Bag-4 Stroke-assy
21
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
1707-803
Toe Stop, Lh - Formed-ptd Wht
24
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
25
1607-109
Protector, Chain Case
26
8061-708
Заклепка -черная (отпуск по 10 шт )
27
0607-351
Protector, Brake Disc-bottom
28
2707-084
Cover, Shield-brk Disc-ptd Wht
29
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
30
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
31
1707-899
Edge, Running Board-ptd Wht
32
0630-316
Protector, Taillight Harness-141"
33
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
34
1707-906
Gusset, Running Board-rh-ptd Wht
34
1707-907
Gusset, Running Board-lh-ptd Wht
35
1707-908
Gusset, Tunnel-rh-ptd Wht
35
1707-909
Gusset, Tunnel-lh-ptd Wht
36
0621-990
Decal, Reflector-red
37
0730-228
Housing, Taillight-ptd Wht White
38
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
39
0609-898
Taillight, Red
40
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
41
6606-394
Flap, Snow-mtn-blk
42
5611-853
Наклейка предупреждения (английский)
43
5611-852
Наклейка предупреждения
44
2707-587
Bumper, Rear-137/141"-ptd-orn Orange
45
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
46
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
47
6606-814
Pad, Fuel Tank Mount-rh
47
6606-815
Pad, Fuel Tank Mount-lh
48
1607-455
Protector, Tunnel-lasered 137"/141"
49
6606-816
Pad, Tunnel-fuel Tank
50
3621-548
Decal, Tunnel-rh 1-137"
50
3621-549
Decal, Tunnel-lh 1-137"
51
3621-386
Decal, Tunnel-rh 2
51
3621-387
Decal, Tunnel-lh 2
52
3621-388
Decal, Tunnel-rh 3
52
3621-389
Decal, Tunnel-lh 3
53
3621-390
Decal, Tunnel-rh 4
53
3621-391
Decal, Tunnel-lh 4
54
3621-392
Decal, Tunnel-rh 5
54
3621-393
Decal, Tunnel-lh 5
55
3621-394
Decal, Tunnel-rh 6
55
3621-395
Decal, Tunnel-lh 6
56
3621-403
Decal, Rear Bumper-137"
57
7606-069
Saddlebag, Rear-7000 Ac
58
1623-940
Grommet, Seat Bag (4 Per Pack)
59
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
