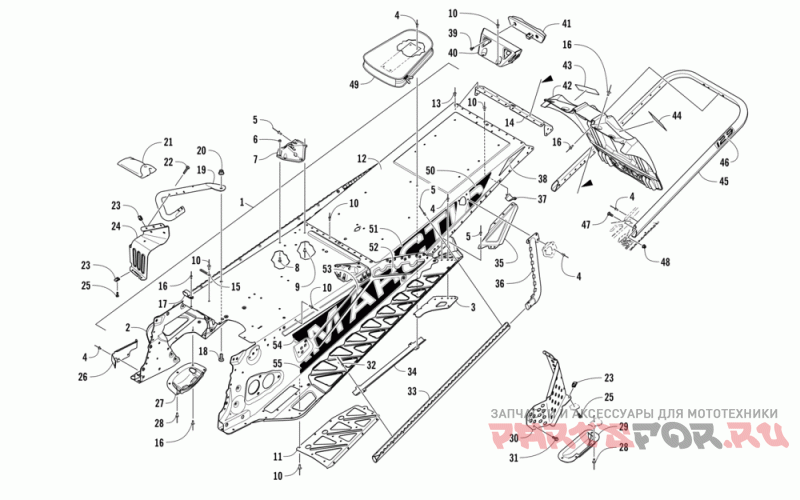

Тунель ,задний бампер и брызговик

Arctic Cat ZR 6000 RR ES 129 GREEN

Arctic Cat
#oem кодцена
-
1707-930
Chassis-128" 2 Strk Rr-ptd Blk
1
2707-178
Tunnel, Hp-rr S/p Assy-ptd Blk (inc. 2-14)
2
2707-177
Tunnel, Front-rr S/p Assy-ptd Blk (inc. 3-4)
3
1707-916
Brkt, Rear Susp-outer Rh-ptd Blk
3
1707-917
Brkt, Rear Susp-outer Lh-ptd Blk
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-172
Support, Running Board-rh-ptd Blk
11
2707-173
Support, Running Board-lh-ptd Blk
12
1707-835
Tunnel, Rear-128-ptd Blk
13
8060-502
Rivet, Blind-dh Ss52-blk (10 Per Pack)
14
1707-725
End Cap, Tunnel-ptd Blk
15
1623-984
Зажим (2 шт в упаковке)
16
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
17
1623-762
Зажим
18
8476-820
Винт M8x1.25x20
19
1707-454
Hook, Toe-rh Ptd Blk
19
1707-455
Hook, Toe-lh Ptd Blk
20
8427-802
Гайка M8x1.25
21
0744-087
Kit, Tool Bag-2 Stroke-assy
22
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
1707-556
Toe Stop, Rh - Formed-ptd Blk
24
1707-557
Toe Stop, Lh - Formed-ptd Blk
25
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
26
0608-705
Brkt, Routing-oil Line
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
2707-044
Cover, Shield-brake Disc-ptd Blk
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
33
2707-170
Roll, Tunnel-rh-ptd Blk
33
2707-171
Roll, Tunnel-lh-ptd Blk
34
0630-308
Protector, Taillight Harness-128"
35
1707-698
Gusset, Running Board-rh-ptd Blk
35
1707-699
Gusset, Running Board-lh-ptd Blk
36
1707-700
Gusset, Tunnel-rh-ptd Blk
36
1707-701
Gusset, Tunnel-lh-ptd Blk
37
0630-292
Protector, Taillight Harness-26.5mm
38
0621-990
Decal, Reflector-red
39
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
40
0730-227
Housing, Taillight-ptd Blk
41
0609-898
Taillight, Red
42
6606-394
Flap, Snow-mtn-blk
43
5611-852
Наклейка предупреждения
44
5611-853
Наклейка предупреждения (английский)
45
2707-580
Bumper, Rear-129"-ptd-ta Grn
46
2621-298
Decal, Rear Bumper-129" Grn
47
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
48
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
49
6606-615
Bag, Belt
50
2621-984
Decal, Tunnel-rh 1
50
2621-985
Decal, Tunnel-lh 1
51
2621-986
Decal, Tunnel-rh 2
51
2621-987
Decal, Tunnel-lh 2
52
2621-988
Decal, Tunnel-rh 3
52
2621-989
Decal, Tunnel-lh 3
53
2621-992
Decal, Tunnel-rh 5
53
2621-993
Decal, Tunnel-lh 5
54
2621-994
Decal, Tunnel-rh 6
54
2621-995
Decal, Tunnel-lh 6
55
2621-990
Decal, Tunnel-rh 4
55
2621-991
Decal, Tunnel-lh 4
