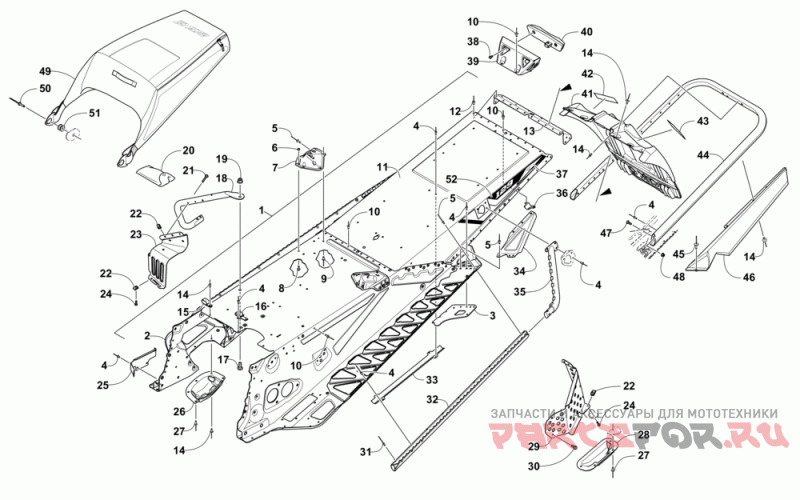

Тунель ,задний бампер и брызговик

Arctic Cat ZR 6000 LTD ES 129 BLACK

Arctic Cat
#oem кодцена
-
1707-825
Chassis, 128" 2 Strk-assy Ptd Blk
1
1707-913
Tunnel, Hp-s/p Assy-ptd Blk (inc. 2-13)
2
1707-910
Tunnel, Front-assy-ptd Blk (inc. 3-4)
3
1707-916
Brkt, Rear Susp-outer Rh-ptd Blk
3
1707-917
Brkt, Rear Susp-outer Lh-ptd Blk
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
1707-835
Tunnel, Rear-128-ptd Blk
12
8060-504
Заклепка (цена за шт.(20шт в упаковке)
13
1707-725
End Cap, Tunnel-ptd Blk
14
8061-686
Rivet, Blind-lf Ss64 Zinc (10 Per Pack)
15
1623-762
Зажим
16
0645-709
Clip, Battery Cable (2 Per Pack)
17
8476-820
Винт M8x1.25x20
18
1707-454
Hook, Toe-rh Ptd Blk
18
1707-455
Hook, Toe-lh Ptd Blk
19
8427-802
Гайка M8x1.25
20
0744-087
Kit, Tool Bag-2 Stroke-assy
21
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
1707-556
Toe Stop, Rh - Formed-ptd Blk
23
1707-557
Toe Stop, Lh - Formed-ptd Blk
24
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
25
0608-705
Brkt, Routing-oil Line
26
1607-109
Protector, Chain Case
27
8061-708
Заклепка -черная (отпуск по 10 шт )
28
0607-351
Protector, Brake Disc-bottom
29
2707-044
Cover, Shield-brake Disc-ptd Blk
30
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
31
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
32
1707-697
Edge, Running Board-ptd Blk
33
0630-308
Protector, Taillight Harness-128"
34
1707-698
Gusset, Running Board-rh-ptd Blk
34
1707-699
Gusset, Running Board-lh-ptd Blk
35
1707-700
Gusset, Tunnel-rh-ptd Blk
35
1707-701
Gusset, Tunnel-lh-ptd Blk
36
0630-292
Protector, Taillight Harness-26.5mm
37
0621-990
Decal, Reflector-red
38
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
39
0730-227
Housing, Taillight-ptd Blk
40
0609-898
Taillight, Red
41
6606-394
Flap, Snow-mtn-blk
42
5611-852
Decal, Warning-towing/track-french (french)
43
5611-853
Decal, Warning-towing/track-english (english)
44
2707-580
Bumper, Rear-129"-ptd-ta Grn
45
2621-298
Decal, Rear Bumper-129" Grn
46
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
47
6606-870
Flare, Tunnel-rh Blk
47
6606-871
Flare, Tunnel-lh Blk
48
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
49
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
50
6606-600
Saddlebag, Rear
51
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
52
1623-940
Grommet, Seat Bag (4 Per Pack)
53
3621-940
Decal, Tunnel-rh 129"
53
3621-941
Decal, Tunnel-lh 129"
