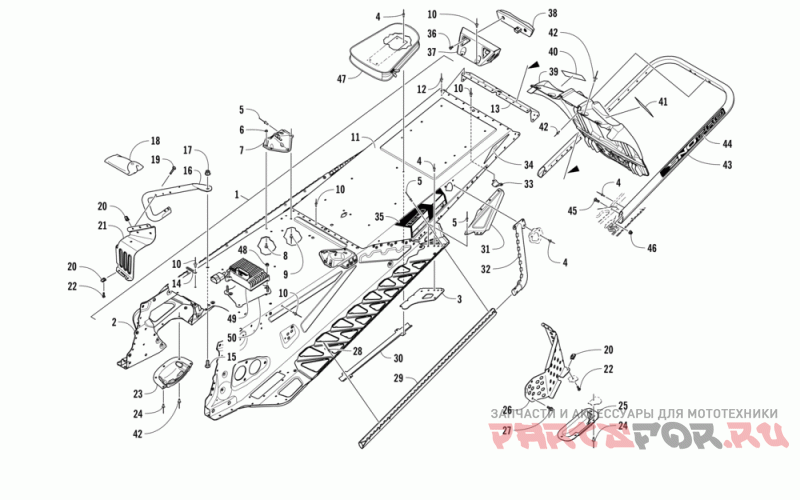

Тунель ,задний бампер и брызговик

Arctic Cat ZR 4000 SNO PRO 129 GREEN

Arctic Cat
#oem кодцена
-
1707-823
Chassis, 128" 2 Strk-assy
1
1707-912
Tunnel, Hp-s/p Assy (inc. 2-13)
2
1707-981
Tunnel, Front-f-sp Assy (inc. 3-4)
3
0607-992
Brkt, Rear Susp-outer-rh
3
0607-993
Brkt, Rear Susp-outer-lh
4
8060-686
Заклепка (10 шт в упак.)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-644
Brkt, Spar Support-rh-mach
7
1707-645
Brkt, Spar Support-lh-mach
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-682
Заклепка (20 шт в упаковке)
11
1607-250
Tunnel, Rear-128"
12
8060-482
Rivet, Blind-dh Ss52 Zinc (20 Per Pack)
13
1607-104
Close Off, Tunnel-mc
14
1623-984
Зажим (2 шт в упаковке)
15
8476-820
Винт M8x1.25x20
16
1707-454
Hook, Toe-rh Ptd Blk
16
1707-455
Hook, Toe-lh Ptd Blk
17
8427-802
Гайка M8x1.25
18
0744-076
Kit, Tool Bag-2 Stroke-assy
19
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
0607-996
Toe Stop, Rh - Formed
21
0607-997
Toe Stop, Lh - Formed
22
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
23
1607-109
Protector, Chain Case
24
8061-708
Заклепка -черная (отпуск по 10 шт )
25
0607-351
Protector, Brake Disc-bottom
26
1607-371
Cover, Shield-brake Disc
27
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
28
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
29
1607-092
Edge, Running Board-mach
30
0630-308
Protector, Taillight Harness-128"
31
1607-162
Gusset, Running Board-rh
31
1607-163
Gusset, Running Board-lh
32
1607-040
Gusset, Tunnel-rh
32
1607-041
Gusset, Tunnel-lh
33
0630-292
Protector, Taillight Harness-26.5mm
34
0621-990
Decal, Reflector-red
35
3621-340
Decal, Tunnel-rh 129"
35
3621-341
Decal, Tunnel-lh 129"
36
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
37
0630-328
Housing, Taillight
38
0609-898
Taillight, Red
39
6606-394
Flap, Snow-mtn-blk
40
5611-852
Наклейка предупреждения
41
5611-853
Наклейка предупреждения (английский)
42
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
43
2707-580
Bumper, Rear-129"-ptd-ta Grn
44
3621-339
Decal, Rear Bumper-"sno Pro"
45
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
46
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
47
6606-615
Bag, Belt
48
8422-602
Гайка, шестигранная-дв ныл M6x1.00
49
0630-246
Mod, Control-dc Reg/rev-08 F/t 2-strk
50
0730-223
Plate, Mtg-electrical-fabr
