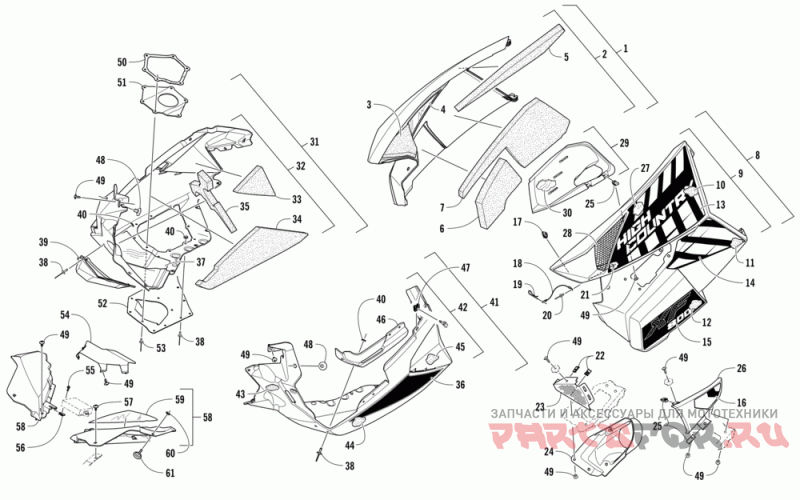

Поддон и обтекатели

Arctic Cat XF 8000 HIGH COUNTRY 141 ORANGE

Arctic Cat
#oem кодцена
1
5718-024
Panel,side-rh-blk W/decals(xf8 Hc) (inc. 2-7, 13-16, And 18-21)
2
3718-180
Panel, Side-rh With Foam-blk (2 Stroke) (inc. 3-7 And 18-21)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
5718-025
Panel, Side-lh-blk W/decals(xf8 Hc) (inc. 9-15 And 17-21)
9
4718-553
Panel, Side-lh-w/foam-blk (inc. 10-12 And 17-21)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-681
Foam, Lwr Side Panel-frt-lh
13
3621-158
Decal, Side Panel-upr Rh-"hc"
13
3621-159
Decal, Side Panel-upr Lh-"hc"
14
3621-168
Decal, Side Panel-lwr-rh
14
3621-169
Decal, Side Panel-lwr-lh
15
3621-166
Decal, Side Panel-fwd-rh "8000"
15
3621-167
Decal, Side Panel-fwd-lh "8000"
16
3621-160
Decal, Side Panel-mid-rh
16
3621-163
Decal, Side Panel-mid-lh Vent
17
1623-637
Clip, U-nut (m5) (4 Per Pack)
18
0607-447
Трос шпильки
19
0605-283
Hairpin, Cotter (5 Per Pack)
20
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
21
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
22
1623-052
Nut, U (2 Per Pack)
23
6606-925
Решетка заборная
24
2602-794
Duct, Intake-inner
25
1623-030
Гайка (6 шт в упаковке)
26
2602-793
Duct, Intake-outer-blk
27
0619-206
Теплозащитная фольга
28
5706-531
Screen, Side Panel-upr Lh-ptd Blk
29
1702-369
Duct, Air-clutch W/foil (inc. 30)
30
6606-694
Foil, Clutch Duct-2 Stroke
31
5718-048
Plate, Skid-rh-w/decal (inc. 32-40)
32
5718-028
Plate,skid-rh-orn-w/foam (dsi) (inc. 33-35, 37-38, And 40)
33
0617-640
Foam, Skid Plate-rear-rh
34
0617-638
Foam, Skid Plate-middle-rh
35
0617-636
Foam, Skid Plate-frt-rh
36
3621-172
Decal, Skid-lwr Rh
36
3621-173
Decal, Skid-lwr Lh
37
2612-970
Foil, Skid Plate-rh
38
8061-708
Заклепка -черная (отпуск по 10 шт )
39
1712-963
Deflector, Exhaust Outlet-ptd Blk
40
0123-802
Шайба (отпускается по 4 шт)
41
5718-049
Plate,skid-lh-w/decal (inc. 36, 38, 40, And 42-46)
42
4718-543
Plate,skid-orn-lh W/foam (inc. 38, 40, And 43-46)
43
0617-637
Foam, Skid Plate-frt-lh
44
0617-639
Foam, Skid Plate-middle-lh
45
0617-641
Foam, Skid Plate-rear-lh
46
6606-613
Retainer, Tab-side Panel
47
2623-005
Clip, Receptacle-1/4 Turn Stud
48
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
49
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
50
2612-972
Plate, Exhaust Outlet
51
2612-971
Seal, Exhaust Outlet-cwi
52
1712-963
Deflector, Exhaust Outlet-ptd Blk
53
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
54
6606-295
Shield, Heat-ecu
55
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
56
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
57
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
58
6606-342
Panel, Filler-rh-blk
58
3718-303
Panel, Filler W/foil-lh (inc. 59)
59
6606-405
Foil, Protective-filler Panel-lh
60
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
61
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
