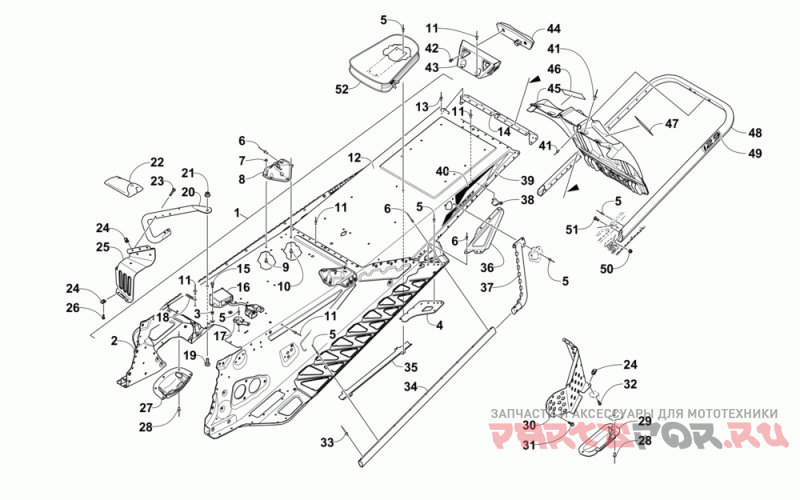

Тунель ,задний бампер и брызговик

Arctic Cat ZR 9000 SNO PRO 129 Orange (US)

Arctic Cat
#oem кодцена
-
1707-995
Chassis, 128 4 Strk-s/p Assy
1
1707-912
Tunnel, Hp-s/p Assy (inc. 2-14)
2
1707-981
Tunnel, Front-f-sp Assy (inc. 3-5)
3
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
4
0607-992
Brkt, Rear Susp-outer-rh
4
0607-993
Brkt, Rear Susp-outer-lh
5
8060-686
Заклепка (10 шт в упак.)
6
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
7
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
8
1707-644
Brkt, Spar Support-rh-mach
8
1707-645
Brkt, Spar Support-lh-mach
9
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
10
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
11
8060-682
Заклепка (20 шт в упаковке)
12
1607-250
Tunnel, Rear-128"
13
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
14
1607-104
Close Off, Tunnel-mc
15
8408-516
Винт M5x0.8x16 (4 шт в упаковке)
16
0630-288
Регулятор ,3-фазный-40а
17
0645-709
Clip, Battery Cable (2 Per Pack)
18
1623-984
Зажим (2 шт в упаковке)
19
8476-820
Винт M8x1.25x20
20
1707-454
Hook, Toe-rh Ptd Blk
20
1707-455
Hook, Toe-lh Ptd Blk
21
8427-802
Гайка M8x1.25
22
0744-088
Kit, Tool Bag-4 Stroke-assy
23
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
0607-996
Toe Stop, Rh - Formed
25
0607-997
Toe Stop, Lh - Formed
26
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
1607-371
Cover, Shield-brake Disc
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
33
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
1607-092
Edge, Running Board-mach
35
0630-308
Protector, Taillight Harness-128"
36
1607-162
Gusset, Running Board-rh
36
1607-163
Gusset, Running Board-lh
37
1607-040
Gusset, Tunnel-rh
37
1607-041
Gusset, Tunnel-lh
38
0630-292
Protector, Taillight Harness-26.5mm
39
0621-990
Decal, Reflector-red
40
2621-596
Decal, Tunnel-zr 9000 Orn Rh
40
2621-597
Decal, Tunnel-zr 9000 Orn Lh
41
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
42
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
43
0630-328
Housing, Taillight
44
0609-898
Taillight, Red
45
6606-394
Flap, Snow-mtn-blk
46
5611-852
Наклейка предупреждения
47
5611-853
Наклейка предупреждения (английский)
48
2707-581
Bumper, Rear-129"-ptd-orn
49
2621-296
Decal, Rear Bumper-129" Orn
50
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
51
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
52
6606-615
Bag, Belt
