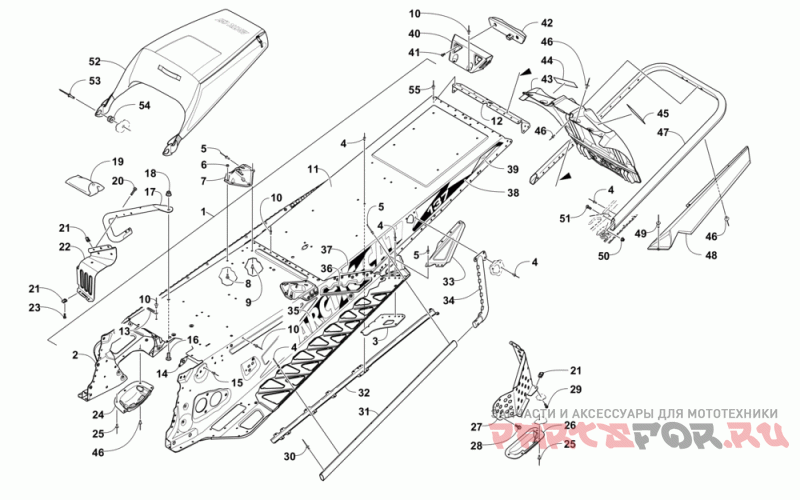

Тунель ,задний бампер и брызговик

Arctic Cat ZR 9000 LTD 137 Black (US), Green (US)

Arctic Cat
#oem кодцена
-
2707-554
Chassis, 137" 4 Strk-assy Ptd Team Arc Gr
-
2707-240
Chassis, 137 4 Strk-s/p Assy-ptd Blk
1
2707-916
Tunnel, 137-s/p Assy-ptd Team Arc Grn (inc. 2-13)
1
2707-239
Tunnel, Xf-137-s/p Assy-ptd Blk (inc. 2-13)
2
2707-917
Tunnel, Front-137-s/p Assy-ptd Ta Grn (inc. 3-4)
2
2707-238
Tunnel, Front-xf137-s/p Assy-ptd Blk (inc. 3-4)
3
2707-920
Brkt, Rear Susp-outer Rh-ptd Team Arc Grn
3
2707-244
Brkt, Rear Susp-outer-rh-ptd Blk
3
2707-921
Brkt, Rear Susp-outer Lh-ptd Team Arc Grn
3
2707-245
Brkt, Rear Susp-outer-lh-ptd Blk
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-340
Brkt, Spar Support-rh-ptd Ta Grn
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
2707-341
Brkt, Spar Support-lh-ptd Ta Grn
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-918
Tunnel, Rear-ptd Team Arc Grn
11
1707-838
Tunnel, Rear-141-ptd Blk
12
2707-315
End Cap, Tunnel-ptd Ta Grn
12
1707-725
End Cap, Tunnel-ptd Blk
13
1623-984
Зажим (2 шт в упаковке)
14
0608-631
Plate, Nut-pto-eng/chassis
15
8060-708
Заклепка (10 шт в упаковке)
16
8476-820
Винт M8x1.25x20
17
1707-454
Hook, Toe-rh Ptd Blk
17
1707-455
Hook, Toe-lh Ptd Blk
18
8427-802
Гайка M8x1.25
19
0744-088
Kit, Tool Bag-4 Stroke-assy
20
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
21
1623-637
Clip, U-nut (m5) (4 Per Pack)
22
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
22
1707-556
Toe Stop, Rh - Formed-ptd Blk
22
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
22
1707-557
Toe Stop, Lh - Formed-ptd Blk
23
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
24
1607-109
Protector, Chain Case
25
8061-708
Заклепка -черная (отпуск по 10 шт )
26
0607-351
Protector, Brake Disc-bottom
27
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn
27
2707-044
Cover, Shield-brake Disc-ptd Blk
28
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
29
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
30
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
31
2707-346
Edge, Running Board-ptd Ta Grn
31
1707-697
Edge, Running Board-ptd Blk
32
0630-309
Protector, Taillight Harness-141"
33
1707-734
Gusset, Running Board-rh Ptd Grn
33
1707-698
Gusset, Running Board-rh-ptd Blk
33
1707-735
Gusset, Running Board-lh Ptd Grn
33
1707-699
Gusset, Running Board-lh-ptd Blk
34
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
34
1707-700
Gusset, Tunnel-rh-ptd Blk
34
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
34
1707-701
Gusset, Tunnel-lh-ptd Blk
38
2621-443
Decal, Tunnel 1-137" Lh Blk (ltd)
35
2621-414
Decal, Tunnel 4-rh-grn (ltd)
35
2621-454
Decal, Tunnel 4-rh-blk (ltd)
35
2621-415
Decal, Tunnel 4-lh-grn (ltd)
35
2621-455
Decal, Tunnel 4-lh-blk (ltd)
36
2621-412
Decal, Tunnel 3-rh-grn (ltd)
36
2621-452
Decal, Tunnel 3-rh-blk (ltd)
36
2621-413
Decal, Tunnel 3-lh-grn (ltd)
36
2621-453
Decal, Tunnel 3-lh-blk (ltd)
37
2621-410
Decal, Tunnel 2-rh-grn (ltd)
37
2621-450
Decal, Tunnel 2-rh-blk (ltd)
37
2621-411
Decal, Tunnel 2-lh-grn (ltd)
37
2621-451
Decal, Tunnel 2-lh-blk (ltd)
38
2621-756
Decal, Tunnel 1-137" Rh-grn (ltd)
38
2621-442
Decal, Tunnel 1-137" Rh-blk (ltd)
38
2621-757
Decal, Tunnel 1-137" Lh-grn (ltd)
39
0621-990
Decal, Reflector-red
40
0730-230
Housing, Taillight-ptd Team Arc Grn
40
0730-227
Housing, Taillight-ptd Blk
41
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Decal, Warning-towing/track-french (english)
45
5611-853
Decal, Warning-towing/track-english (french)
46
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
47
2707-586
Bumper, Rear-137/141"-ptd-ta Grn
47
2707-584
Bumper, Rear-137"-ptd-blk Black
48
6606-870
Flare, Tunnel-rh Blk
48
6606-871
Flare, Tunnel-lh Blk
49
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
50
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
51
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
52
6606-600
Saddlebag, Rear
53
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
54
1623-940
Grommet, Seat Bag (4 Per Pack)
55
8060-482
Rivet, Blind-dh Ss52 Zinc (20 Per Pack)
