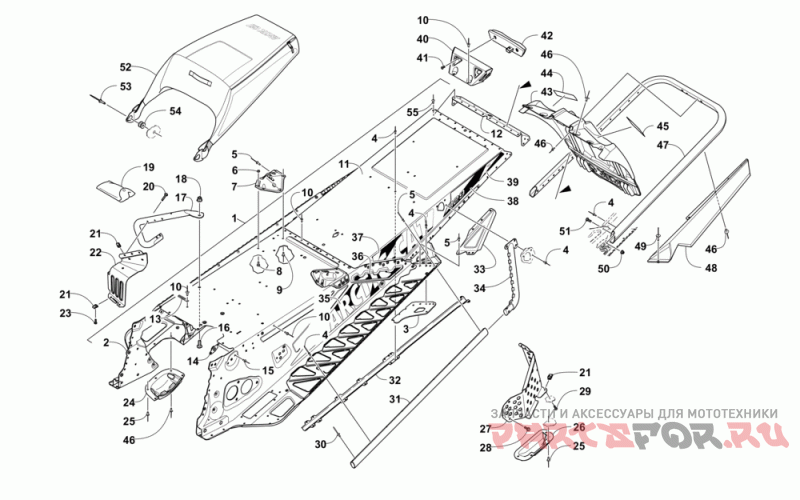

Тунель ,задний бампер и брызговик

Arctic Cat ZR 9000 129 LTD Green (US)

Arctic Cat
#oem кодцена
1
2707-812
Tunnel, Hp-s/p Assy-ptd Team Arc Grn (inc. 2-13)
2
2707-811
Tunnel, Front-assy-ptd Team Arc Grn (inc. 3-4)
3
2707-318
Brkt, Rear Susp-outer-rh-ptd Ta Grn
3
2707-319
Brkt, Rear Susp-outer-lh-ptd Ta Grn
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-736
Brkt, Spar Support-rh Ptd Grn
7
1707-737
Brkt, Spar Support-lh Ptd Grn
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-314
Tunnel, Rear-128-ptd Ta Grn
12
2707-315
End Cap, Tunnel-ptd Ta Grn
13
1623-984
Зажим (2 шт в упаковке)
14
0608-631
Plate, Nut-pto-eng/chassis
15
8060-708
Заклепка (10 шт в упаковке)
16
8476-820
Винт M8x1.25x20
17
1707-454
Hook, Toe-rh Ptd Blk
17
1707-455
Hook, Toe-lh Ptd Blk
18
8427-802
Гайка M8x1.25
19
0744-088
Kit, Tool Bag-4 Stroke-assy
20
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
21
1623-637
Clip, U-nut (m5) (4 Per Pack)
22
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
22
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
23
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
24
1607-109
Protector, Chain Case
25
8061-708
Заклепка -черная (отпуск по 10 шт )
26
0607-351
Protector, Brake Disc-bottom
27
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn
28
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
29
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
30
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
31
2707-346
Edge, Running Board-ptd Ta Grn
32
0630-308
Protector, Taillight Harness-128"
33
1707-734
Gusset, Running Board-rh Ptd Grn
33
1707-735
Gusset, Running Board-lh Ptd Grn
34
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
34
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
35
2621-414
Decal, Tunnel 4-rh-grn (ltd)
35
2621-415
Decal, Tunnel 4-lh-grn (ltd)
36
2621-412
Decal, Tunnel 3-rh-grn (ltd)
36
2621-413
Decal, Tunnel 3-lh-grn (ltd)
37
2621-410
Decal, Tunnel 2-rh-grn (ltd)
37
2621-411
Decal, Tunnel 2-lh-grn (ltd)
38
2621-408
Decal, Tunnel 1-129" Rh Grn (ltd)
38
2621-409
Decal, Tunnel 1-129" Lh Grn (ltd)
39
0621-990
Decal, Reflector-red
40
0730-230
Housing, Taillight-ptd Team Arc Grn
41
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Decal, Warning-towing/track-french (french)
45
5611-853
Decal, Warning-towing/track-english (english)
46
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
47
2707-580
Bumper, Rear-129"-ptd-ta Grn
48
6606-870
Flare, Tunnel-rh Blk
48
6606-871
Flare, Tunnel-lh Blk
49
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
50
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
51
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
52
6606-600
Saddlebag, Rear
53
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
54
1623-940
Grommet, Seat Bag (4 Per Pack)
