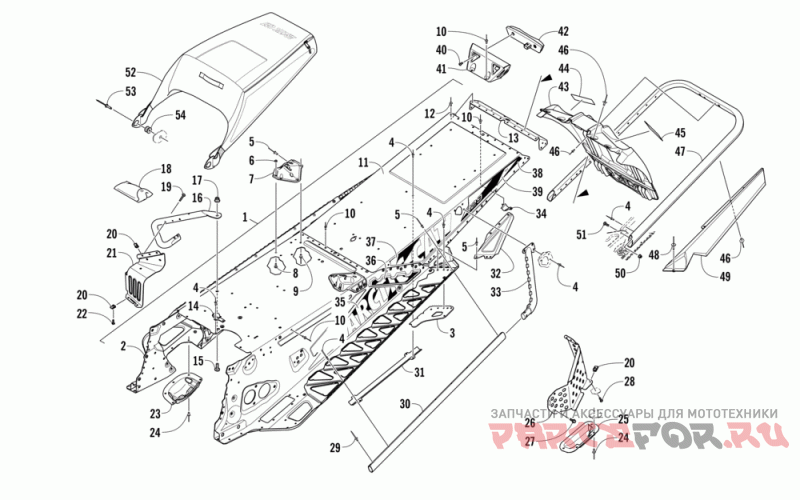

Тунель ,задний бампер и брызговик

Arctic Cat ZR 8000 SNO PRO LTD ES GREEN EARLY BUILD

Arctic Cat
#oem кодцена
-
2707-552
Chassis, 128" 2 Strk-ptd Team Arc Grn
3
2707-318
Brkt, Rear Susp-outer-rh-ptd Ta Grn
3
2707-319
Brkt, Rear Susp-outer-lh-ptd Ta Grn
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-124
Brkt, Spar Support-rh-ptd Team Arc Grn
7
2707-125
Brkt, Spar Support-lh-ptd Team Arc Grn
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-314
Tunnel, Rear-128-ptd Ta Grn
12
8060-482
Rivet, Blind-dh Ss52 Zinc (20 Per Pack)
13
2707-315
End Cap, Tunnel-ptd Ta Grn
14
0645-709
Clip, Battery Cable (2 Per Pack)
15
8476-820
Винт M8x1.25x20
16
1707-454
Hook, Toe-rh Ptd Blk Black
16
1707-455
Hook, Toe-lh Ptd Blk Black
17
8427-802
Гайка M8x1.25
18
0744-087
Kit, Tool Bag-2 Stroke-assy
19
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
21
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
22
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
23
1607-109
Protector, Chain Case
24
8061-708
Заклепка -черная (отпуск по 10 шт )
25
0607-351
Protector, Brake Disc-bottom
26
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn
27
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
28
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
29
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
30
2707-346
Edge, Running Board-ptd Ta Grn
31
0630-308
Protector, Taillight Harness-128"
32
2707-320
Gusset, Running Board-rh-ptd Ta Grn
32
2707-321
Gusset, Running Board-lh-ptd Ta Grn
33
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
33
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
34
0630-292
Protector, Taillight Harness-26.5mm
35
2621-414
Decal, Tunnel 4-rh-grn (ltd)
35
2621-415
Decal, Tunnel 4-lh-grn (ltd)
36
2621-412
Decal, Tunnel 3-rh-grn (ltd)
36
2621-413
Decal, Tunnel 3-lh-grn (ltd)
37
2621-410
Decal, Tunnel 2-rh-grn (ltd)
37
2621-411
Decal, Tunnel 2-lh-grn (ltd)
38
2621-408
Decal, Tunnel 1-129" Rh Grn (ltd)
38
2621-409
Decal, Tunnel 1-129" Lh Grn (ltd)
39
0621-990
Decal, Reflector-red Red
40
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
41
0730-230
Housing, Taillight-ptd Team Arc Grn Green
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Decal, Warning-towing/track-french (french) (french)
45
5611-853
Decal, Warning-towing/track-english (english)
46
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
47
2707-580
Bumper, Rear-129"-ptd-ta Grn Team Arctic Green
48
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
49
6606-870
Flare, Tunnel-rh Blk
49
6606-871
Flare, Tunnel-lh Blk
50
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
51
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
52
6606-600
Saddlebag, Rear
53
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
54
1623-940
Grommet, Seat Bag (4 Per Pack)
