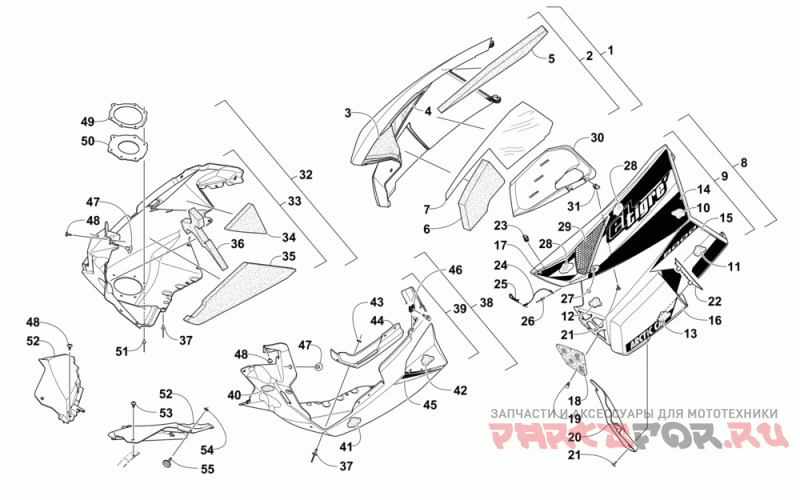

Поддон и обтекатели

Arctic Cat ZR 7000 EL TIGRE LTD 129 Black (US)

Arctic Cat
#oem кодцена
1
4718-752
Panel,side-rh W/decals (7000 Et) (inc. 2-7, 14-16, 23-26)
2
3718-312
Panel,side-rh With Foam-blk (4 Stroke) (inc. 3-7, 23-26)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
4718-753
Panel,side-lh W/decals (7000 Et) (inc. 9-18, 22-26)
9
4718-101
Panel,side-lh-w/foam-blk (inc. 10-13, 17,18, 22-26)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-631
Foam, Middle Side Panel-lh
13
0617-681
Foam, Lwr Side Panel-frt-lh
14
2621-638
Decal, Side Panel-upr Rh
14
2621-639
Decal, Side Panel-upr Lh
15
2621-632
Decal, Side Panel-rh 7000
15
2621-633
Decal, Side Panel-lh 7000
16
2621-642
Decal, Side Panel-fwd Rh "arctic Cat"
16
2621-643
Decal, Side Panel-fwd Lh "arctic Cat"
17
2621-640
Decal, Side Panel-upr Fwd Rh
17
2621-641
Decal, Side Panel-upr Fwd Lh
18
2602-704
Screen, Air Deflector
19
0623-269
Клипса - елочка (отпускается по 5 шт)
20
2602-711
Deflector, Air
21
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
22
2602-703
Retainer, Air Deflector
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
0607-447
Трос шпильки
25
0605-283
Hairpin, Cotter (5 Per Pack)
26
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
27
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
28
0619-206
Теплозащитная фольга
29
5706-531
Screen, Side Panel-upr Lh-ptd Blk
30
1702-369
Duct, Air-clutch W/foil
31
1623-030
Гайка (6 шт в упаковке)
32
4718-802
Plate, Skid-rh W/decal (7000 Et) (inc. 33-36 And 45)
33
3718-788
Plate, Skid-rear Rh W/foam (inc. 34-36)
34
0617-640
Foam, Skid Plate-rear-rh
35
0617-638
Foam, Skid Plate-middle-rh
36
0617-636
Foam, Skid Plate-frt-rh
37
8061-708
Заклепка -черная (отпуск по 10 шт )
38
4718-799
Plate, Skid-lh W/decal (et) (inc. 37 And 39-45)
39
3718-789
Plate, Skid-rear Lh W/foam (inc. 37 And 40-44)
40
0617-637
Foam, Skid Plate-frt-lh
41
0617-639
Foam, Skid Plate-middle-lh
42
0617-641
Foam, Skid Plate-rear-lh
43
0123-802
Шайба (отпускается по 4 шт)
44
6606-613
Retainer, Tab-side Panel
45
2621-644
Decal, Skid Plate-rh
45
2621-645
Decal, Skid Plate-lh
46
2623-005
Clip, Receptacle-1/4 Turn Stud
47
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
48
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
49
2612-685
Plate, Exhaust-outlet
50
2612-964
Seal, Exhaust Outlet-7000
51
8061-508
Заклепка ( отпускается по 10 шт)
52
6606-342
Panel, Filler-rh-blk
52
6606-579
Panel, Filler-lh Bk-z3
53
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
54
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
55
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
