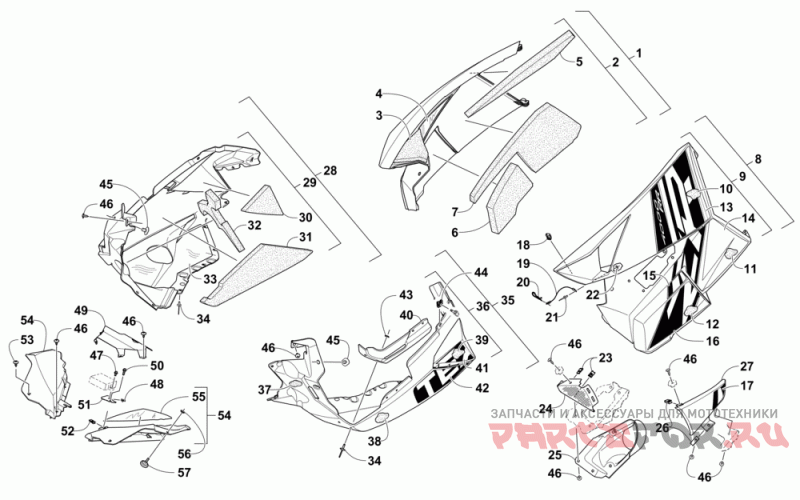

Поддон и обтекатели

Arctic Cat ZR 4000 RR GREEN Green (US), Green Intl (OS)

Arctic Cat
#oem кодцена
1
4718-788
Panel,side-rh W/decals(4000 Rr) (inc. 2-7,13-16, 19-22)
2
3718-858
Panel, Side-rh W/foam-ta Grn(2 Stroke) (inc. 3-7, 19-22)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
4718-789
Panel,side-lh W/decals(4000 Rr) (inc. 9-16, 18-22)
9
4718-577
Panel,side-lh W/foam-ta Grn (inc. 10-12, 18-22)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-681
Foam, Lwr Side Panel-frt-lh
13
2621-354
Decal, Side Panel-upr Rh-"4000"
13
2621-355
Decal, Side Panel-upr Lh-"4000"
14
2621-364
Decal, Side Panel-lwr Rh
14
2621-365
Decal, Side Panel-lwr Lh
15
2621-344
Decal, Side Panel-fwd Upr Rh
15
2621-345
Decal, Side Panel-fwd Upr Lh
16
2621-340
Decal, Side Panel-fwd Rh
16
2621-341
Decal, Side Panel-fwd Lh
17
2621-347
Decal, Side Panel-mid Vent-lh
18
1623-637
Clip, U-nut (m5) (4 Per Pack)
19
0607-447
Трос шпильки
20
0605-283
Hairpin, Cotter (5 Per Pack)
21
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
22
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
23
1623-052
Nut, U (2 Per Pack)
24
6606-925
Решетка заборная
25
2602-794
Duct, Intake-inner
26
1623-030
Гайка (6 шт в упаковке)
27
2602-801
Duct, Intake-outer-ta Grn
28
4718-810
Plate,skid-rh W/decal (4000 Rr) (inc. 29-33, 41-42)
29
4718-520
Plate, Skid-rh Zr 4000-w/foam (inc. 30-33)
30
0617-640
Foam, Skid Plate-rear-rh
31
0617-638
Foam, Skid Plate-middle-rh
32
0617-636
Foam, Skid Plate-frt-rh
33
6606-966
Foil, Protective-lwr Skid-rh
34
8061-708
Заклепка -черная (отпуск по 10 шт )
35
4718-801
Plate,skid-lh W/decal (rr) Black (inc. 34, 36-43)
36
3718-789
Plate,skid-rear Lh W/foam (inc. 34, 37-40, 43)
37
0617-637
Foam, Skid Plate-frt-lh
38
0617-639
Foam, Skid Plate-middle-lh
39
0617-641
Foam, Skid Plate-rear-lh
40
6606-613
Retainer, Tab-side Panel
41
2621-336
Decal, Skid-rear Rh
41
2621-337
Decal, Skid-rear Lh
42
2621-338
Decal, Skid-fwd Rh
42
2621-339
Decal, Skid-fwd Lh
43
0123-802
Шайба (отпускается по 4 шт)
44
2623-005
Clip, Receptacle-1/4 Turn Stud
45
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
46
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
47
8408-612
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y (5 Per Pack)
48
0423-577
Клипса (отпуск.по 5 шт)
49
6606-942
Shield, Heat-ecu
50
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
51
6606-941
Кронштейн
52
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
53
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
54
6606-342
Panel, Filler-rh-blk
54
3718-303
Panel, Filler W/foil-lh (inc. 55)
55
6606-405
Foil, Protective-filler Panel-lh
56
2623-001
Retainer, Pushnut-3/16" Stud Optional (4 Per Pack)
57
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg Optional (4 Per Pack)
