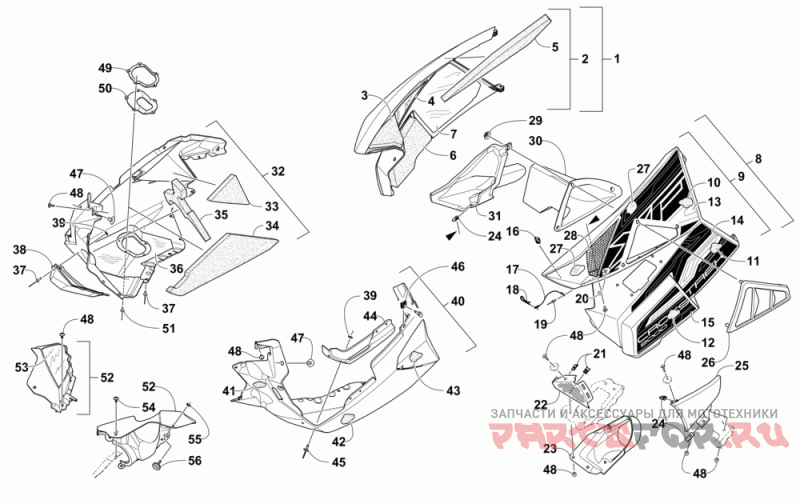

Поддон и обтекатели

Arctic Cat XF 9000 CROSSTREK 137 Orange (US), Orange Intl (OS)

Arctic Cat
#oem кодцена
1
4718-772
Panel,side-rh W/decals(9000 Crosstrek) (inc. 2-7, 13-15, And 17-20)
2
3718-312
Panel,side-rh With Foam-blk (4 Stroke) (inc. 3-7, And 17-20)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
4718-773
Panel, Side-lh W/decals(9000 Crosstrek) (inc. 9-20)
9
4718-557
Panel,side-lh-w/foam-blk Turbo (inc. 10-12, And 16-20)
10
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-681
Foam, Lwr Side Panel-frt-lh
13
2621-650
Decal, Side Panel-upr Rh
13
2621-653
Decal, Side Panel-upr Lh 9000
14
2621-664
Decal, Side Panel-lwr Rh
14
2621-665
Decal, Side Panel-lwr Lh
15
2621-662
Decal, Side Panel-fwd Rh 9000
15
2621-663
Decal, Side Panel-fwd Lh 9000
16
1623-637
Clip, U-nut (m5) (4 Per Pack)
17
0607-447
Трос шпильки
18
0605-283
Hairpin, Cotter (5 Per Pack)
19
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
20
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
21
1623-052
Nut, U (2 Per Pack)
22
6606-925
Решетка заборная
23
2602-794
Duct, Intake-inner
24
1623-030
Гайка (6 шт в упаковке)
25
2602-793
Duct, Intake-outer-blk
26
0608-648
Cover, Duct-heat-turbo
27
0619-206
Tape, Alum Foil - 6" X 30 Ft Optional
28
5706-531
Screen, Side Panel-upr Lh-ptd Blk Optional
29
1623-469
Гайка (отпуск.по 4 шт)
30
0708-596
Duct, Heat-turbo-routed
31
1702-367
Duct, Belt Cooling-4 Strk-routed
32
3718-422
Plate, Skid-rh-w/foam (inc. 33-39)
33
0617-640
Foam, Skid Plate-rear-rh
34
0617-638
Foam, Skid Plate-middle-rh
35
0617-636
Foam, Skid Plate-frt-rh
36
2612-850
Foil, Skid Plate-resonator
37
8061-708
Заклепка -черная (отпуск по 10 шт )
38
2612-754
Shield, Resonator-skid Plate
39
0123-802
Шайба (отпускается по 4 шт)
40
3718-789
Plate,skid-rear Lh W/foam (inc. 39, And 41-45)
41
0617-637
Foam, Skid Plate-frt-lh
42
0617-639
Foam, Skid Plate-middle-lh
43
0617-641
Foam, Skid Plate-rear-lh
44
6606-613
Retainer, Tab-side Panel
45
8061-708
Заклепка -черная (отпуск по 10 шт )
46
2623-005
Clip, Receptacle-1/4 Turn Stud
47
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
48
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
49
2612-796
Plate, Exhaust Outlet
50
2612-799
Seal, Exhaust Outlet-4 Strk
51
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
52
3718-302
Panel, Filler W/foil-rh (inc. 53)
52
6606-351
Panel, Filler-lh-turbo-blk
53
6606-404
Foil, Protective-filler Panel-rh
54
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
55
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
56
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
