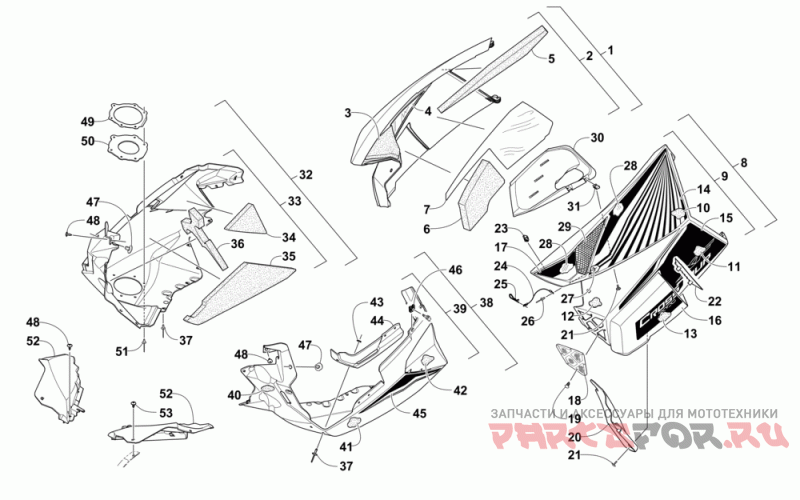

Поддон и обтекатели

Arctic Cat XF 7000 CROSS-TOUR Orange (US), Orange Intl (OS), Orange Early Build (EB)

Arctic Cat
#oem кодцена
1
4718-864
Panel,side-rh-blk W/decals (inc. 2-7, 14-17, 24-27)
2
3718-312
Panel,side-rh With Foam-blk (4 Stroke) (inc. 3-7, 24-27)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
4718-865
Panel,side-lh-blk W/decals (inc. 9-19, 23-27)
9
4718-101
Panel,side-lh-w/foam-blk (inc. 10-13, 18-19, 23-27)
10
0617-629
Foam, Upper Side Panel-rear-lh
11
0617-635
Foam, Lwr Side Panel-rear-lh
12
0617-631
Foam, Middle Side Panel-lh
13
0617-681
Foam, Lwr Side Panel-frt-lh
14
2621-856
Decal, Side Panel-upper-rh
14
2621-857
Decal, Side Panel-upper-lh
15
2621-858
Decal, Side Panel-lower-rh
15
2621-859
Decal, Side Panel-lower-lh
16
2621-860
Decal, Side Panel-fwd-rh
16
2621-861
Decal, Side Panel-fwd-lh
17
2621-866
Decal, Side Panel-upper-fwd-rh
17
2621-867
Decal, Side Panel-upper-fwd-lh
18
2602-704
Screen, Air Deflector
19
0623-269
Клипса - елочка (отпускается по 5 шт)
20
2602-711
Deflector, Air
21
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
22
2602-703
Retainer, Air Deflector
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
0607-447
Трос шпильки
25
0605-283
Hairpin, Cotter (5 Per Pack)
26
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
27
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
28
0619-206
Tape, Alum Foil - 6" X 30 Ft Optional
29
5706-531
Screen, Side Panel-upr Lh-ptd Blk Optional
30
1702-369
Duct, Air-clutch W/foil
31
1623-030
Гайка (6 шт в упаковке)
32
4718-866
Plate,skid-rear-rh W/decals (inc. 33-36, 45)
33
3718-788
Plate, Skid-rear Rh W/foam (inc. 34-36)
34
0617-640
Foam, Skid Plate-rear-rh
35
0617-638
Foam, Skid Plate-middle-rh
36
0617-636
Foam, Skid Plate-frt-rh
37
8061-708
Заклепка -черная (отпуск по 10 шт )
38
4718-867
Plate,skid-rear-lh W/decals (inc. 37, 39-45)
39
3718-789
Plate,skid-rear Lh W/foam (inc. 37, 40-45)
40
0617-637
Foam, Skid Plate-frt-lh
41
0617-639
Foam, Skid Plate-middle-lh
42
0617-641
Foam, Skid Plate-rear-lh
43
0123-802
Шайба (отпускается по 4 шт)
44
6606-613
Retainer, Tab-side Panel
45
2621-862
Decal, Skid Plate-rh
45
2621-863
Decal, Skid Plate-lh
46
2623-005
Clip, Receptacle-1/4 Turn Stud
47
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
48
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
49
2612-685
Plate, Exhaust-outlet
50
2612-964
Seal, Exhaust Outlet-7000
51
8061-508
Заклепка ( отпускается по 10 шт)
52
6606-342
Panel, Filler-rh-blk
52
6606-579
Panel, Filler-lh Bk-z3
53
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
