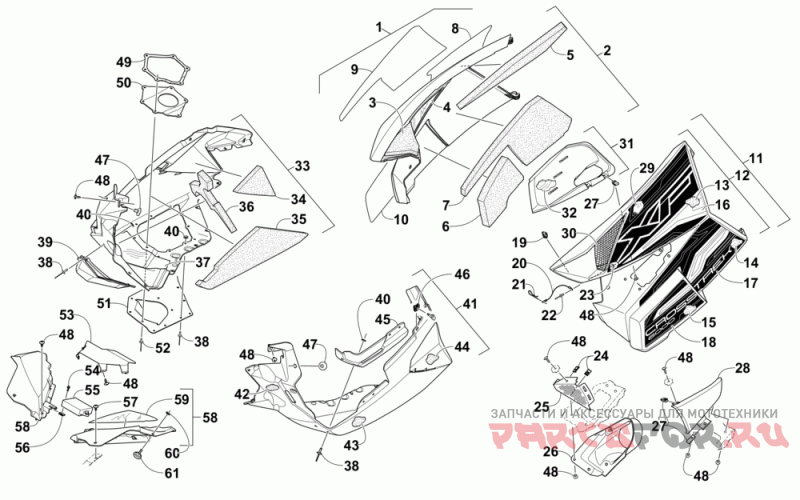

Поддон и обтекатели

Arctic Cat XF 6000 CROSSTREK ORANGE EARLY BUILD Orange Early Build (EB)

Arctic Cat
#oem кодцена
1
4718-766
Panel, Side-rh W/decals(6000 Crosstrek) Black (inc. 2-10)
2
3718-180
Panel, Side-rh With Foam-blk (2 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
2621-650
Decal, Side Panel-upr Rh
9
2621-664
Decal, Side Panel-lwr Rh
10
2621-656
Decal, Side Panel-fwd Rh 6000
11
4718-767
Panel, Side-lh W/decals(6000 Crosstrek) Black (inc. 12-18)
12
4718-553
Panel, Side-lh-w/foam-blk (inc. 13-15)
13
0617-629
Foam, Upper Side Panel-rear-lh
14
0617-635
Foam, Lwr Side Panel-rear-lh
15
0617-681
Foam, Lwr Side Panel-frt-lh
16
2621-651
Decal, Side Panel-upr Lh
17
2621-665
Decal, Side Panel-lwr Lh
18
2621-657
Decal, Side Panel-fwd Lh 6000
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
0607-447
Трос шпильки
21
0605-283
Hairpin, Cotter (5 Per Pack)
22
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
23
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
24
1623-052
Nut, U (2 Per Pack)
25
6606-925
Решетка заборная
26
2602-794
Duct, Intake-inner
27
1623-030
Гайка (6 шт в упаковке)
28
2602-793
Duct, Intake-outer-blk
29
0619-206
Tape, Alum Foil - 6" X 30 Ft Optional
30
5706-531
Screen, Side Panel-upr Lh-ptd Blk Optional
31
1702-369
Duct, Air-clutch W/foil (inc. 32)
32
6606-694
Foil, Clutch Duct-2 Stroke
33
4718-158
Plate, Skid-blk-rh W/foam (dsi) (inc. 34-40)
34
0617-640
Foam, Skid Plate-rear-rh
35
0617-638
Foam, Skid Plate-middle-rh
36
0617-636
Foam, Skid Plate-frt-rh
37
2612-970
Foil, Skid Plate-rh
38
8061-708
Заклепка -черная (отпуск по 10 шт )
39
2612-754
Shield, Resonator-skid Plate
40
0123-802
Шайба (отпускается по 4 шт)
41
3718-789
Plate, Skid-rear Lh W/foam (inc. 42-45)
42
0617-637
Foam, Skid Plate-frt-lh
43
0617-639
Foam, Skid Plate-middle-lh
44
0617-641
Foam, Skid Plate-rear-lh
45
6606-613
Retainer, Tab-side Panel
46
2623-005
Clip, Receptacle-1/4 Turn Stud
47
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
48
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
49
2612-972
Plate, Exhaust Outlet
50
2612-971
Seal, Exhaust Outlet-cwi
51
1712-963
Deflector, Exhaust Outlet-ptd Blk
52
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
53
6606-940
Shield, Heat-ecu
54
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
55
0730-246
Ecm, Programmed-9t/2.86p 6dsi
56
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
57
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
58
6606-342
Panel, Filler-rh-blk
58
3718-303
Panel, Filler W/foil-lh (inc. 59)
59
6606-405
Foil, Protective-filler Panel-lh
60
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
61
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
