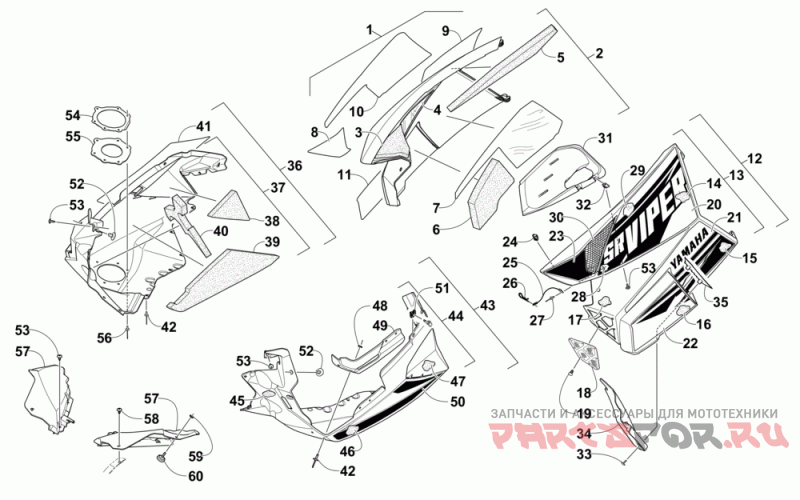

Поддон и обтекатели

Arctic Cat SR VIPER M-TX LE BLUE EARLY BUILD

Arctic Cat
#oem кодцена
1
4718-886
Panel, Side-rh Wht W/decals (srviper16) White (inc. 2-11)
2
3718-454
Panel, Side-rh Wht-w/foam-4 Strk (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
2621-682
Decal, Side Panel Fwd Upr Rh
9
2621-702
Decal, Side Panel Upr Rh
10
2621-704
Decal, Side Panel Lwr Rh
11
2621-706
Decal, Side Panel Fwd Rh
12
4718-887
Panel, Side-lh-w/decals (srviper Se Eb16) White (inc. 13-23)
13
4718-103
Panel, Side-lh-w/foam-wht (inc. 14-19)
14
0617-629
Foam, Upper Side Panel-rear-lh
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
0617-631
Foam, Middle Side Panel-lh
18
2602-704
Screen, Air Deflector
19
0623-269
Клипса - елочка (отпускается по 5 шт)
20
2621-703
Decal, Side Panel Upr Lh
21
2621-705
Decal, Side Panel Lwr Lh
22
2621-707
Decal, Side Panel Fwd Lh
23
2621-683
Decal, Side Panel Fwd Upr Lh
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
0607-447
Трос шпильки
26
0605-283
Hairpin, Cotter (5 Per Pack)
27
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
28
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
29
0619-206
Теплозащитная фольга
30
5706-532
Cowl, Headlight-4strk Blk-routed
31
1702-369
Duct, Air-clutch W/foil
32
1623-030
Гайка (6 шт в упаковке)
33
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
34
2602-711
Deflector, Air
35
2602-703
Retainer, Air Deflector
36
4718-890
Plate, Skid-rh W/decal (srviper Le Blu) Blue (inc. 37-41)
37
4718-888
Plate, Skid-rear Rh W/foam Blue (inc. 38-40)
38
0617-640
Foam, Skid Plate-rear-rh
39
0617-638
Foam, Skid Plate-middle-rh
40
0617-636
Foam, Skid Plate-frt-rh
41
2621-708
Decal, Skid Plate Rh
42
8061-708
Заклепка -черная (отпуск по 10 шт )
43
4718-893
Plate, Skid-lh W/decal (srviper Le Blu) Blue (inc. 44-50)
44
4718-891
Plate, Skid-rear Lh W/foam Blue (inc. 45-49)
45
0617-637
Foam, Skid Plate-frt-lh
46
0617-639
Foam, Skid Plate-middle-lh
47
0617-641
Foam, Skid Plate-rear-lh
48
0123-802
Шайба (отпускается по 4 шт)
49
6606-613
Retainer, Tab-side Panel
50
2621-709
Decal, Skid Plate Lh
51
2623-005
Clip, Receptacle-1/4 Turn Stud
52
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
53
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
54
2612-685
Plate, Exhaust-outlet
55
2612-964
Seal, Exhaust Outlet-7000
56
8061-508
Заклепка ( отпускается по 10 шт)
57
6606-342
Panel, Filler-rh-blk
57
6606-579
Panel, Filler-lh Bk-z3
58
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
59
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
60
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
