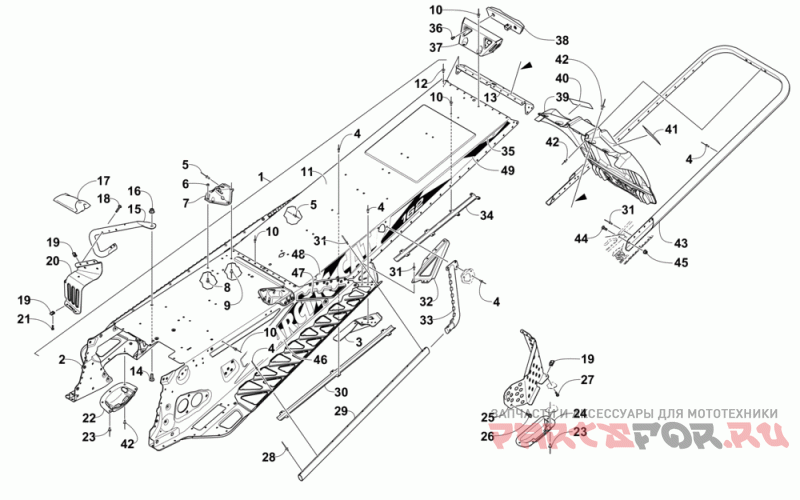

Тунель ,задний бампер и брызговик

Arctic Cat M 8000 LTD 162 Black (US), Green (US)

Arctic Cat
#oem кодцена
2707-009
Chassis, 162" Hcr-2 Strk-ptd Ta Grn
2707-094
Chassis, 162" Hcr-2 Strk-ptd Blk
1
2707-357
Tunnel, Mt-162 Hcr-s/p Assy-ptd Ta Grn (inc. 2-13)
1
2707-364
Tunnel, Mt-162-s/p Assy-ptd Blk (inc. 2-13)
2
2707-345
Tunnel, Front-assy-ptd Ta Grn (inc. 3-4)
2
2707-294
Tunnel, Front-assy-ptd Blk (inc. 3-4)
3
2707-342
Brkt, Rear Susp-outer-rh-ptd Ta Grn
3
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk
3
2707-343
Brkt, Rear Susp-outer-lh-ptd Ta Grn
3
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk
4
8060-686
Rivet, Blind-dh Ss64 Zinc Green (10 Per Pack)
4
8060-706
Rivet, Blind-dh Ss64 Blk Black (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-340
Brkt, Spar Support-rh-ptd Ta Grn
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
2707-341
Brkt, Spar Support-lh-ptd Ta Grn
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-682
Rivet, Blind-dh Ss62 Zinc Green (20 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk Black (25 Per Pack)
11
2707-355
Tunnel, Rear-162 Hcr-ptd Ta Grn
11
2707-159
Tunnel, Rear-162" Hcr-ptd Blk
12
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
13
2707-315
End Cap, Tunnel-ptd Ta Grn
13
1707-725
End Cap, Tunnel-ptd Blk
14
8476-820
Винт M8x1.25x20
15
1707-454
Hook, Toe-rh Ptd Blk
15
1707-455
Hook, Toe-lh Ptd Blk
16
8427-802
Гайка M8x1.25
17
0744-090
Kit, Tool Bag-2 Stroke-assy
18
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
20
1707-556
Toe Stop, Rh - Formed-ptd Blk
20
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
20
1707-557
Toe Stop, Lh - Formed-ptd Blk
21
8470-516
Screw, Mach-tspnh M5x.8x16 Cl8.8 Z&y (2 Per Pack)
22
1607-109
Protector, Chain Case
23
8061-708
Заклепка -черная (отпуск по 10 шт )
24
0607-351
Protector, Brake Disc-bottom
25
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn
25
2707-044
Cover, Shield-brake Disc-ptd Blk
26
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
27
8470-520
Screw, Mach-tspnh M5x.8x20 Cl8.8 Z&y (4 Per Pack)
28
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
29
2707-346
Edge, Running Board-ptd Ta Grn
29
1707-697
Edge, Running Board-ptd Blk
30
0630-307
Protector, Taillight Harness-153/162"
31
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
32
2707-336
Gusset, Running Board-rh-ptd Ta Grn
32
2707-288
Gusset, Running Board-rh-ptd Blk
32
2707-337
Gusset, Running Board-lh-ptd Ta Grn
32
2707-289
Gusset, Running Board-lh-ptd Blk
33
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
33
1707-700
Gusset, Tunnel-rh-ptd Blk
33
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
33
1707-701
Gusset, Tunnel-lh-ptd Blk
34
0630-280
Protector, Taillight Harness-448.5mm
35
0621-990
Decal, Reflector-red
36
8470-510
Screw, Mach-tspnh M5x.8x10 Cl8.8 Z&y (5 Per Pack)
37
0730-230
Housing, Taillight-ptd Team Arc Grn
37
0730-227
Housing, Taillight-ptd Blk
38
0609-898
Taillight, Red
39
6606-394
Flap, Snow-mtn-blk
40
5611-852
Наклейка предупреждения
41
5611-853
Наклейка предупреждения (английский)
42
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
43
2707-598
Bumper, Rear-162"-ptd-ta Grn
43
2707-596
Bumper, Rear-162"-ptd-blk
44
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
45
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
46
2621-414
Decal, Tunnel 4-rh-grn (ltd)
46
2621-454
Decal, Tunnel 4-rh-blk (ltd)
46
2621-415
Decal, Tunnel 4-lh-grn (ltd)
46
2621-455
Decal, Tunnel 4-lh-blk (ltd)
47
2621-412
Decal, Tunnel 3-rh-grn (ltd)
47
2621-452
Decal, Tunnel 3-rh-blk (ltd)
47
2621-413
Decal, Tunnel 3-lh-grn (ltd)
47
2621-453
Decal, Tunnel 3-lh-blk (ltd)
48
2621-410
Decal, Tunnel 2-rh-grn (ltd)
48
2621-450
Decal, Tunnel 2-rh-blk (ltd)
48
2621-411
Decal, Tunnel 2-lh-grn (ltd)
48
2621-451
Decal, Tunnel 2-lh-blk (ltd)
49
2621-460
Decal, Tunnel 1-162-rh-grn (ltd)
49
2621-448
Decal, Tunnel 1-162-rh-blk (ltd)
49
2621-461
Decal, Tunnel 1-162-lh-grn (ltd)
49
2621-449
Decal, Tunnel 1-162-lh-blk (ltd)
