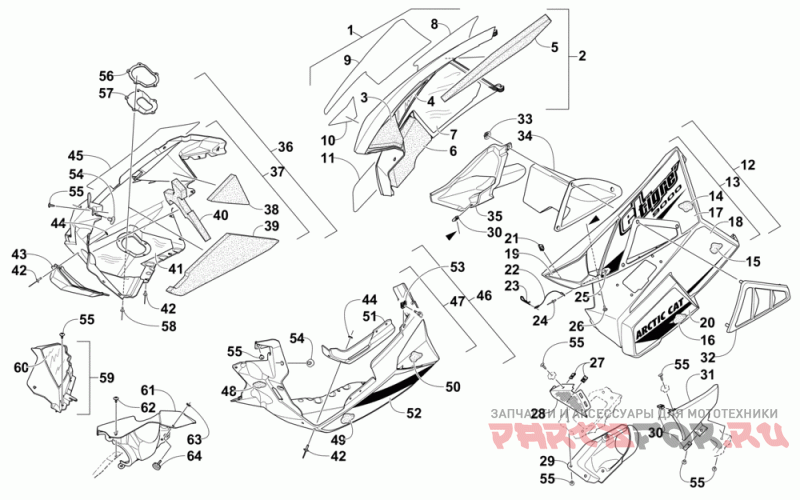

Поддон и обтекатели

Arctic Cat ZR 9000 EL TIGRE EARLY BUILD GREEN

Arctic Cat
#oem кодцена
1
4718-248
Panel, Side-rh Blk W/decals (9 Et) (inc. 2-11)
2
3718-312
Panel, Side-rh With Foam-blk (4 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
1621-380
Decal, Side Panel-upr Rh "9000"
9
1621-382
Decal, Side Panel-lwr Rh
10
1621-388
Decal, Side Panel-fwd Rh
11
1621-384
Decal, Side Panel-fwd Rh "arctic Cat"
12
4718-249
Panel, Side-lh Blk W/decals (9 Et) (inc. 13-20)
13
4718-557
Panel, Side-lh-w/foam-blk Turbo (inc. 14-16)
14
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
1621-381
Decal, Side Panel-upr Lh "9000"
18
1621-383
Decal, Side Panel-lwr Lh
19
1621-389
Decal, Side Panel-fwd Lh
20
1621-385
Decal, Side Panel-fwd Lh "arctic Cat"
21
1623-637
Clip, U-nut (m5) (4 Per Pack)
22
0607-447
Трос шпильки
23
0605-283
Hairpin, Cotter (5 Per Pack)
24
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
25
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
26
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
27
1623-052
Nut, U (2 Per Pack)
28
6606-925
Решетка заборная
29
2602-794
Duct, Intake-inner
30
1623-030
Гайка (6 шт в упаковке)
31
2602-793
Duct, Intake-outer-blk
32
0608-648
Cover, Duct-heat-turbo
33
1623-469
Гайка (отпуск.по 4 шт)
34
0708-596
Duct, Heat-turbo-routed
35
1702-367
Duct, Belt Cooling-4 Strk-routed
36
4718-102
Plate, Skid-blk-rh-w/decal(8/9 Et) (inc. 37-45)
37
3718-422
Plate, Skid-rh-w/foam (inc. 38-44)
38
0617-640
Foam, Skid Plate-rear-rh
39
0617-638
Foam, Skid Plate-middle-rh
40
0617-636
Foam, Skid Plate-frt-rh
41
2612-850
Foil, Skid Plate-resonator
42
8061-708
Заклепка -черная (отпуск по 10 шт )
43
2612-754
Shield, Resonator-skid Plate
44
0123-802
Шайба (отпускается по 4 шт)
45
1621-386
Decal, Skid Plate-rh
46
4718-253
Plate, Skid-blk-lh-w/decal(6/8/9 Et) (inc. 47-52)
47
3718-789
Plate, Skid-rear Lh W/foam (inc. 48-51)
48
0617-637
Foam, Skid Plate-frt-lh
49
0617-639
Foam, Skid Plate-middle-lh
50
0617-641
Foam, Skid Plate-rear-lh
51
6606-613
Retainer, Tab-side Panel
52
1621-387
Decal, Skid Plate-lh
53
2623-005
Clip, Receptacle-1/4 Turn Stud
54
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
55
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
56
2612-796
Plate, Exhaust Outlet
57
2612-799
Seal, Exhaust Outlet-4 Strk
58
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
59
3718-302
Panel, Filler W/foil-rh (inc. 60)
60
6606-404
Foil, Protective-filler Panel-rh
61
6606-351
Panel, Filler-lh-turbo-blk
62
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
63
2623-001
Retainer, Pushnut-3/16" Stud Optional (4 Per Pack)
64
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg Optional (4 Per Pack)
