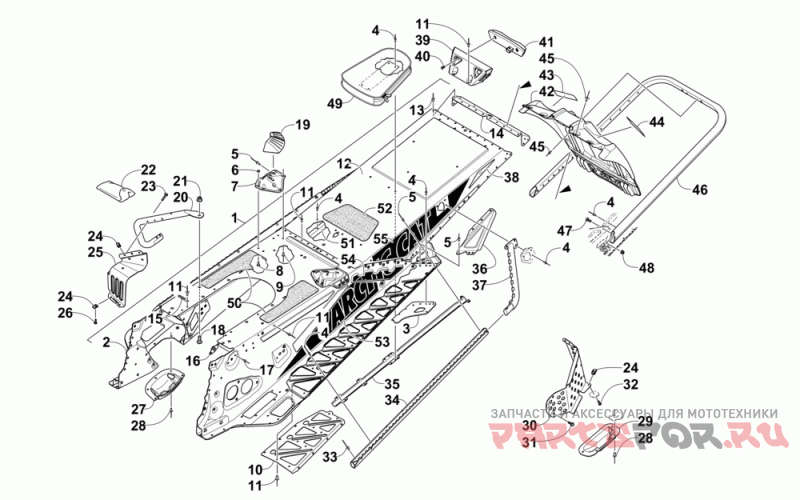

Тунель ,задний бампер и брызговик

Arctic Cat ZR 7000 SNO PRO RR EARLY BUILD GREEN

Arctic Cat
#oem кодцена
-
2707-230
Chassis, 128" 4 Strk 5 Rr-ptd Ta Grn
1
2707-431
Tunnel, Zr7 Rr-s/p Assy-ptd Ta Grn (inc. 2-14)
2
2707-429
Tunnel, Front-zr7 Rr-s/p Assy-ptd Ta Grn (inc. 3-4)
3
2707-318
Brkt, Rear Susp-outer-rh-ptd Ta Grn
3
2707-319
Brkt, Rear Susp-outer-lh-ptd Ta Grn
4
8060-686
Заклепка (10 шт в упак.)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-340
Brkt, Spar Support-rh-ptd Ta Grn
7
2707-341
Brkt, Spar Support-lh-ptd Ta Grn
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
2707-316
Support, Running Board-rh-ptd Ta Grn
10
2707-317
Support, Running Board-lh-ptd Ta Grn
11
8060-682
Заклепка (20 шт в упаковке)
12
2707-428
Tunnel, Rear-128"-ptd Ta Grn
13
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
14
2707-315
End Cap, Tunnel-ptd Ta Grn
15
1623-984
Зажим (2 шт в упаковке)
16
0608-631
Plate, Nut-pto-eng/chassis
17
8060-688
Заклепка (отпускается по 10 шт)
18
8476-820
Винт M8x1.25x20
19
6606-664
Mount, Fuel Tank-rubber-rh
19
6606-665
Mount, Fuel Tank-rubber-lh
20
1707-454
Hook, Toe-rh Ptd Blk
20
1707-455
Hook, Toe-lh Ptd Blk
21
8427-802
Гайка M8x1.25
22
0744-079
Kit, Tool Bag-4 Strk Rr-assy
23
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
25
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
26
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
33
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
2707-132
Edge, Running Board-rh Ptd Team Arc Grn
34
2707-133
Edge, Running Board-lh Ptd Team Arc Grn
35
0630-315
Protector, Taillight Harness-128"
36
2707-320
Gusset, Running Board-rh-ptd Ta Grn
36
2707-321
Gusset, Running Board-lh-ptd Ta Grn
37
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
37
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
38
0621-990
Decal, Reflector-red
39
0730-230
Housing, Taillight-ptd Team Arc Grn Green
40
8470-510
Винт M5x1.0x10 (отпуск.по 5 шт)
41
0609-898
Taillight, Red
42
6606-394
Flap, Snow-mtn-blk
43
5611-852
Наклейка предупреждения
44
5611-853
Наклейка предупреждения (английский)
45
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
46
2707-433
Bumper, Rear-128"-ptd Blk
47
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
48
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
49
6606-615
Bag, Belt
50
6606-814
Pad, Fuel Tank Mount-rh
50
6606-815
Pad, Fuel Tank Mount-lh
51
1607-454
Protector, Tunnel-lasered 128"
52
6606-816
Pad, Tunnel-fuel Tank
53
1621-344
Decal, Tunnel-"arctic Cat" Rh 3
53
1621-345
Decal, Tunnel-"arctic Cat" Lh 3
54
1621-342
Decal, Tunnel-"arctic Cat" Rh 2
54
1621-343
Decal, Tunnel-"arctic Cat" Lh 2
55
1621-340
Decal, Tunnel-"arctic Cat" Rh 1
55
1621-341
Decal, Tunnel-"arctic Cat" Lh 1
