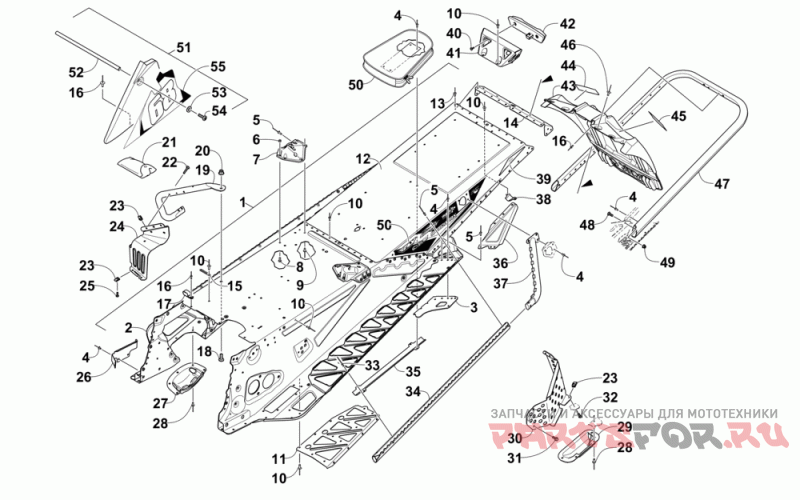

Тунель ,задний бампер и брызговик

Arctic Cat ZR 6000 TUCKER HIBBERT RR BLACK

Arctic Cat
#oem кодцена
-
1707-930
Chassis-128" 2 Strk Rr-ptd Blk
1
2707-178
Tunnel, Hp-rr S/p Assy-ptd Blk (inc. 2-14)
2
2707-177
Tunnel, Front-rr S/p Assy-ptd Blk (inc. 3-4)
3
1707-916
Brkt, Rear Susp-outer Rh-ptd Blk
3
1707-917
Brkt, Rear Susp-outer Lh-ptd Blk
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk
7
1707-693
Brkt, Spar Support-lh-ptd Blk
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-172
Support, Running Board-rh-ptd Blk
11
2707-173
Support, Running Board-lh-ptd Blk
12
1707-835
Tunnel, Rear-128-ptd Blk
13
8060-504
Заклепка (цена за шт.(20шт в упаковке)
14
1707-725
End Cap, Tunnel-ptd Blk
15
1623-984
Зажим (2 шт в упаковке)
16
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
17
1623-762
Зажим
18
8476-820
Винт M8x1.25x20
19
1707-454
Hook, Toe-rh Ptd Blk
19
1707-455
Hook, Toe-lh Ptd Blk
20
8427-802
Гайка M8x1.25
21
0744-078
Kit, Tool Bag-2 Strk Rr-assy
22
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
1707-556
Toe Stop, Rh - Formed-ptd Blk
24
1707-557
Toe Stop, Lh - Formed-ptd Blk
25
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
26
0608-705
Brkt, Routing-oil Line
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
2707-044
Cover, Shield-brake Disc-ptd Blk
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
33
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
2707-170
Roll, Tunnel-rh-ptd Blk
34
2707-171
Roll, Tunnel-lh-ptd Blk
35
0630-308
Protector, Taillight Harness-128"
36
1707-698
Gusset, Running Board-rh-ptd Blk
36
1707-699
Gusset, Running Board-lh-ptd Blk
37
1707-700
Gusset, Tunnel-rh-ptd Blk
37
1707-701
Gusset, Tunnel-lh-ptd Blk
38
0630-292
Protector, Taillight Harness-26.5mm
39
0621-990
Decal, Reflector-red
40
8470-510
Винт M5x1.0x10 (отпуск.по 5 шт)
41
0730-227
Housing, Taillight-ptd Blk
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Наклейка предупреждения
45
5611-853
Наклейка предупреждения (английский)
46
2707-433
Bumper, Rear-128"-ptd Blk
47
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
48
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
49
6606-615
Bag, Belt
50
2621-208
Наклейка прав.
50
2621-209
Наклейка лев.
51
4718-505
Kit, Number Plate-w/decal (inc. Six No. 16 And 52-55)
52
6606-698
Tube, Mounting - Number Plate
53
8450-108
Washer, Flat M6-6.87x25.4x2.3 Z&c (2 Per Pack)
54
8468-616
Screw, Mach-tspnh M6x1.0x16 Cl8.8 Blk (4 Per Pack)
55
2621-206
Decal, Number Plate-rh
55
2621-207
Decal, Number Plate-lh
